Defoamer Anti Foaming Performance Tester 90-100ml/Min Automatic Timing GB/T 26527

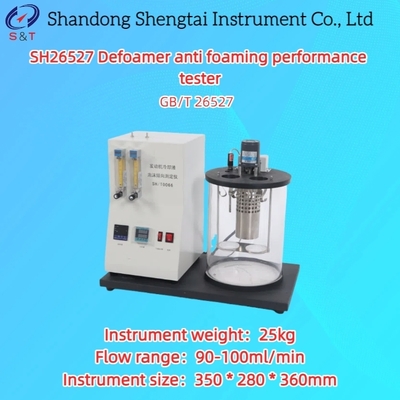

SH26527 Defoamer anti foaming performance tester

The SH26527 defoamer anti foaming performance tester is designed according to the requirements specified in the GB/T 26527-2011 organic silicon defoamer standard, and is suitable for testing the anti foaming performance of emulsion defoamers and organic silicon defoamers according to the measurement method specified in the GB/T26527 standard.

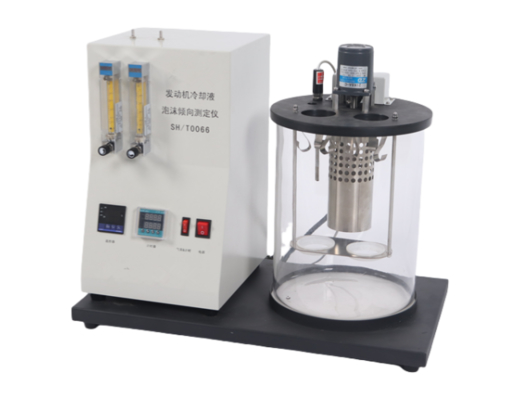

The instrument consists of a glass bath, an electric control box, an electric heater, an intelligent digital temperature controller, a single-chip timer, two 500ml heat-resistant glass measuring cylinders, two gas flow meters, and two sets of gas diffusion heads.

Technical Parameter

● Working power supply: AC220V 50Hz

● Heating power: 2000W

● Air flow: controlled by precision flowmeter

● Flow range: 90-100ml/min

● Temperature control range: Room temperature ～ 99.9 ℃

● Timing method: automatic timing, can be set by oneself

● Environmental temperature: -10 ～ +40 ℃

● Relative humidity: ≤ 85%

● Instrument size: 350 * 280 * 360mm

● Instrument weight: 25kg

● Packaging size: 600 * 480 * 580mm

● Packaging weight: 31kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
