Fully Automatic Paraffin Saybolt Color Analyzer 360-780nm ASTM D156

  • Fully Automatic Paraffin Saybolt Color Analyzer 360-780nm ASTM D156
  • Fully Automatic Paraffin Saybolt Color Analyzer 360-780nm ASTM D156
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification ASTM D156 GB/T3555 NF M 07-003 GB/T 605-2006
Model Number SH810B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 Sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Conditions D/0 (scattered Light Source, 0 Degree Observation Angle) Sensor Dual Path Sensing Array Sensor
Wavelength Range 360-780nm Wavelength Interval 10nm
Half Bandwidth 5nm Measurement Range 0 ～ 200%
Highlight

fully automatic paraffin color analyzer

,

saybolt color analyzer ASTM D156

,

paraffin testing instrument 360-780nm
Leave a Message
Product Description
Fully Automatic Paraffin Saibo Characteristic Analyzer Wavelength 360-780nm ASTM D156
Product Specifications
Attribute Value
Measurement conditions d/0 (scattered light source, 0 degree observation angle)
Sensor Dual path sensing array sensor
Wavelength range 360-780nm
Wavelength interval 10nm
Half bandwidth 5nm
Measurement range 0 ～ 200%
Product Description

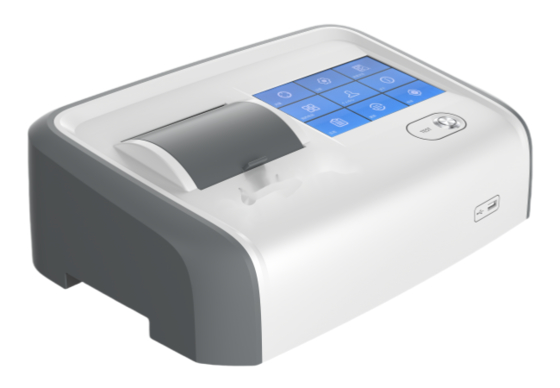

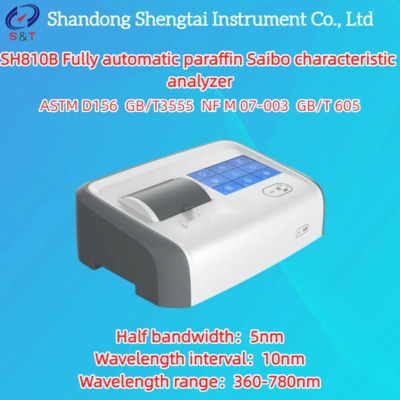

SH810B Fully automatic paraffin Saibo characteristic analyzer

The SH810B fully automatic paraffin Saibo characteristic analyzer is a specialized instrument for measuring the Saibo color of paraffin. It is controlled by a microcontroller touch screen and is suitable for laboratory and on-site use. Equipped with factory calibration and user-defined calibration functions, the sample pool is uniquely designed for easy measurement and maintenance.

  • General Method for Colorimetric Determination of Chemical Reagents GB/T 605-2006
  • Saybolt (ASTM D156, GB/T3555 NF M 07-003)
  • The color of jet fuel shall be determined according to the method specified in GB/T3555-1992
  • Adopting intelligent zero point calibration to ensure accurate measurement of △ E * ab ≤ 0.01
  • Specialized Paraffin Saybolt Colorimetric Plate: 100mm Colorimetric Plate
  • Fast measurement speed, single measurement only takes 1.5 seconds
  • Constant temperature sample bath: Room temperature -90 ℃, ensuring sample fluidity
  • Heating module: PTC heating module
  • 7-inch touch screen, providing friendly human-computer interaction, the instrument can store over 100000 pieces of data
  • It can also measure platinum cobalt index, Gardner, Saybolt color, etc.
  • The minimum liquid addition amount has been reduced to 1ml, with standard 10mm and 50mm colorimetric dishes, and 33mm colorimetric dishes (optional)
  • The ultra wide wavelength range is 360-780nm, which is higher than the spectral range of the human eye and expands the measurement range.
Fully Automatic Paraffin Saybolt Color Analyzer 360-780nm ASTM D156 0
Measurement conditions d/0 (scattered light source, 0 degree observation angle)
Single machine operation supported
Integral sphere Φ 40mm, Avian-D total diffuse reflection surface coating
Lighting source CLEDs (full band balanced LED light source)
Sensor Dual path sensing array sensor
Wavelength range 360-780nm
Wavelength interval 10nm
Half bandwidth 5nm
Measurement range 0 ～ 200%
Resolution 0.0001
Observer angle 2°/10°
Observing light source A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4
Display Saibo Characteristic Value
Measurement time ≤1.5s
Measuring optical path 100mm wide optical path
Color Space CIE Lab, LCh, CIE Luv, XYZ, Yxy, Transmittance, Hunter Lab Munsell, MI, CMYK
Color difference formula Δ E * ab, Δ E * CH, Δ E * uv, Δ E * cmc (2:1), Δ E * cmc (1:1), Δ E * 94, Δ E * 02
Repeatability Transmittance: standard deviation ≤ 0.08% Chromaticity value: Δ E * ab ≤ 0.01 standard deviation, maximum value ≤ 0.03
Inter station difference Δ E * ab ＜ 0.2
Heating function available
Heating temp range ambient temp ～ 90 ℃
Special function Intelligent zero calibration
Screen size 7-inch capacitive touch screen
Storage data Over 100000 pieces of data
Fully Automatic Paraffin Saybolt Color Analyzer 360-780nm ASTM D156 1

Sample colorimetric dish 100mm

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Quality Assurance
The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
The materials and main components provided meet the technical requirements specified in the technical documentation;
The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Standard Accessories
Number Name Quantity Unit Note
1 Fully automatic Cyber Characteristics Meter 1 Unit
2 Saybot color dish 2 Piece
3 power line 1 Set
4 Computer 1 Unit
5 Packing list 1 Copy
6 Certificate of Conformity Warranty Card 1 Copy
