Advanced Fully Automatic Oil Particle Counter Sampling 5～80mL/Min Photoresist Method ISO4406

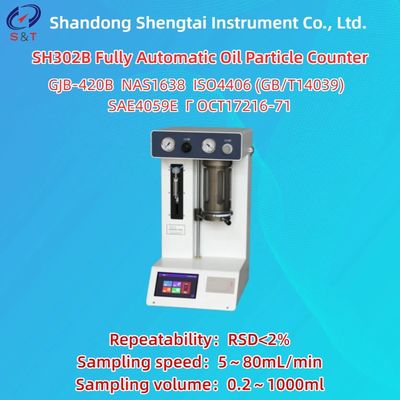

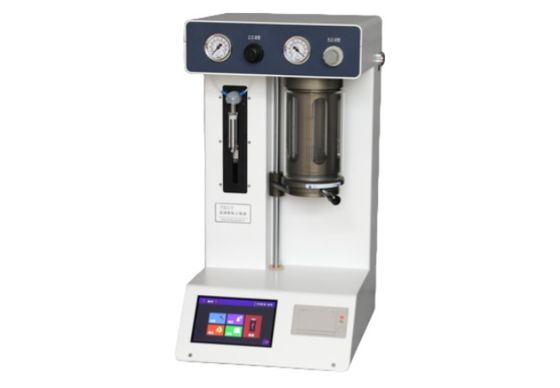

SH302B Fully Automatic Oil Particle Counter

The SH302B fully automatic oil particle counter is used to detect the size and quantity of solid particles in liquids, and can be widely applied in fields such as aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, and automobile manufacturing. It is used to detect solid particle pollution in hydraulic oil, lubricating oil, shale oil, transformer oil (insulation oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, and to detect insoluble particles in organic liquids and polymer solutions.

The fully automatic oil particle counter uses the "photoresistive method" to measure particles, and adopts the classic methods NAS1638 and ISO4406 in the oil industry. It can also be equipped with multiple standards according to user requirements. Precision syringe type sampling system achieves constant sampling speed and precise control of sampling volume. Positive/negative pressure sampling chamber device, realizing sample degassing and high viscosity sample detection. Large screen color LCD touch screen, graphical menu display, touch operation, simple and convenient.

Performance characteristics

● Adopting the counting principle of photoresist (shading) method developed by the International Hydraulic Standards Committee

● High precision laser sensor with a wide testing range, stable performance, low noise, and high resolution

● Adopting high-pressure injection pump sampling method, the sampling volume can be set by oneself, the injection speed is stable, and the sampling accuracy is high

● The injection system combining positive and negative pressure can achieve sample degassing and is suitable for testing samples with different viscosities

● Equipped with a built-in pressure sensor, it can set the pressure value and automatically determine the pressure inside the cabin to ensure safety

● Built in air purification system ensures that testing is not contaminated

● Built in multiple calibration curves, compatible with all commonly used domestic and international standards for calibration

● Built in multiple commonly used standards such as GJB-420B, NAS1638, ISO4406 (GB/T14039), SAE4059E, and Г OCT17216-71, support custom standard testing, and can set the required standards according to customer needs

● Built in data analysis system, one test can provide all standard test data and pollution levels

● The particle size can be set arbitrarily, with nearly 10000 built-in particle sizes for easy particle size analysis

● Various sampling containers such as standard sampling bottles or cups can be used to meet the testing requirements of different industries

● Fully functional automatic color touch screen operation, supporting both Chinese and English interfaces, easy and convenient to operate

● Can perform single channel and multi-channel calibration, achieving automatic calibration function

● Equipped with RS232 interface, it can be connected to a computer or laboratory platform for data processing

● It has massive data storage and printing functions, can store 1000 sets of data, and supports USB storage of data

Technical index

● Light source: semiconductor laser

● Particle size range: 0.8um～600um (depending on different sensors)

● Detection channel: 16 channels, freely set particle size

● Resolution: better than 10%

● Repeatability: RSD<2%

● Viscosity range: maximum 350cSt

● Sampling volume: 0.2～1000ml

● Sampling accuracy: better than ± 0.5%

● Sampling speed: 5～80mL/min

● Maximum vacuum in the pressure chamber: 0.08MPa

● Maximum positive pressure in the pressure chamber: 0.8 MPa

● Maximum particle concentration: 20000 particles/mL

● Power supply: 110~245V AC, 50Hz, 70W

● Dimensions: 340 * 410 * 650mm

● Weight: 15kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
