ASTM D665 Lube Oil Liquid Phase Rust Tester For Mixing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH123 | Power Supply | AC(220±10%)V, 50Hz |
---|---|---|---|
Temperature Control Range | (room Temp~100)℃ | Temperature Control Accuracy | ±1℃ |
Temperature Sensor | Pt100 | Temperature Display | LCD Display |
Temperature Control Heating Power | 600W | Auxiliary Heating Power | 1000W |
Rotate Speed Of Stirring Motor | 1400RPM | ||
High Light | automatic liquid phase rust tester,SH123 liquid phase rust tester,SH123 rust tester |

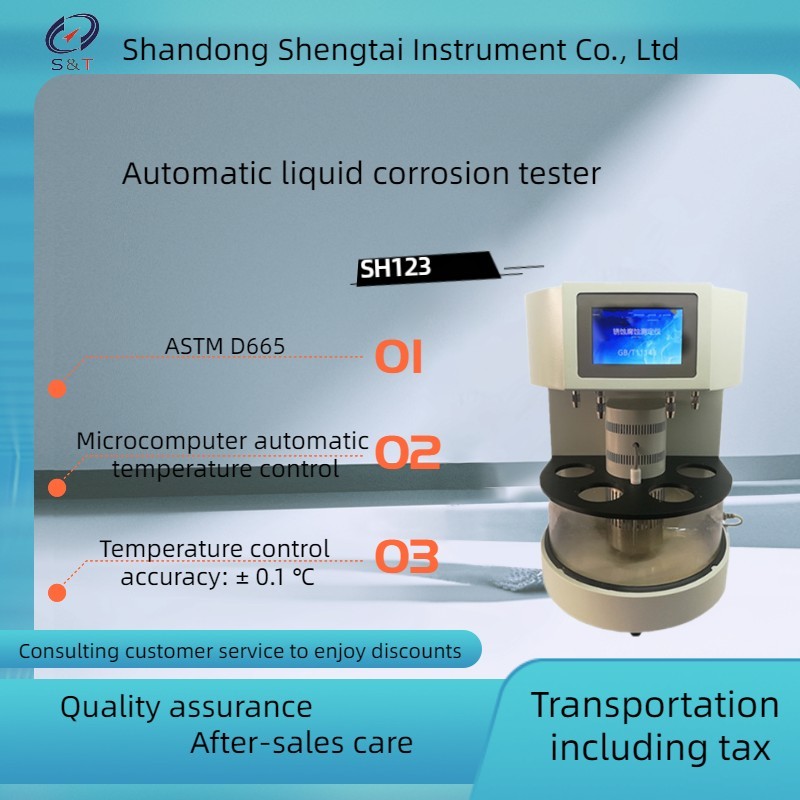

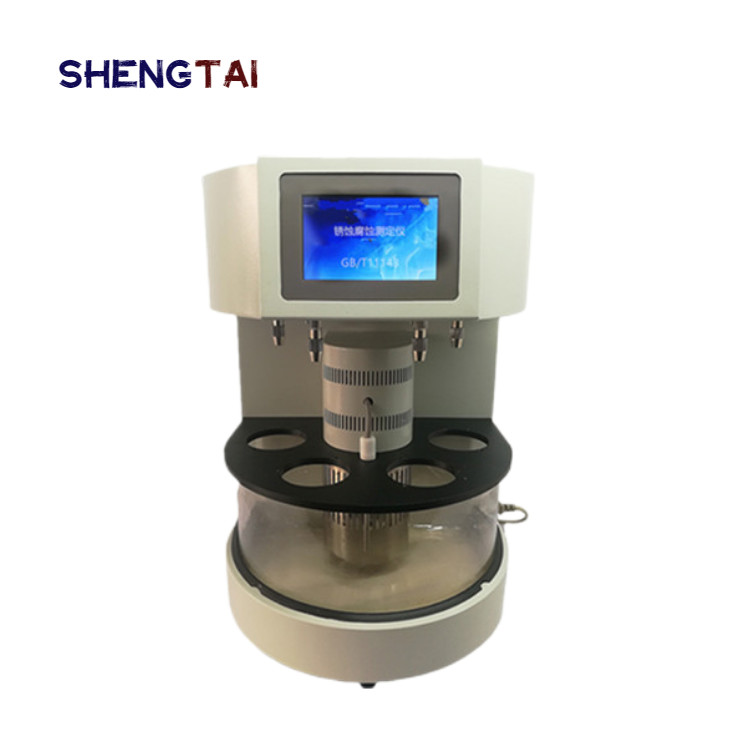

ASTM D665 Lube Oil Liquid Phase Corrosion/ Rust Preventing Characteristics TesterFour Separate Motors For Mixing
SH123 automatic liquid phase rust tester is designed in strict accordance with GB / T11143 standard, and is first used to evaluate the determination of adding inhibitor mineral oil and turbine oil during water mixing; the liquid phase rust tester is equally suitable for the determination of rust resistance of hydraulic oil and circulating oil.
Liquid phase rust tester can be widely used in electric power, petroleum, chemical industry, commercial inspection and scientific research departments.GB / T11143 ASTM D665 standard for determining metal corrosion ability and additive corrosion resistance in lubricating oil, hydraulic oil, steam turbine oil and other oils
Standard GB/T11143 ASTM D665 Standard for determining the corrosion resistance of lubricants, hydraulic oils, turbine oils and other oils to metals when containing water and for evaluating the corrosion resistance of additives
The main features
Adopt blue LCD large screen display, Chinese menu, no logo button.
Microcomputer automatic temperature control, automatic timing, intuitive and simple operation.
Four motors separately stirring, no noise, safe and reliable, compact size.
It can meet the needs of oil refineries, power plants and scientific research units, and is one of the essential instruments for oil analysis and quality inspection
Technical parameters
1 | Power supply | AC(220±10%)V, 50Hz |
2 | Temperature control range | (room temp~100)℃ |
3 | Temperature control accuracy | ±1℃ |
4 | Temperature sensor | Pt100 |
5 | Temperature display | LCD display |
6 | Timing range | 1min~24hour, can be setted at will |
7 | Time display | Digital display |
8 | Temperature control heating power | 600W |
9 | Auxiliary heating power | 1000W |
10 | Rotate speed of stirring motor | 1400RPM |
11 | Sample stir rate | (1000±50)r/min |
12 | Sample testing posiotions | Four positions |
13 | Ambient temperature | (0~45)℃ |
14 | Relative humidity | ≤85% |
15 | Maximum power consumption | 1800W |
16 |
Dimension: 500mm×330mm×750mm Weight: about 25kg
|
Temperature control mode: LCD screen digital display
Temperature control accuracy: ±0.1℃
Temperature control range: greenhouse ~ 100℃
Sample stirring: 1000±50 RPM
Temperature measuring element: platinum resistance (PT100)
Number of samples: 4 groups, can be used as 4 samples at the same time, can also choose to open any group of experiments according to their own situation, do not interfere with each other
Temperature control time: 0 ~ 100 hours arbitrarily set
Ambient temperature: 0℃ ~ 45℃
Ambient humidity: ≤85%
Power source: AC220V / 50 hz
External dimension: 500mm × 330mm × 750mm Weight: about 25kg
Required consumables: washing solvent;
Copper sheet and test steel rod with its own equipment, after use can choose or own.
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Beaker | 4 | piece | |
3 | Beaker lid | 4 | piece | |
4 | Test steel bar | 4 | piece | |
5 | Stirring rod | 4 | piece | |
6 | Alumina gauze | 6 | piece | |
7 | Power cord | 1 | piece | |
8 | Fuse tube | 1 | piece | |
9 | Instruction manual | 1 | copy | |
10 | Packing list | 1 | copy | |
11 | Certificate of qualification | 1 | copy |
