SH302A Portable Oil Particle Counter 0.8-500um Sampling Volume 0.2-1000ml ISO11171

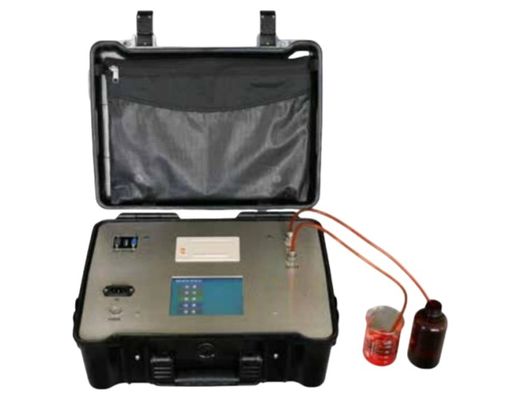

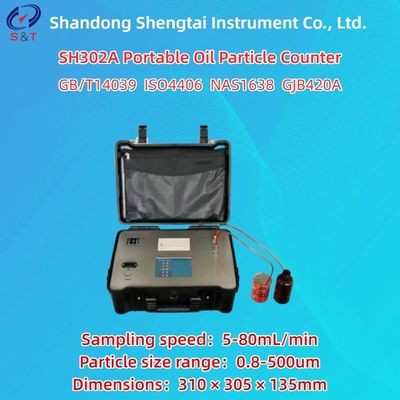

SH302A Portable Oil Particle Counter

The SH302A portable oil particle counter is a specialized instrument developed based on national and international standards such as GB/T 18854-2002 (ISO11171-1999) for detecting pollution levels in oil. Suitable for on-site and laboratory pollution testing of hydraulic oil, lubricating oil, shale oil, transformer oil (insulation oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil and other oils. It can be widely applied in fields such as aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, automobile manufacturing, etc.

Performance characteristics:

● Adopting the principle of light blocking method, it has the advantages of fast detection speed, strong anti-interference ability, high accuracy, and good repeatability.

● High precision sensors ensure high-resolution force and accuracy.

● Precision measurement sampling system, achieving constant sampling speed and sampling volume control.

● Color LCD screen display, touch screen operation.

● Built in GB/T14039,ISO4406,NAS1638,GJB420A,GJB420B,SAE749D,ГОСТ17216,AS4059D According to the particle pollution level standards, the required standards can be built in according to user requirements.

● Up to 990 particle size channels for easy particle size analysis.

● It can simultaneously store three calibration curves (ACFTD calibration curve, ISOMTD calibration curve, GOST calibration curve) and can be easily switched to reduce conversion errors.

● Equipped with a USB interface, the detection data can be stored on a USB flash drive.

● Equipped with a built-in printer, it can directly print out inspection reports.

● The instrument can achieve continuous automatic online detection and can set the detection interval time arbitrarily.

● It has a flushing function, and the flushing volume can be set arbitrarily.

● Adopting high-strength injection molded imported shell, the structure is compact, lightweight, and easy to carry.

● Adopting high-precision aluminum brushed panels, simple and beautiful, durable and long-lasting.

● RS232 or RS485 interface, can be connected to an external computer to complete the transmission, storage, and processing of detection data.

Technical indicators:

● Light source: semiconductor laser

● Particle size range: 0.8-500um

● Detection channel: 8 channels, freely set particle size

● Sampling volume: 0.2-1000ml

● Sampling accuracy: better than ± 1%

● Sampling speed: 5-80mL/min

● Counting accuracy: ± 10%

● Resolution: ≤ 10%

● Repeatability: RSD<2%

● Limit coincidence error: 10000 particles/mL

● Pressure range: High pressure 5-420bar, low pressure 0-6bar

● Viscosity range: ≤ 350cSt

● Power supply: AC100-240V, 50/60Hz

● Battery capacity: 5200mAh

● Running time: 6-8 hours

● Dimensions: 310 × 305 × 135mm

● Weight: 10kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
