Hydraulic Oil Hydrolysis Stability Test Chamber Room Temp -200 ℃ Speed 5r/Min ASTM D2619

Place of Origin China
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification SH/T 0301 ASTM D2619
Model Number SH0301
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Control Range Room Temperature -200 ℃ Temperature Control Accuracy ± 1 ℃
Rotation Speed 5r/min Test Unit 6 Test Bottles
Heating Method Stainless Steel Electric Heating Tube Heating Studio Size 450 × 450 × 350mm L * W * H
Highlight

ASTM D2619 Test Chamber

,

Hydrolysis Stability Test Chamber

,

Hydraulic Oil Hydrolysis Stability Tester

Leave a Message
Product Description

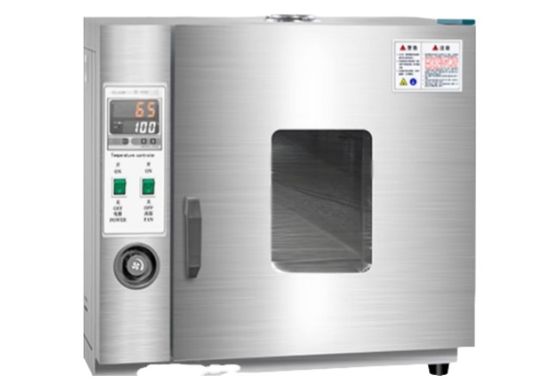

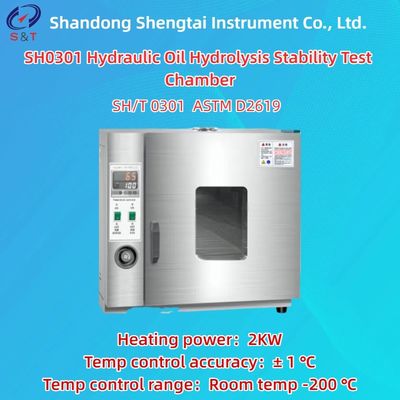

SH0301 Hydraulic Oil Hydrolysis Stability Test Chamber

SH0301 Hydraulic Oil Hydrolysis Stability Test Chamber, this instrument is manufactured in accordance with SH/T 0301 "Hydraulic Fluid Hydrolysis Stability Determination Method (Wine Bottle Method)" and ASTM D2619, and is suitable for determining the hydrolysis stability of hydraulic fluid using the glass bottle method. The hydraulic oil hydrolysis stability tester is suitable for measuring mineral oil and synthetic hydraulic fluids.

Performance characteristics:

● High precision high torque motor, DD direct drive, no transmission noise, capable of conducting 6 sets of tests simultaneously.

● Easy to install and disassemble rotating mechanism, with simple operation.

● High precision Pt100 temperature sensor, PID automatic temperature control, real-time display of temperature curve.

● Automatic timing, alarm prompt system when the time is up.

● The inner liner is made of stainless steel plate that has undergone anti-corrosion treatment and processing molding.

Technical parameters:

Heating method stainless steel electric heating tube heating
Heating power 2KW
Temperature control range Room temperature -200 ℃
Temperature control accuracy ± 1 ℃
Temperature control method PID temperature controller
Rotation speed 5r/min
Test unit 6 test bottles
Studio size 450 × 450 × 350mm L * W * H
Uniform temperature fan circulation
Test time digital timer
Sample prompt Sound prompt
Working power supply AC220V ± 10% 50HZ
Work environment

Relative humidity: <80%

Temperature: 0-45 ℃

Instrument size 550 * 550 * 450mm
Weight 30kg

Hydraulic Oil Hydrolysis Stability Test Chamber Room Temp -200 ℃ Speed 5r/Min ASTM D2619 0

● Heating method: stainless steel electric heating tube heating

● Heating power: 2KW

● Temperature control range: Room temperature -200 ℃

● Temperature control accuracy: ± 1 ℃

● Temperature control method: PID temperature controller

● Rotation speed: 5r/min

● Test unit: 6 test bottles

● Studio size: 450 × 450 × 350mm L * W * H

● Uniform temperature: fan circulation

● Test time: digital timer

● Sample prompt: Sound prompt

● Working power supply: AC220V ± 10% 50HZ

● Work environment:

Relative humidity: <80%

Temperature: 0-45 ℃

● Instrument size: 550 * 550 * 450mm

● Weight: 30kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Hydraulic Oil Hydrolysis Stability Test Chamber Room Temp -200 ℃ Speed 5r/Min ASTM D2619 1

Number Name Quantity Unit Note
1 Hydraulic oil hydrolysis stability test chamber 1 Unit
2 Rotating fixture 1 Set
3 Standard wine bottle 6 Piece
4 Cap 30 Piece
5 Capper 1 Piece
6 Power line 1 Root
7 Fuse 2 Piece 10A
8 Instructions 2 Copy
9 Packing list 1 Copy
10 Certificate of conformity 1 Copy
11 Delivery Inspection Report 1 Copy
