Vacuum Pump Hydraulic Oil Filtration Tester Work Pressure 86658pa Digital Timer SH/T0210

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTemperature Range | 0 ~ 80 ℃ | Filtration Method | Vacuum Pump |
---|---|---|---|
Work Pressure | 86658pa | Timing Range | 0 ~ 999 Hours |
Cooling Method | Compressor Cooling | Heating Method | Electric Heating Tube Heating |

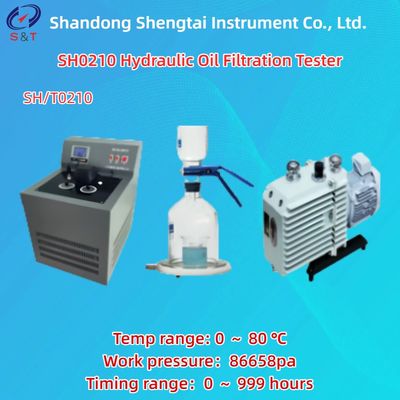

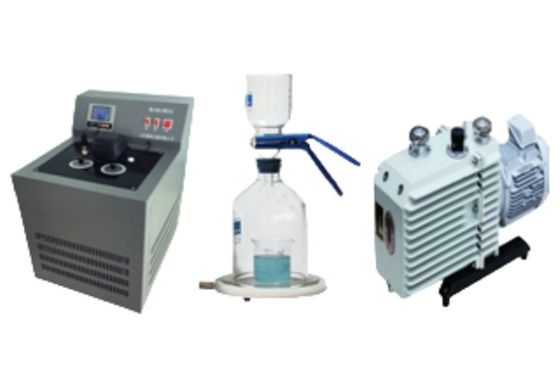

SH0210 Hydraulic Oil Filtration Tester
The SH0210 hydraulic oil filtration tester is valuable in evaluating the filtration performance of hydraulic oil. Due to the poor filtration performance of hydraulic oil in various industrial hydraulic systems and vehicle hydraulic systems, filter blockage is a serious problem. Especially when a small amount of water is mixed into the hydraulic system, the blockage of the hydraulic system filter becomes more severe, causing hydraulic transmission failure, wear and damage to the hydraulic pump and other components.
Main features
● Fully enclosed imported compressor refrigeration ensures the supply of cooling capacity;
● Specialized rotary vane vacuum pump, providing sufficient vacuum degree;
● Glass accessories meet the requirements of SH/T0210 standard;
● Digital display of time, easy to operate;
● Stainless steel constant temperature bath;
● The glass funnel has a scale on it;
● Precision regulator valve regulation, capable of controlling pressure within the range of 86658pa
● Microprocessed thermostat and PID control, digital temperature display, accuracy of 0.1 ℃, Pt100 RTD temperature probe;
● Working temperature range: room temperature ~ 80 ° C; safety measures to prevent overheating or low liquid level
Technical Parameter
Applicable standard | SH/T0210 |
Temperature range | 0 ~ 80 ℃ |
Filtration method | vacuum pump |
Work pressure | 86658pa |
Pressure regulation | pressure regulator valve |
Timing method | digital timer |
Timing range | 0 ~ 999 hours |
Working power supply | AC220V |
Cooling method | Compressor cooling |
Heating method | electric heating tube heating |
Temperature control method | digital PID temperature controller |
● Applicable standard: SH/T0210
● Temperature range: 0 ~ 80 ℃
● Filtration method: vacuum pump
● Work pressure: 86658pa
● Pressure regulation: pressure regulator valve
● Timing method: digital timer
● Timing range: 0 ~ 999 hours
● Working power supply: AC220V
● Cooling method: Compressor cooling
● Heating method: electric heating tube heating
● Temperature control method: digital PID temperature controller
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
