6 Holes Hydraulic Oil Thermal Stability Tester Digital Timer accuracy ± 1 ℃ SH/T0209

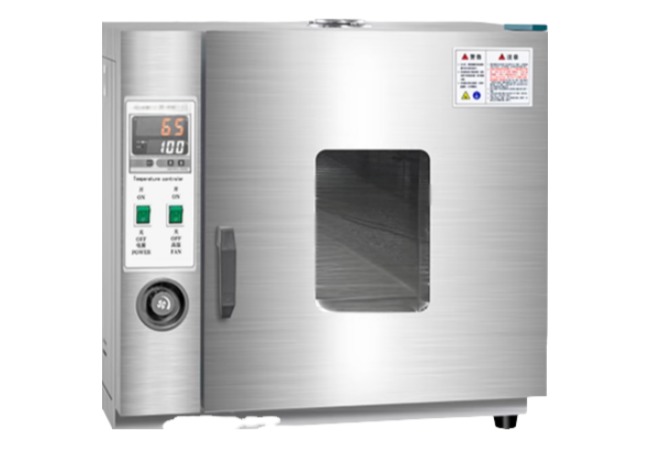

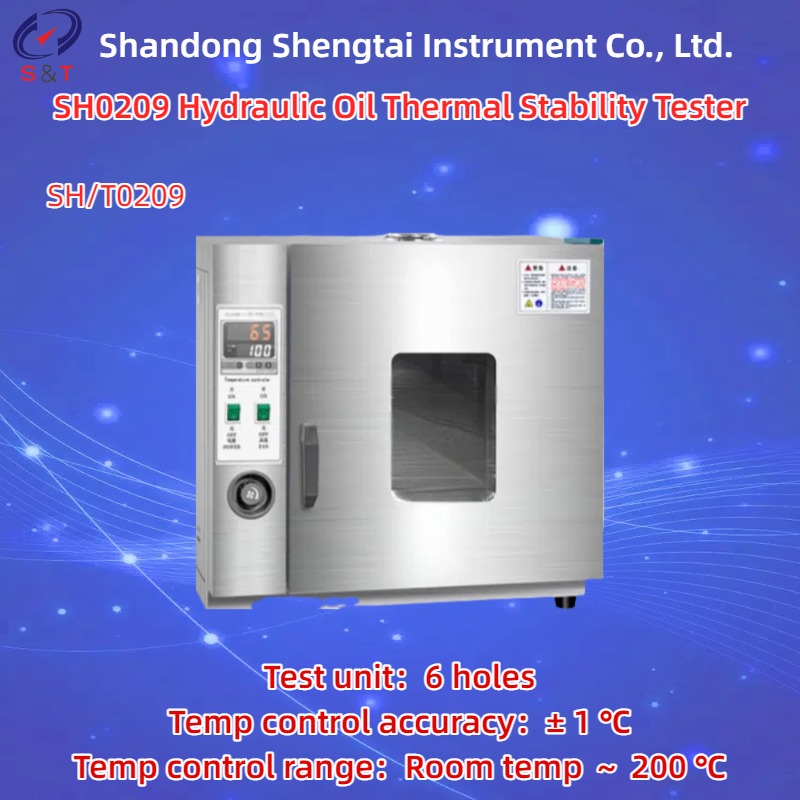

SH0209 Hydraulic Oil Thermal Stability Tester

SH0209 Hydraulic Oil Thermal Stability Tester, manufactured in accordance with SH/T0209 "Hydraulic Fluid Thermal Stability Measurement Method", is suitable for measuring mineral oil and synthetic hydraulic fluids.

Performance characteristics:

● This instrument adopts a digital PID program temperature controller. The temperature controller of this instrument adopts a dedicated non overshoot PID algorithm and PID self-tuning technology to ensure that the instrument does not overshoot or undertune, and the temperature control accuracy can reach ± 0.1 ℃.

● This instrument adopts a monolithic frame structure in appearance and has a large internal space. The shell is made of high-quality cold-rolled steel plate, and the surface is treated with spray coating technology, with a novel and beautiful appearance.

● The inner liner is made of stainless steel plate that has undergone anti-corrosion treatment and processing molding.

● The door of the box is embedded with high-temperature resistant rubber strips, which have good sealing and prevent heat loss.

● The rear of the studio is equipped with an exhaust outlet, which can discharge the moisture released by the heater out of the box at any time during operation. The temperature inside the box is forced to circulate by a fan to ensure temperature uniformity is controlled within ± 2.5%.

Technical parameters:

● Heating method: stainless steel electric heating tube heating

● Heating power: 2 KW

● Temperature control range: Room temperature ～ 200 ℃

● Temperature control accuracy: ± 1 ℃

● Temperature control method: Imported digital PID temperature controller

● Test unit: 6 holes

● Studio size: 550 × 450 × 550mm (L * W * H)

● Test time: digital timer

● Aluminum bath material: Material is A1-3 aluminum ingot

● Working power supply: AC220V ± 10% 50HZ

● Working environment: Relative humidity:<80% Temperature: 0-45 ℃

● Instrument size: 550 * 550 * 450mm

● Weight: 30kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
