SH126 Industrial Closed Type Gear Oil Foam Tester Temp Control 24 ± 0.5 ℃ ASTMD892

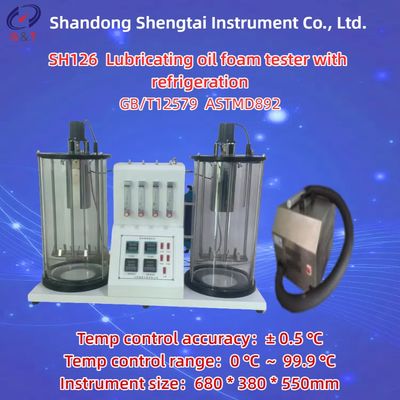

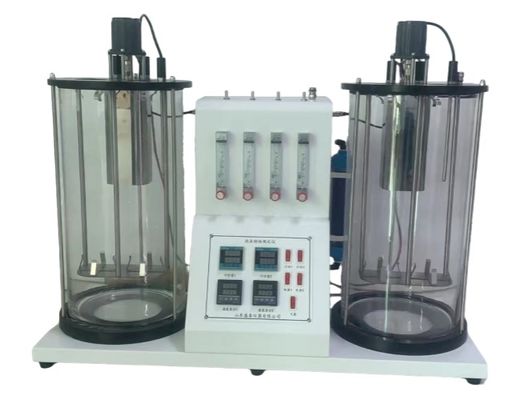

SH126 Lubricating oil foam tester (with refrigeration)

SH126 lubricating oil foam characteristic tester meets the requirements of GB/T12579 and ASTMD892. It is applicable to the determination of foam tendency and foam stability of lubricating oil under standard conditions. This instrument adopts a digital PID temperature automatic control system with high temperature control accuracy; The display adopts a high-definition color touch screen display, which provides intuitive and convenient human-machine dialogue; Automatic timing, gas supply, simple and practical experimental operation.

It is suitable for measuring the tendency and stability of foam formation of fire-resistant oil, lubricating oil, gear oil, hydraulic oil and other oil products. Automatic temperature control, automatic timing, centralized control of air source and gas flow, well-designed and aesthetically pleasing.

Technical parameters:

● Applicable standards: GB/T12579 ASTMD892 JIS K2518

● Timing method: automatic timing, accuracy ± 1S

● Temperature control range: 0 ℃ ～ 99.9 ℃

● Temperature control accuracy: ± 0.5 ℃

● Temperature control: 24 ± 0.5 ℃

● High temperature bath: 93.5 ± 0.5 ℃

● Flow control: 16-160ml/min float flowmeter, adjustable

● Air source: self-contained air source, 3L/min

● Gas diffusion head: 3000-6000ml/min, at 2.45KPa

● Timing device: 0-99.99 hours

● Experimental measuring cylinder specification: 1000mL (specialized measuring cylinder)

● Instrument size: 680 * 380 * 550mm

● Weight: 35kg

● Packaging size: 940 * 530 * 800mm

● Packaging weight: 52kg corrugated cardboard box packaging

● Refrigerator size: 380 * 420 * 430mm

● Refrigerator weight: 12kg corrugated cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
