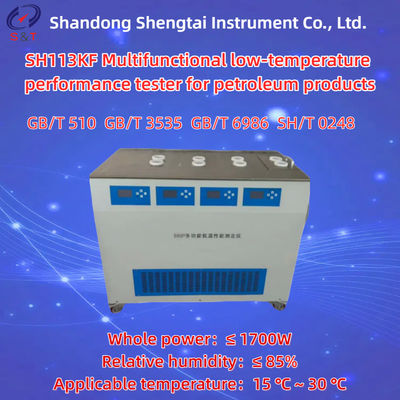

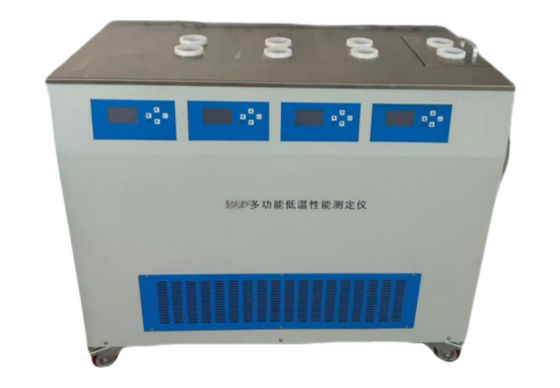

Multifunctional Low Temperature Performance Tester For Petroleum Products SH113KF

SH113KF Multifunctional low-temperature performance tester for petroleum products

The SH113KF multifunctional low-temperature performance tester for petroleum products is designed and manufactured in accordance with the requirements specified in the Chinese standards GB/T 510 "Determination of Condensation Point of Petroleum Products", GB/T 3535 "Determination of Petroleum Pour Point", and GB/T 6986 "Determination of Petroleum Cloud Point". It is suitable for determining the pour point, pour point, cloud point and other indicators of petroleum products according to the methods specified in the above standards.

The cold filter point measuring instrument can also be configured according to the method specified in the industry standard SH/T 0248 "Diesel and Civil Heating Oil Cold Filter Point Measurement Method" of the People's Republic of China, and the cold tank low temperature of the instrument can be used to measure the cold filter point of petroleum products.

Main technical specifications and parameters

1. Working power supply: AC (220 ± 10%) V 50Hz

2. Cold bath temperature control:

⑴ Cold tank I: can be set from 0 ℃ ～ -17 ℃, with an accuracy of ± 0.5 ℃

⑵ Cold tank II: can be set to -17 ℃ ～ -34 ℃, with an accuracy of ± 0.5 ℃

⑶ Cold tank III: can be set to -34 ℃ ～ -51 ℃, with an accuracy of ± 0.5 ℃

⑷ Cold Tank IV: -70 ℃ ～ room temperature, accuracy ± 0.5 ℃

3. Refrigeration method: Compressor refrigeration

4. Applicable temperature: 15 ℃ ～ 30 ℃

5. Relative humidity: ≤ 85%

6. Whole machine power consumption: ≤ 1700W.

Note: To measure the cold filter point, a cold filter point suction filter needs to be selected

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
