Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH128
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH128 Power Supply AC 220V±10%, 50Hz
Cold Trough Temperature +30℃~-70℃。(customized+20℃~-80℃) Bath Mixing Automatic Mixing By Mixing Motor,power :6W,1200r/min
Relative Humidity About 1500W Temperature Accuracy ±0.1℃
Cooling System Imported Cascade Refrigeration Compressor.
High Light

ASTM D1177 Freezing Point Tester

,

Aqueous Engine Freezing Point Tester

,

Laboratory Freezing Point Tester

Leave a Message
Product Description

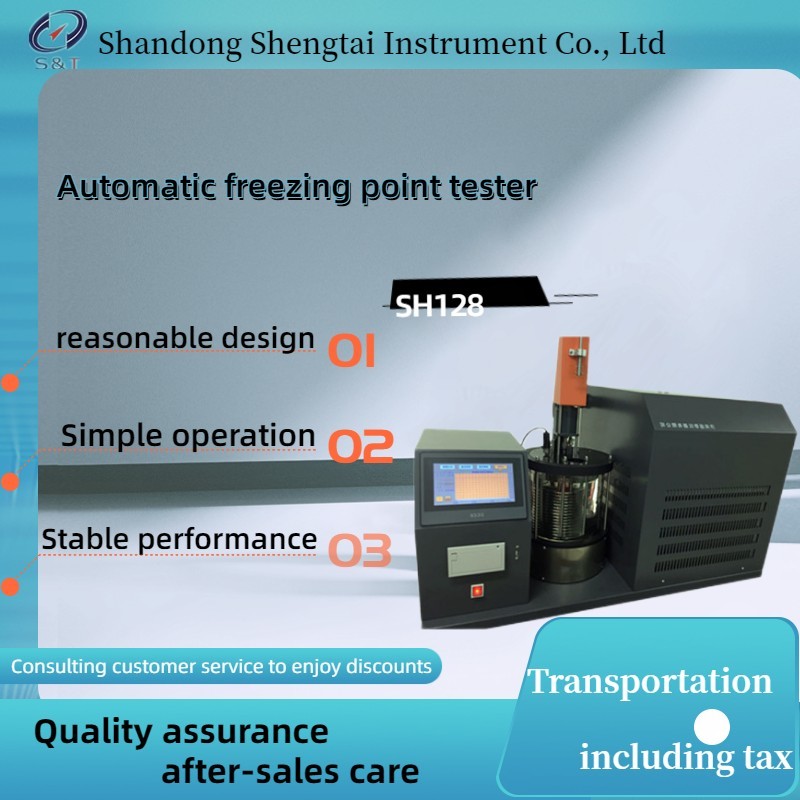

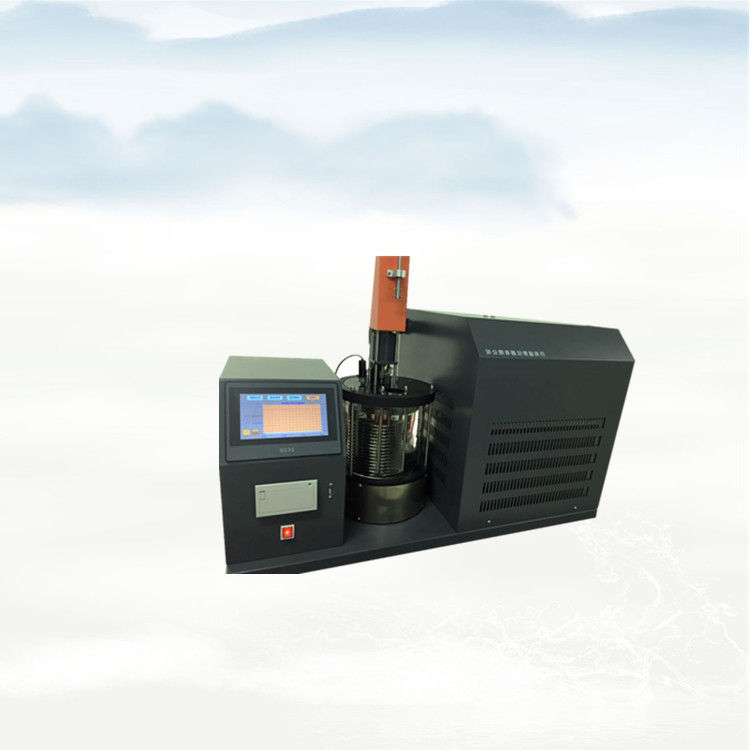

Laboratory Fully Automatic ASTM D1177 Aqueous Engine Coolants Freezing Point Tester



SH128 automatic antifreeze freezing point tester/ jet fuel freezing point tester is based on the national petrochemical industry standard SH/T0090-91 "engine coolant freezing point determination method" and ASTM D1177.

Suitable for measuring freezing point of engine coolant and concentrated liquid.

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester

 Engine Coolant Freezing Point Tester ASTM D 1177

Jet Fuel Freezing Point Tester ASTM D2386

Automatic Engine Coolant Freezing Point Tester

ASTM D1177 ASTM D2386 SH128 Automatic Freezing Point Tester for petroleum products

Engine Coolant Automatic Freezing Point Tester ASTM D1177

Automatic Freezing Point Tester for Fuels

Laboratory Fully Automatic ASTM D1177 Aqueous Engine Coolants Freezing Point Tester

Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic 0

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.

Technical Parameters:
Power supply: AC 220V±10%, 50Hz
Working cold trough: Double vacuum glass bath
Cold trough temperature: +30℃~-70℃.(customized+20℃~-80℃)
Temperature accuracy: ±0.1℃
Bath mixing: Automatic mixing by mixing motor,power :6W,1200r/min
Cooling system: Imported cascade refrigeration compressor.
Sample stirring: Synchronous geared motor, 60 times/min.
Ambient temperature: ≤30℃
Relative humidity: About 1500W
Total power consumption: less than 2000W
Instrument size: 720mm * 450mm * 680mm Weight: 75kg
Applicable standards: SH/T0090-91,GB/T 2430,ASTM D2386,ASTM D1177

Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic 1

Technical parameters

1, working power supply: AC220V±10%;50 hz.

2, working cold tank: double vacuum glass bath.

3, cold tank temperature control: +30℃ ~ -70℃.

(customized +20℃ ~ -80℃)

4, temperature control accuracy: ±0.1℃.

5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.

6, Refrigeration system: imported overlapping refrigeration compressor.

7, sample mixing: synchronous reducer motor, 1 times/second.

8. Ambient temperature: ≤30℃.

9, relative humidity: ≤85%.

10. Power consumption of the whole machine: about 1500W.

11. Instrument size: 720mm * 450mm * 680mm Weight: 75kg

Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic 2

Packing list

S/N Name Unit Quantity Remarks
1 Host set 1
2 Test bottle rubber stopper piece 1
3 Freezing test tube piece 1
4 Temperature sensor piece 1
5 Power cable piece 1
6 instructions copy 1
7 Packing list copy 1
8 Certificate warranty card copy 1

Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic 3

Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic 4

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Laboratory ASTM D1177 Aqueous Engine Coolants Freezing Point Tester Fully Automatic 5
