Double Hole Fully Automatic Condensation Point Tester +30 ℃ ～ -70 ℃ GB/T510

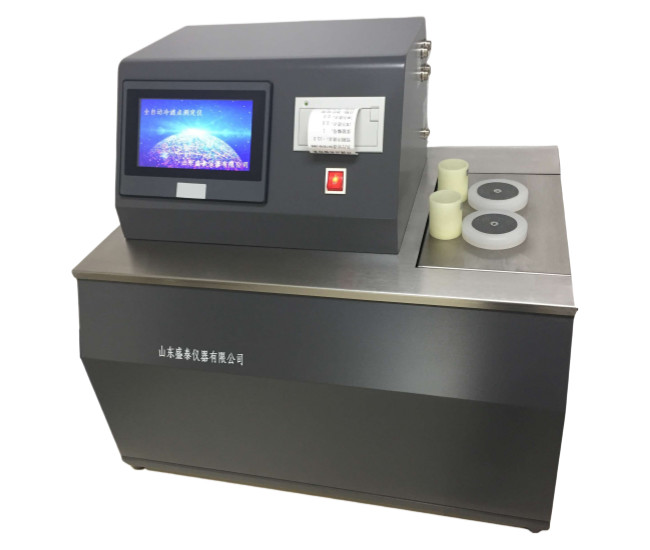

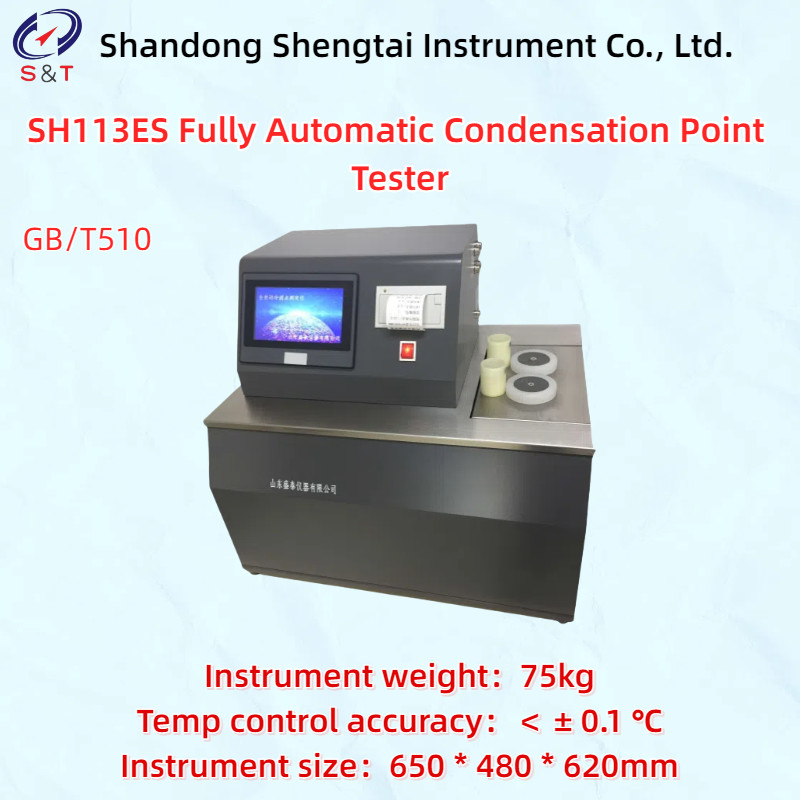

SH113ES Fully Automatic Condensation Point Tester

The SH113ES fully automatic pour point analyzer is based on the national standard GB/T510 "Determination of pour point of petroleum products", using modern advanced technology, integrating mechanical, optical, electronic and computer technology, and can automatically complete the test of pour point of petroleum products. This instrument adopts photoelectric detection technology, glass test tube automatic tilting method, and imported compressor refrigeration system to ensure the required refrigeration depth.

The condensation point is the highest temperature of an oil product when it is cooled in a test tube under specified test conditions until the liquid level does not move, expressed in degrees Celsius.

Technical parameters and characteristics:

● Compliant with standard: GB/T510

● Human computer interface: 7-inch color LCD touch screen;

● Refrigeration method: Fully enclosed high-efficiency refrigeration compressor.

● Detection method: Imported photoelectric switch detection

● After upgrading, historical data can be stored for easy retrieval; It can also be equipped with USB output function.

● After the experiment is completed, if there is no personnel operation, the automatic shutdown time of the refrigeration machine can be set arbitrarily within 0-50 minutes to avoid frequent opening of the compressor and extend the service life of the instrument,

● Standard micro printer with automatic measurement and thermal printing

● Number of test holes: double holes

● Temperature range:+30 ℃ ～ -70 ℃

● Temperature control accuracy: ＜ ± 0.1 ℃

● Sample size: Place at the scale line of the test tube

● Refrigeration medium: metal bath refrigeration

● Printer: Small thermal printer

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● Data memory: The microcomputer instrument memory can be expanded to 16GB

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Instrument size: 650 * 480 * 620mm

● Instrument weight: 75kg

● Packaging size: 690 * 520 * 660

● Packaging weight: 80kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
