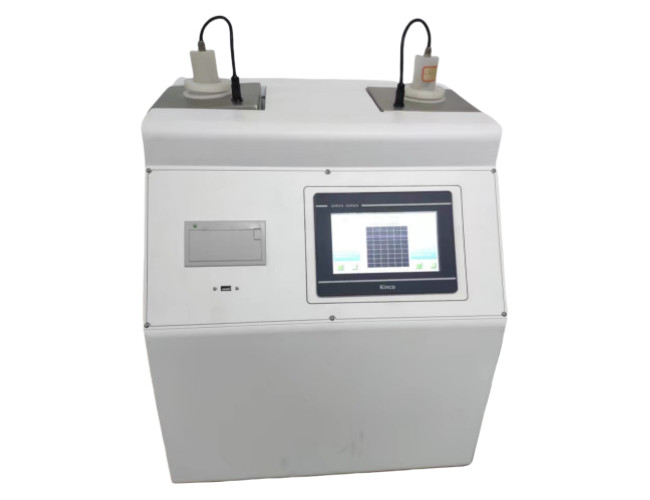

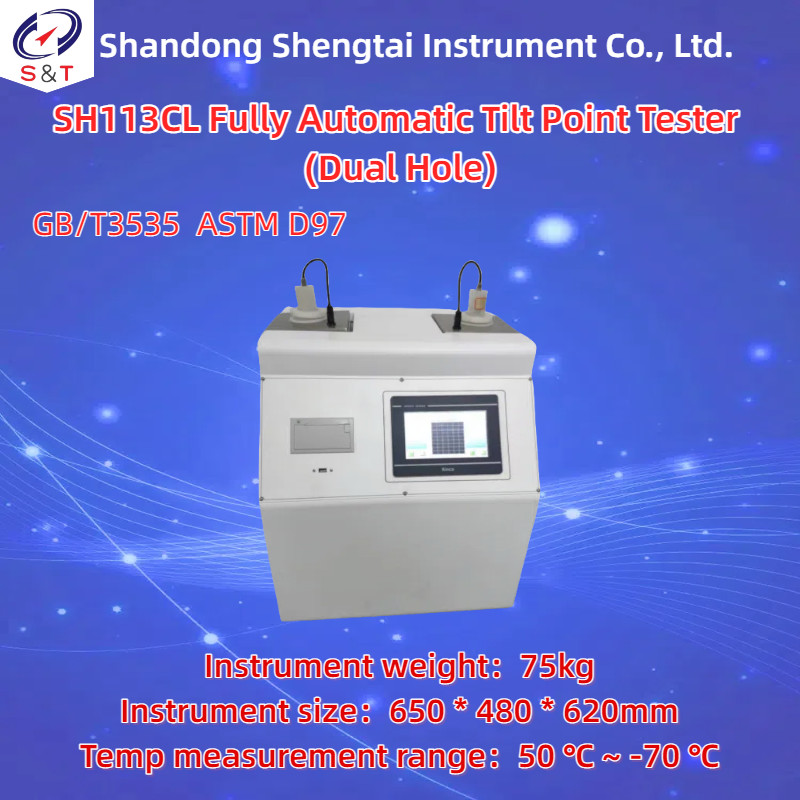

SH113CL Fully Automatic Tilt Point Tester  Dual Hole

The SH113CL fully automatic pour point analyzer is designed and manufactured based on the GB/T3535 petroleum product pour point measurement method. It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technologies to automatically complete the testing of petroleum product pour point. This instrument uses photoelectric detection technology, glass test tube automatic tilt method, and imported compressor refrigeration system to ensure the required refrigeration depth.

The instrument consists of a low-temperature cold source (cascade compressor refrigeration technology), an optical detection system, an MPU control system, and specialized software programs. The low-temperature cooling source adopts a micro stacked compressor for refrigeration, and the fan is used for heat dissipation (without the need for cooling water). Two relatively independent test bath holes are used to ensure that two comparative experiments are conducted simultaneously without affecting each other. Using optical detection technology, the endpoint of the experiment can be accurately captured with parameter correction function that can be set according to accuracy requirements. The instrument adopts standardized testing procedures, without human intervention, and can be fully automated for testing, with well printed experimental results.

Technical performance parameters:

● Compliant with standard: GB/T3535 ASTM D97

● Display mode: 7-inch touch screen

● Working power supply: AC220V ± 10% 50Hz

● Temperature measurement range: 50 ℃ ~ -70 ℃

● Display accuracy: 0.1 ℃

● Number of test samples: 2 channels

● Power consumption of the whole machine: ＜ 2000W

● Test interval: 2 ℃, 3 ℃ or set by oneself

● Number of bath slots: Dual temperature dual bath, 2 holes, can be operated independently

● Adopting a color LCD large screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard,

● Simulate and track the function curve of temperature and test time.

● Endpoint determination: Optical liquid level detection method.

● Cooling method: Compressor cooling

● 90 ° mechanical automatic operation

● Detection method: photoelectric sensor detection

● Tilting method: Glass test tube automatically tilts

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Data storage: USB data export function

● Printer: equipped with a micro printer

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Instrument size: 650 * 480 * 620mm

● Instrument weight: 75kg

● Packaging size: 690 * 520 * 660

● Packaging weight: 80kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
