Petroleum Cloud Point Tester ASTM D2500 Room Temp ～ -70 ℃ Accuracy ± 0.5 ℃ 75kg

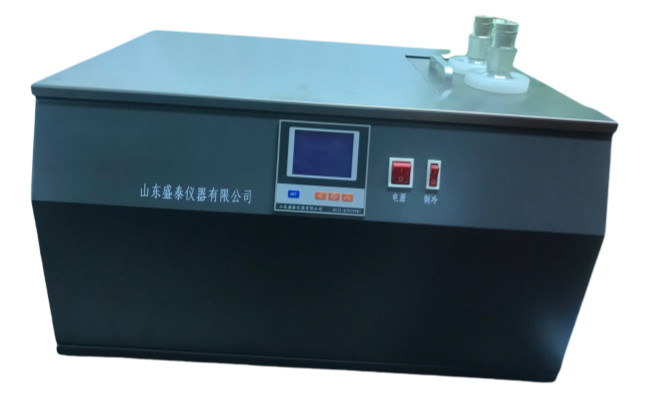

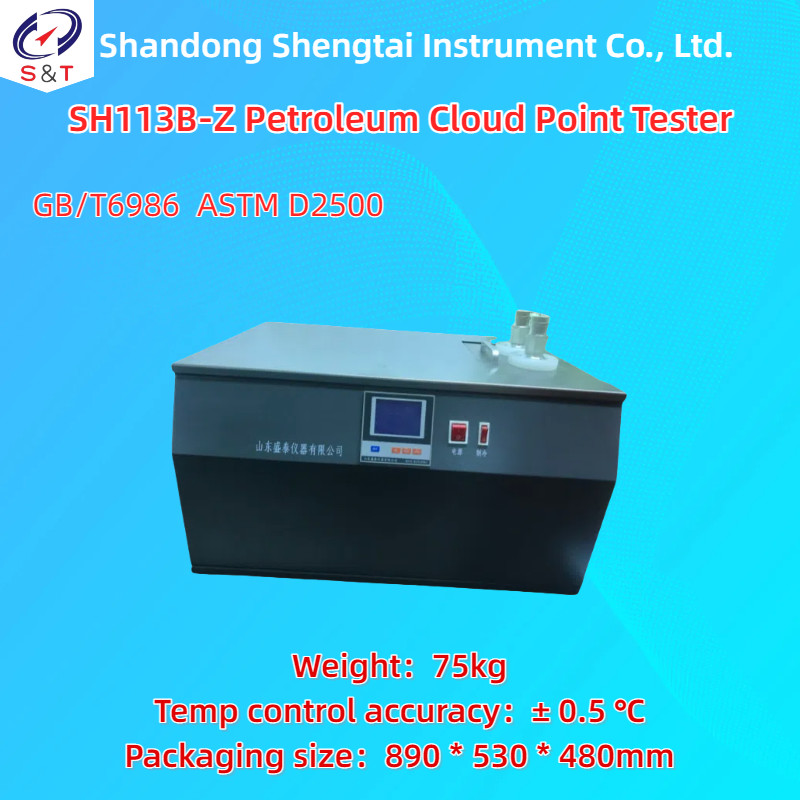

SH113B-Z Petroleum Cloud Point Tester

The SH113B-Z petroleum cloud point analyzer is designed and manufactured in accordance with the requirements of the Chinese standard "Petroleum Cloud Point Determination Method" (GB/T 6986-1986), and is suitable for determining the cloud point of petroleum products using the methods specified in the above standards.

Cloud point is the temperature, expressed in ℃, at which clear and clean liquid petroleum products become foggy or turbid due to wax crystallization under specified test conditions

Compliant with standard: GB/T6986 ASTM D2500

Main technical specifications, parameters, and performance characteristics:

● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

● The output mode is a small LCD display with good temperature control stability.

● The host is cooled by a metal bath, without the need to replace the medium alcohol, resulting in rapid cooling.

● Imported stacked compressor

● Working power supply: AC220V ± 10% 50Hz

● Temperature control range: room temp ～ -70 ℃

● Cloud point measurement range: room temp ～ -55 ℃

● Temperature control accuracy: ± 0.5 ℃

● Refrigeration system: New type of refrigeration compressor (dual compressor)

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption:<1500W

● Packaging size: 890 * 530 * 480mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

---Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
