4 Holes Petroleum Kinematic Viscometer ASTM D445 room temp -100 ℃ 1800W

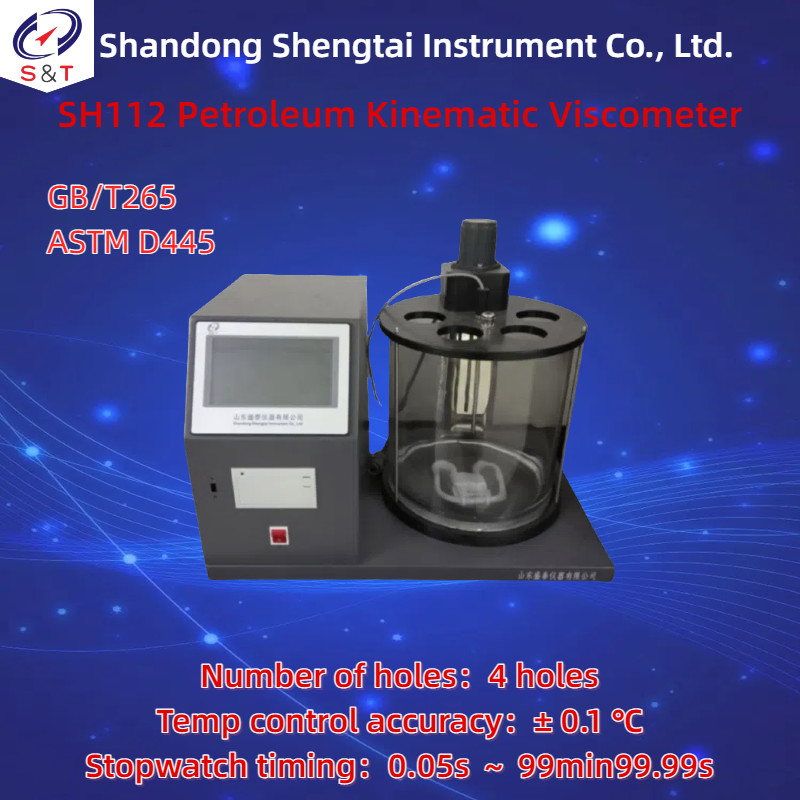

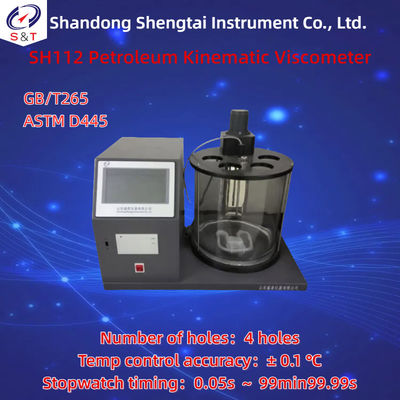

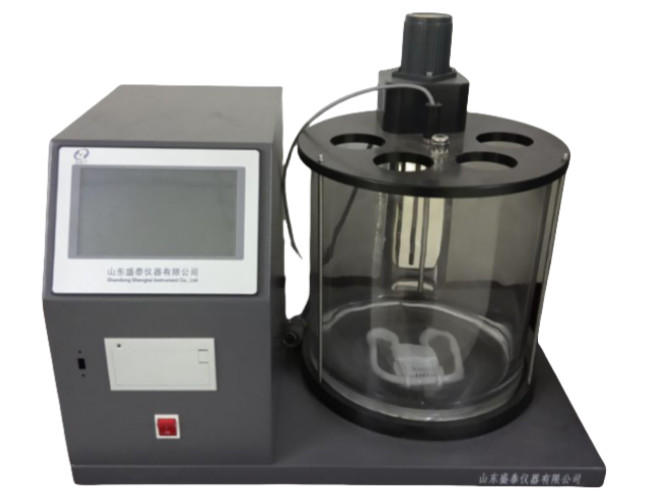

SH112 Petroleum Kinematic Viscometer

SH112 Petroleum Kinematic Viscometer This instrument complies with the requirements of the national standard GB/T265 "Determination of Kinematic Viscosity of Petroleum Products and Algorithm for Dynamic Viscometers". It can simultaneously hold four viscosity tubes for experiments, and can also be used as a high viscosity constant temperature water bath for other experiments. Adopting a color LCD large screen with Chinese display, no labeled buttons, temperature measurement using precision platinum resistance PT100, setting freely between 10-100 ℃, automatic switching between main and auxiliary heaters, and the ability to store the constant of the capillary tube in case of power failure. Automatically calculate viscosity value, this product also complies with ASTM D445 standard

Kinematic viscosity: Determine the gravity flow under a certain volume model at a constant temperature, and measure the viscosity of the liquid by calibrating a glass capillary viscometer. The constant of the capillary viscometer flows over time, and the kinematic temperature of the product is used to measure the viscosity of the liquid

The main technical parameters and characteristics are as follows:

● The constant temperature bath is a circular glass cylinder with uniform temperature distribution inside and good temperature control effect (can be made into double cylinders).

● This instrument uses a precision digital temperature controller to control the temperature inside the bathtub, and the actuator adopts a solid-state relay (SSR), which has the characteristics of accurate temperature control accuracy, no contacts, no noise, no sparks, fast action, and long service life.

● The capillary gauge card adopts a three-point vertical type, which is flexible and convenient to operate, and the clamping is reliable.

● The viscosity tube can be selected as either a Pinter viscosity tube or an Ubbelohde viscosity tube according to the needs.

● Equipped with USB input function, it can output data to the PC for long-term storage (optional).

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval (optional);

● Output format: The output format of the result USB drive is CSV or Excel (optional).

● Temperature control point: Room temperature -100 ℃ can be set arbitrarily;

● Temperature control accuracy: ± 0.1 ℃;

● Display mode: digital display;

● Number of holes: 4 holes

● Stopwatch timing: 0.05s ～ 99min99.99s

● Heating power: 1800W

● Power supply: AC 220V ± 10% 50HZ ± 5%

● Dimensions: 600 × 340 × 350mm

● Weight: 15Kg

● Customers are required to provide their own consumables: water or glycerin. Strictly according to national standards, the viscosity tube needs to be cleaned with the following reagents before the experiment: solvent oil or petroleum C5H12.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list
