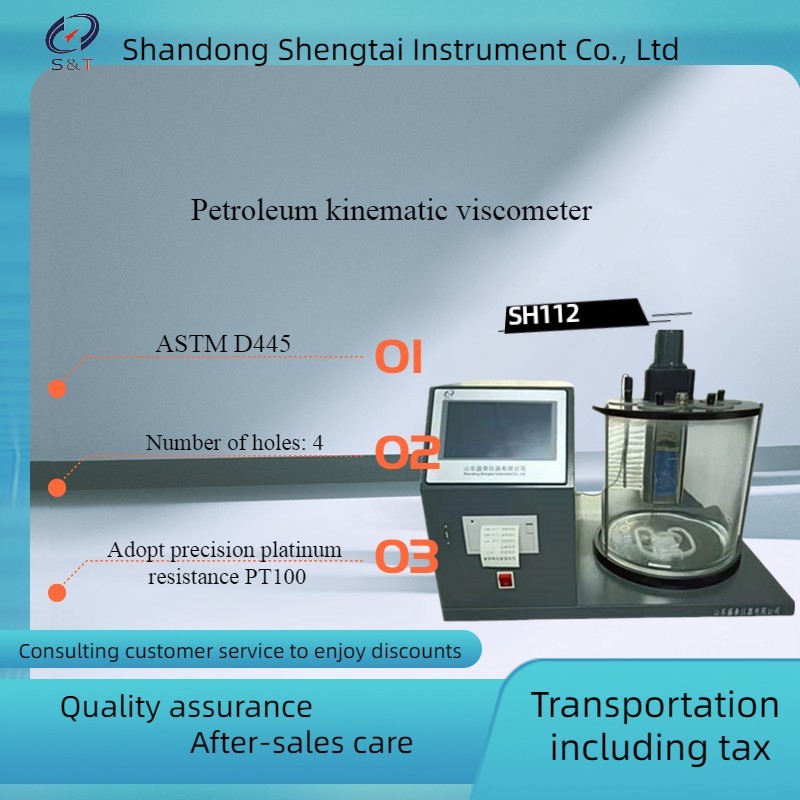

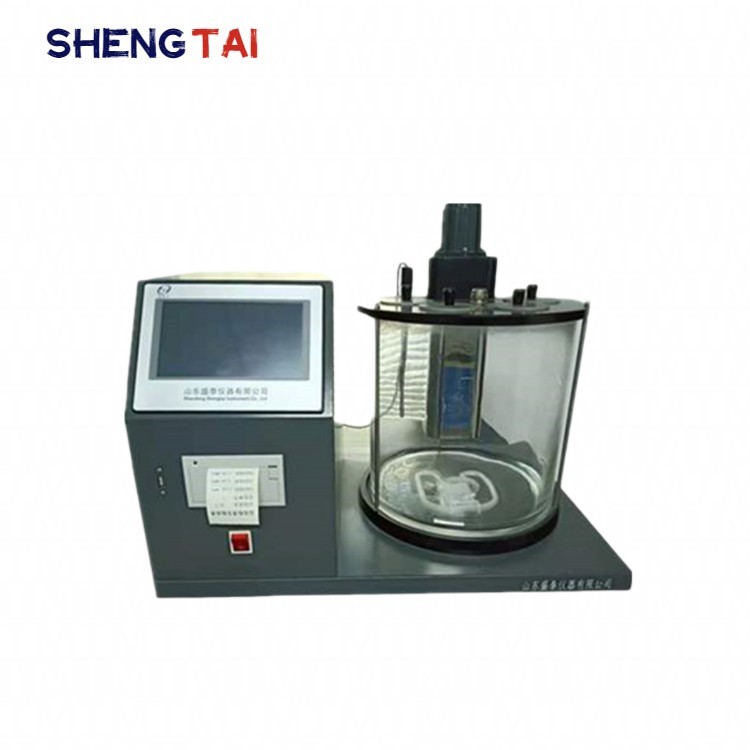

SH112 Petroleum Kinematic Viscometer With Four Viscometers Installed Simultaneously

SH112 Petroleum Kinematic Viscometer LCD Large Screen Display with Four Viscometers Installed Simultaneously

The SH112 Petroleum Kinematic Viscometer meets the requirements of the national standard GB/T265 "Petroleum Products - Determination of Kinematic Viscosity and Dynamic Viscometer Algorithm". It can simultaneously place four viscosities and conduct experiments, and can also serve as a high viscosity constant temperature water bath for other experiments. It adopts a large color LCD screen with Chinese display and no identification buttons. The temperature measurement adopts a precision platinum resistor PT100, which can be set at any temperature between 10 and 100 ℃. The main and auxiliary heaters automatically switch and can store the constant of the capillary tube when powered off. Automatically calculate viscosity value, and this product also complies with ASTM D445

Kinematic viscosity: Determine the gravity flow under a certain volume model at a constant temperature, and use a calibrated glass capillary viscometer to measure the viscosity of the liquid. The constant of the capillary viscometer flows over time, and the product's kinematic temperature is used to measure the viscosity of the liquid

The main technical parameters and characteristics are as follows:

1. The thermostatic bath is a round glass tank, with uniform temperature distribution and good temperature control effect (can be made into double tanks).

2. This instrument adopts a precision digital temperature controller to control the temperature inside the bathtub, and the executing element adopts a solid-state relay SSR. It has the characteristics of accurate temperature control accuracy, no contact, no noise, no spark, fast action, and long service life.

3. The capillary gauge card adopts a three point vertical type, which is flexible and convenient to operate, and reliable to grip.

4. The viscosity tube can be selected according to the needs of Pinot or Ubbelohde viscosity tubes.

5. It has a USB drive input function and can output data to the PC for long-term storage.

6. Storage method: The experimental results can be stored in 199 sets of historical data for easy query;

7. Output Format: The output format of the result USB drive is CSV or Excel.

8. Temperature control point: set arbitrarily at room temperature of -100 ℃;

9. Temperature control accuracy: ± 0.1 ℃;

10. Display method: digital display;

11. Number of holes: 4 holes

12. Stopwatch timing: 0.05 seconds -99 minutes 99.99 seconds;

13. Heating power: 1800W;

14. Power supply: AC 220V ± 10%, 50HZ ± 5%;

15. Boundary dimension: 600× 340× 350mm；

16. Weight: 15Kg.

Consumables that need to be provided by the customer: water or glycerol. Strictly following national standards, the viscosity tube needs to be cleaned with the following reagents before the experiment: solvent oil or petroleum ether.

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Contact us

Shandong Shengtai Instrument Co.,ltd

ADD:6-8 time base NO.15 lanxiang road tianqiao Area Jinan city

TEL:+86 0531-85919987 85929987

FAX:+86 0531-85957987

Whatsapp/facebook:+86 13370527859

QQ:3206156217

Email:3206156217@qq.com

Web:www.labtool.net/en
