2 Sets Fully Automatic Reverse Flow Viscometer GB/T11137 Heating Rate >5 ℃/Min

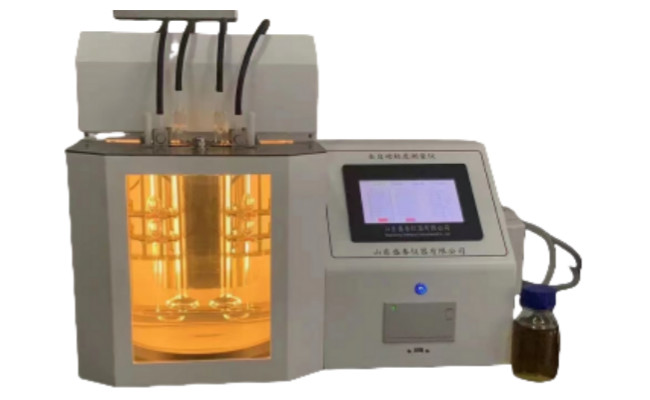

SH112H Fully Automatic Reverse Flow Viscometer

The SH112H fully automatic countercurrent kinematic viscosity tester is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T11137 "Determination of kinematic viscosity of dark petroleum products (countercurrent method) and dynamic viscosity meter algorithm" and SY2409 "Determination of kinematic viscosity of dark petroleum products", and is suitable for the determination of dark petroleum products and heavy oil.

Kinematic viscosity: Determine the gravity flow under a certain volume model at a constant temperature, and use a calibrated glass capillary viscometer to measure the viscosity of the liquid. The constant of the capillary viscometer flows over time, and the kinematic temperature of the product is used to measure the viscosity of the liquid

Main technical indicators, parameters, and characteristics

● Large size color touch screen display.

● Adopting a 32-bit microprocessor as the control core.

● The main components and electronic parts of the instrument are all imported, with good stability.

● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic USB output and other functions.

● Fast and stable temperature control, with a heating rate of>5 ℃/min.

● Equipped with LED soft light, uniform fill light, easy to observe.

● It has the function of storing viscosity meter parameters.

● The microcomputer can expand the memory to 16GB

● Working viscosity meter: Cannon Fenske capillary tube, in compliance with GB/T11137 standard requirements.

● Viscometer fixture: made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device

● Measurement quantity: 2 sets.

● Temperature range: Room temperature ～ 100 ℃

● Temperature control accuracy: ± 0.1 ℃.

● Maximum timing time: 9999.9s

● Measurement accuracy: ± 0.1s

● Viscosity measurement range: 0.4-20000mm2/s

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Working power supply: AC220V ± 10%, 50Hz.

● Maximum power: 2000W.

● Instrument size: 450 * 380 * 550

● Instrument weight: 32kg

● Packaging size: 520 * 480 * 650

● Packaging weight: 39kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list
