Automatic Residual Carbon Analyzer Astm D4530 Micro Method 0.10%M/M-30.0%M/M

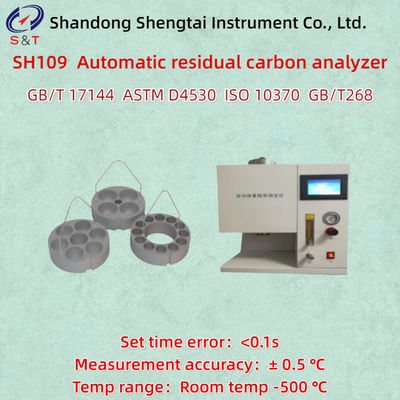

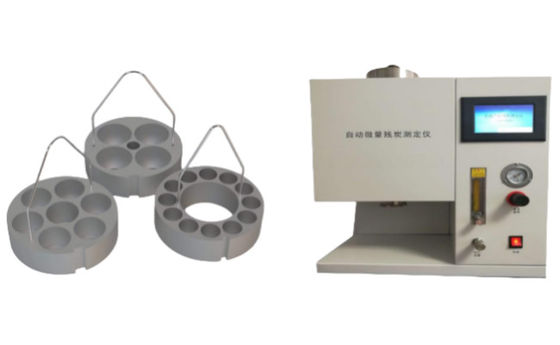

SH109 Automatic residual carbon analyzer

The SH109 fully automatic residual carbon analyzer is designed and manufactured in accordance with the requirements of GB/T 17144-2021 "Determination of residual carbon in petroleum products (micro method)", "ASTM D4530" and "ISO 10370:1993" standards. It has the characteristics of beautiful appearance and easy operation. The test results are consistent with those of GB/T268 (Conics method) and are also suitable for detecting petroleum products composed of distillate oil with residual carbon values below 0.10 (m/m).

Petroleum residual carbon: The residue formed by the gas decomposition products emitted from an oil sample after heating, evaporation, and cracking. Expressed in terms of quality score

Principle: Place the weighed sample into a sample tube and heat it up to 500 ℃ in an inert gas (nitrogen) atmosphere according to the prescribed temperature program. The volatile substances generated during the reaction process are carried away by nitrogen, and the carbonaceous residue left behind is reported as a percentage of the original sample to determine the trace residual carbon value.

Main technical parameters and performance characteristics:

● Adopting a 5-color LCD touch screen with automatic calculation and optional printing function, the motherboard is equipped with a communication interface.

● Adopting full temperature rise process program control, the heating rate is automatically controlled, the set temperature is automatically controlled, and the temperature control is stable.

● The display instrument is in one of the states of "blowing", "heating up", or "constant temperature"

● Adopting an embedded operating system, automatic control of temperature rise and flow rate, and real-time display of experimental progress

● Editable input of sample tube and sample quality, automatic calculation of residual carbon value.

● It can store hundreds of sets of historical data for easy querying, and historical data can be queried based on dates

● Measurement range: 0.10% (m/m) -30.0% (m/m)

● Temperature range: Room temperature -500 ℃

● Constant temperature accuracy: 500 ℃± 2.0 ℃

● Constant temperature time: 15 minutes

● Measurement accuracy: ± 0.5 ℃

● Gas consumption: A standard nitrogen cylinder with a pressure of 14700kPa (150kg/cm2)

● Set time error:<0.1s

● Number of experimental wells: 12 wells in 3ml and 4ml test tubes

● 10ml test tube with 6 wells

● Pressure regulation range: 0kPa (0kg/cm2) -392kPa (4kg/cm2)

● Combustion chamber size: Φ 85mm × 105mm

● Waste liquid collection bottle: 200ml

● Heater power: 1000W

● Dimensions: 420 * 420 * 470 mm

● Instrument weight: 24 kg

● Packaging size: 650 * 550 * 700 mm

● Packaging weight: 45 kg

● Flow regulation range: 100ml/min-1000ml/min; Automatic switching between 150ml/min and 600ml/min

● Working power supply: AC220V ± 10% 50Hz

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
