Automatic Interface Tension Meter IS0 6295 Platinum Ring Method Range 2-200mN/M

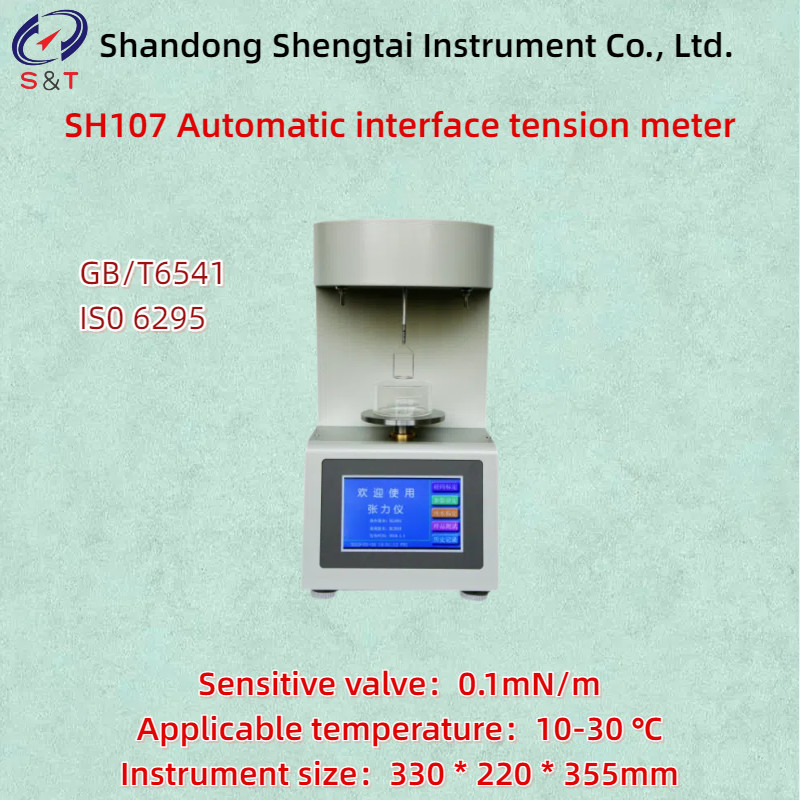

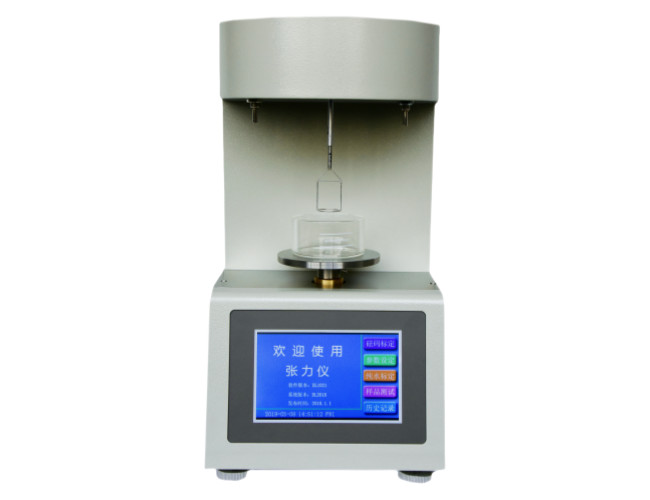

SH107 Automatic interface tension meter

The SH107 automatic interfacial tension meter is designed and manufactured according to GB/T6541. The circular ring method is used to measure the surface tension of various liquids (liquid gas phase interface) and the interfacial tension between mineral oil and water (liquid-liquid phase interface) under non-equilibrium conditions. This instrument adopts microprocessor technology, with high degree of automation, simple operation, and reliable work. After the tested sample is injected into the sample cup, as long as the start button is pressed, the instrument can automatically complete the measurement of the sample and calculate the tension value of the tested sample based on the specific parameters input.

The definition of interfacial tension is: Oil to water interfacial tension refers to the tension generated at the interface between an oil product and an immiscible pure water phase, measured in millinewtons per meter (mN/m). In terms of electric power oil, the commonly referred to interfacial tension refers to the interfacial tension between oil and water, abbreviated as the interfacial tension of oil products.

This instrument adopts microcontroller technology, large screen LCD display, beautiful appearance, high degree of automation, simple operation, high accuracy, and good repeatability. Save input data parameters after power failure; It has temperature correction function. This instrument is widely used for measuring interfacial tension in production processes and products in industries such as power, petroleum, chemical, and railway.

Technical Parameter

● Display system: Large screen LCD display interface tension

● Measurement method: Circular ring method (GB/T6541-86)

● Measurement range: 2-200mN/m

● Movement speed: Fast: 1mm/S Slow speed: 0.3-0.4mm/S

● Sensitive valve: 0.1mN/m

● Applicable temperature: 10-30 ℃

● Temperature adaptation: ≤ 80%

● Power supply: AC 220V ± 5%, 50Hz

● Power consumption: 20VA

● Instrument size: 330 * 220 * 355mm

● Instrument weight: 8.2kg

● Packaging size: 425 * 315 * 455mm

● Packaging weight: 11kg cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing List

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
