2ml Sample Full Automatic Essence Closed Flash Point Meter ISO 3679 -30 ～ +100℃

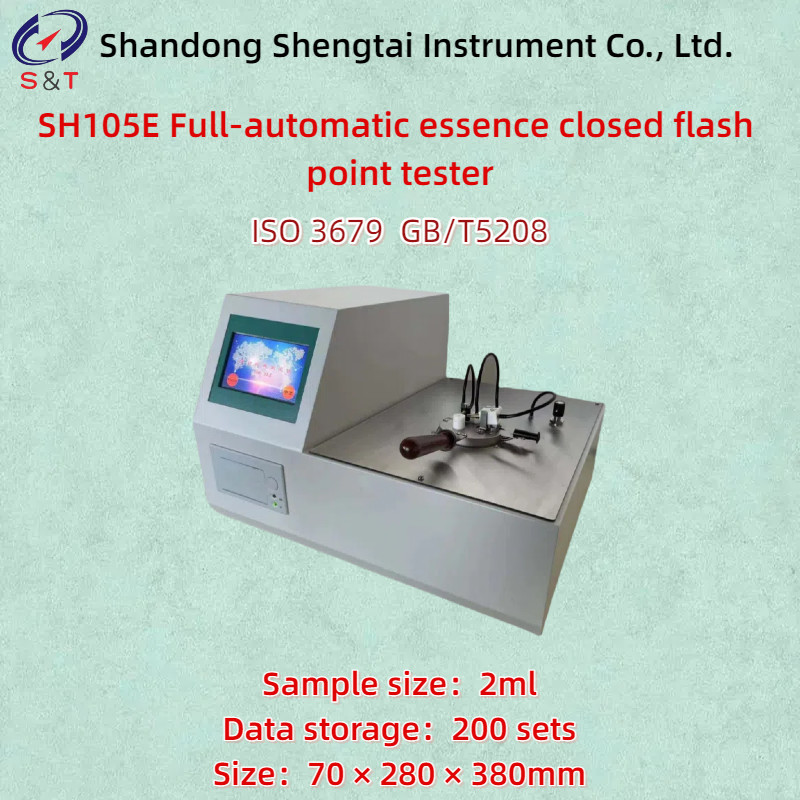

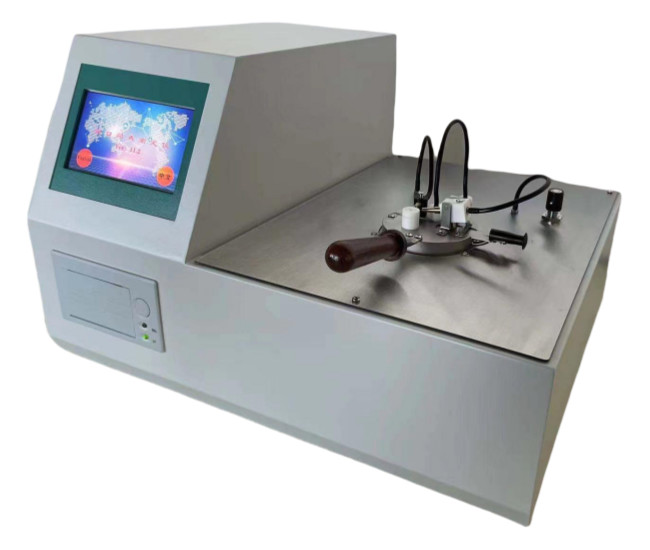

SH105E Full-automatic essence closed flash point tester

The SH105E fully automatic flavor closed flash point tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T 5208 "Determination of Flash Point - Rapid Equilibrium Closed Cup Method". This instrument also meets the requirements of ISO 3679 standard.

This instrument is based on advanced electronic temperature control instruments and equipped with appropriate interface circuits to achieve automation of temperature control. It has functions such as automatic switching of heating power and automatic temperature control. This instrument is simple in operation, reasonable in structure, accurate in detection, stable in performance, and intuitive in display. It is an ideal substitute for imported instruments, and can meet the requirements of petroleum, chemical industry, coating, paint, essence, spice commodity inspection and scientific research institutions for fast closed flash point testing of petroleum products.

This instrument is particularly suitable for testing the closed cup flash point of various paints, coatings, adhesives, solvents, petroleum and related products within the range of room temperature ～ +300 ℃ or -30 ℃ ～ 100 ℃.

Main technical indicators and parameters

The difference between two experimental results

● Upgrade to a 7-inch touch color screen display

● Flash point detection range: (-30 ～ +100) ℃

● Sample size: 2ml

● Measurement precision:

The difference between two experimental results is less than 2 ℃ (for the same operator);

The difference between two experimental results is less than 3 ℃ (for different operators);

● Temperature control accuracy: ± 0.1 ℃

● Ignition device: electronic ignition point;

● Opening method: automatic opening

● Cooling method: Semiconductor internal cooling and external compressor cooling cycle

● Data storage: can store 200 sets of historical data

● Standard micro printer with automatic measurement and thermal printing

● Compliant with standards: Compliant with Chinese standards GB/T5208-2008, GB/T5207, GB7634, GB/T21790

● Power supply voltage: AC220V ± 10% 50HZ

● Power consumption of the whole machine: ＜ 300W

● Environmental temperature: 5 ℃ ～ 30 ℃

● Relative humidity: (30 ～ 80)%

● Size: 370 × 280 × 380mm

● Weight: 15KG

● Circulating bath size: 450 * 480 * 580mm

● Circulating bath weight: 28kg (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
