ISO 3679 Low Temperature Closed Flash Point Tester Balancing Method 2ml Sample

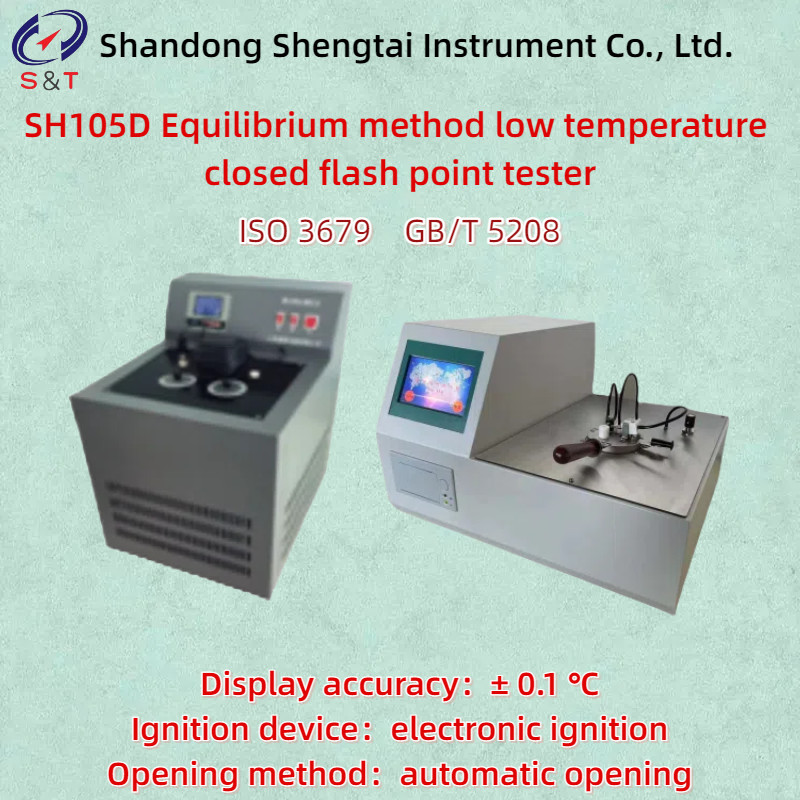

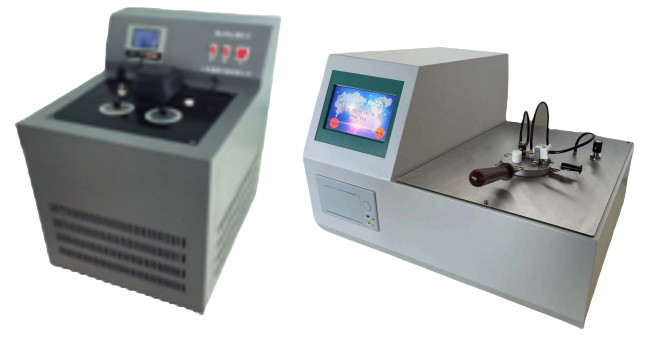

SH105D Equilibrium method low temperature closed flash point tester

The SH105D equilibrium method low-temperature closed cup flash point analyzer is designed and manufactured in accordance with the requirements of the Chinese standard GB/T 5208 "Determination of Flash Point - Rapid Equilibrium Closed Cup Method". This instrument also meets the requirements of ISO 3679 standard and GB/T21775-2008 flash point determination closed cup equilibrium method.

This instrument is based on advanced electronic temperature control instruments and equipped with appropriate interface circuits to achieve automation of temperature control. It has functions such as automatic switching of heating power and automatic temperature control. This instrument is easy to operate, has a reasonable structure, accurate detection, stable performance, and intuitive display. It is an ideal substitute for imported instruments and can meet the requirements of petroleum, chemical, coating, paint, railway, aviation, power, commercial inspection, and scientific research units for rapid testing of the closed flash point of petroleum products.

Detection Principle

Inject a specified volume of test sample into a test cup maintained at the expected flash point temperature of the test material. After a specified period of time, ignite and observe whether flash occurs at different temperature points. Continue the test with a newly taken sample until the flash point is measured and the specified sensitivity is reached.

This instrument is particularly suitable for testing the closed cup flash point of various paints, coatings, adhesives, solvents, petroleum and related products within the range of -30 ℃ to+100 ℃.

Main technical indicators and parameters:

● Upgrade to a 7-inch touch color screen display

● Flash point detection range: (-30 ～ +100) ℃

● Sample size: 2ml

● Measurement precision: The difference between two experimental results is less than 2 ℃ (by the same operator);

● The difference between two experimental results is less than 3 ℃ (for different operators);

● Display accuracy: ± 0.1 ℃;

● Ignition device: electronic ignition

● The heating rate and ignition frequency can be set according to different samples

● Opening method: automatic opening

● Cooling method: Semiconductor internal cooling and external compressor cooling cycle

● Data storage: can store 200 sets of historical data

● Standard micro printer with automatic measurement and thermal printing

● Compliant with standards: Compliant with Chinese standards GB/T5208-2008, GB/T5207, GB7634, GB/T21790

● Power supply voltage: AC220V ± 10% 50HZ

● Power consumption of the whole machine: ＜ 300W

● Environmental temperature: 5 ℃ ～ 30 ℃

● Relative humidity: (30 ～ 80)%.

● Size: 370 × 280 × 380mm (L × W × H)

● Weight: 15KG

● Circulating bath size: 450 * 480 * 580mm

● Circulating bath weight: 28kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
