Low Temperature Closed Flash Point Tester ASTM D 93 Compressor Refrigeration

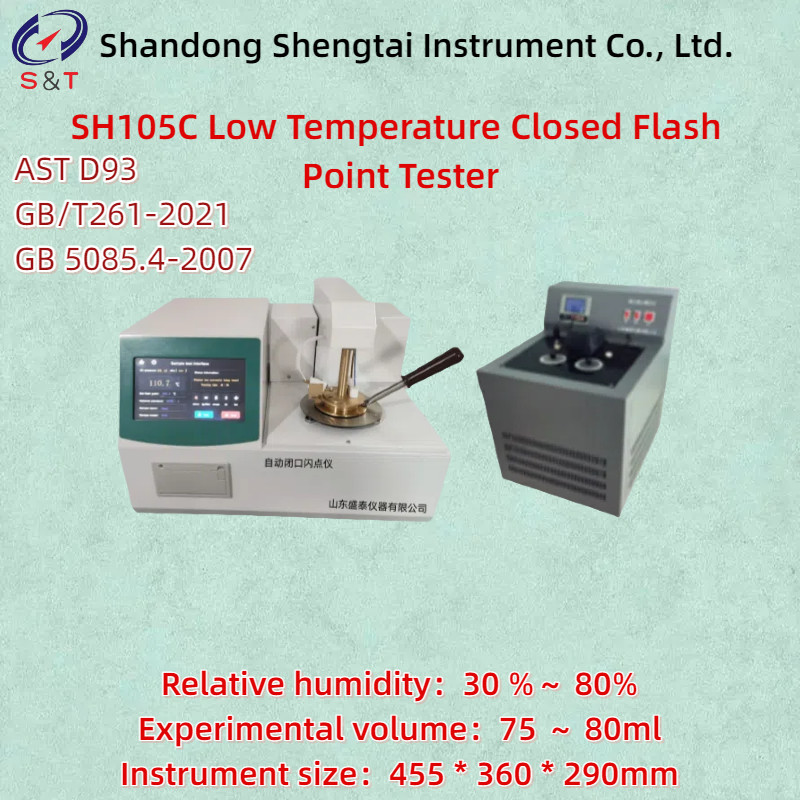

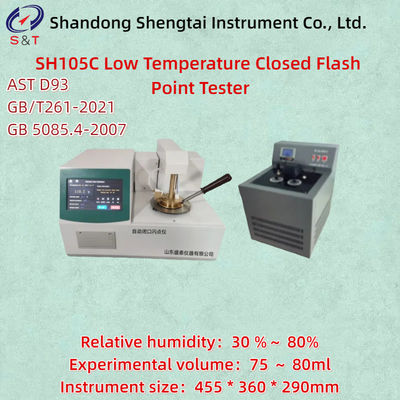

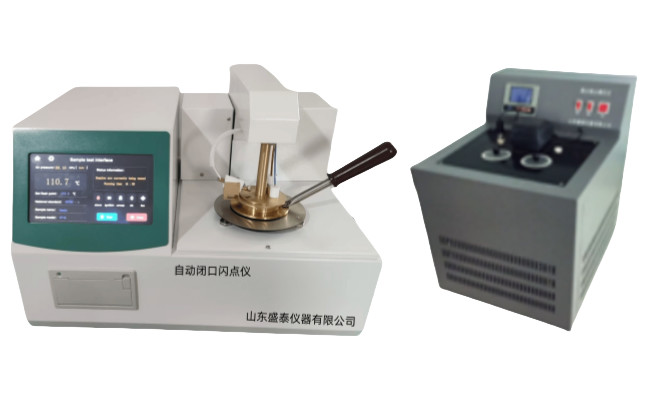

SH105C Low Temperature Closed Flash Point Tester

The SH105C low-temperature closed flash point tester is designed and manufactured in accordance with the requirements of the GB/T261-2021 standard of the People's Republic of China. It meets the GB 5085.4-2007 hazardous waste identification standard for flammability identification.

The instrument heats up, automatically raises and lowers, automatically ventilates, automatically ignites, automatically displays, automatically locks the flash point value, and automatically prints the results according to standard methods. After testing, it can automatically cool down, achieving full automation of the working process. It has the advantages of accurate measurement, good repeatability, stable performance, and simple operation. Widely used in departments such as power, petroleum, chemical, commercial inspection, and scientific research. Compliant with ISO-2719 and GB261 standards.

The definition of flash point: The lowest temperature at which a mixture of vapor evaporated from a liquid and air can flash when exposed to an ignition source under specified test conditions (determined by the closed cup method) is called the flash point.

Main technical indicators and parameters

● Working power supply: AC220V ± 10% 50Hz

● Flash point detection range: (0 ～ +350) ℃

● Measurement precision: The difference between two experimental results is less than 2 ℃ (by the same operator)

● The difference between two experimental results is less than 3 ℃ (for different operators)

● Temperature control accuracy: ± 0.1 ℃

● Ignition device: Electronic ignition point, no gas source required

● Refrigeration method: compressor refrigeration;

Power supply voltage: AC220V ± 10% 50Hz

● Power consumption of the whole machine: ＜ 300W

● Environmental temperature: 5 ℃ ～ 30 ℃

● Relative humidity: 30% ～ 80%

● Experimental volume: 75 ～ 80ml

● Instrument size: 455 * 360 * 290mm

● Instrument weight: 13kg

● Packaging size: 520 * 410 * 400mm

● Packaging weight: 20kg wooden crate

● Circulation bath size: 480 * 380 * 640mm

● Circulating bath weight: 34.7kg

● Bath packaging size: 530 * 415 * 750mm

● Bath packaging weight: cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
