SH103 Micro Moisture Analyzer Titration Rate 2.5mg/Min ASTMD 0304 Resolution 0.1ug

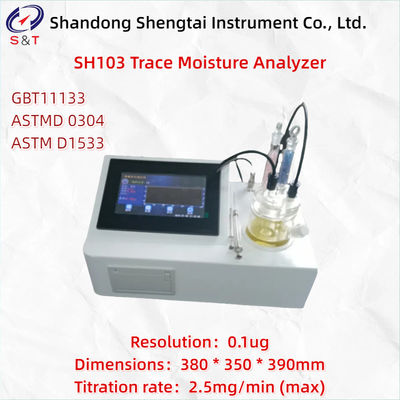

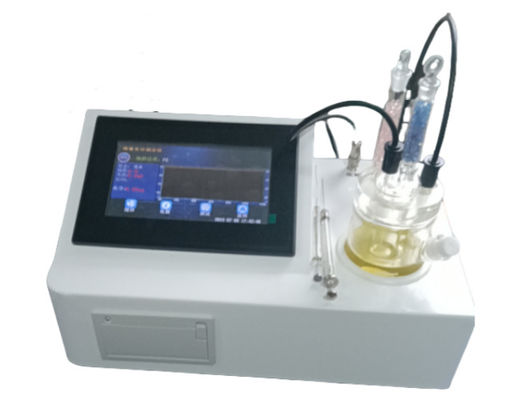

SH103 Trace Moisture Analyzer

The SH103 trace moisture analyzer is based on the Karl Fischer coulometric titration principle and complies with the third method of the Karl Fischer method in GB/T 2288-2008 coking product moisture determination method. It supports multiple calculation formulas and meets the standards GBT11133, ASTMD 0304, and ASTM D1533.

Adopting microcomputer automatic control, 32-bit embedded microprocessor as the main control core, embedded in a mini operating system; The instrument comes with constant current detection and dual circuit balanced titration functions; The electrolytic cell adopts a new waterproof sealing design; Compared with similar advanced products at home and abroad, it has the advantages of high sensitivity, fast electrolysis speed, short equilibrium time, accurate blank deduction, and accurate and reliable analysis results. It is a high-quality analytical instrument for departments such as petroleum, chemical, power, environmental protection, medicine, and scientific research.

Technical parameters:

The Karl Fischer Coulomb method is a reliable method for determining trace amounts of moisture in different substances, which complies with GB/T11133. This trace moisture analyzer has successfully applied this method and is controlled by a microcomputer. It has fast analysis speed, high accuracy, Chinese display on the LCD screen, automatic printing, dual CPU design, automatic blank current deduction function, instrument fault self diagnosis, menu selection and other functions to achieve better operation and use. It is a simple to operate and fully automatic analytical instrument. It is an ideal instrument for analyzing the moisture content of oil products.

● Display mode: Color touch screen display

● Titration method: Microcomputer controlled electrical titration

● Output mode: automatic calculation, can output ug, PPM, and%

● Measurement range: from 0.00001% to 100% as a percentage, and from 0.1ppm to one million ppm in PPM (1ppm=0.0001%)

● Resolution: 0.1ug

● Electrolysis control: automatic electrolysis current tracking control (maximum 400mA)

● Titration rate: 2.5mg/min (maximum)

● Sensitivity: 0.1ug -100g, not more than 2%, converted to 0.3% (excluding injection error)

● Printer: 16 character needle print paper with a width of 44 millimeters

● Power supply: AC 220V ± 10% 50Hz ± 10%

● Power: 60VA

● Operating environment temperature: 5-40 ℃

● Operating environment temperature: ≤ 90%

● Dimensions: 380 * 350 * 390

● Weight: 18kg

● Required consumables: Karl Fischer reagent, the instrument itself comes with a set of reagents, which can be purchased or self equipped after use.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

DL/T 915-05 GB 5832-1986

Meet the following standards:

● GB/T7600 "Determination of Moisture Content in Operating Transformer Oil (Coulombic Method)

● GB6283 "Determination of Moisture Content in Chemical Products - Karl Fischer Method (General Method)"

● SH/T0246 "Determination of Water Content in Light Petroleum Products (Electricity Method)

● SH/T0255 "Method for determination of moisture content in additives and lubricating oils containing additives (electric method)"

● GB/T11133 "Determination of Water Content in Liquid Petroleum Products (Karl Fischer Method)

● GB/T7380 "Determination of Water Content in Surfactants (Karl Fischer Method)

● GB10670 "Determination of Trace Moisture in Fluoromethane for Industrial Use by Karl Fischer Method"

● GB/T606 Chemical reagents General method for determination of moisture Karl Fischer method

● GB/T8350 "Denaturated Fuel Ethanol"

● GB/T8351 "Ethanol Gasoline for Vehicles"

● GB/T3776.1 "Method for determination of moisture content of pesticide emulsifiers"

● GB/T6023 Determination of Trace Moisture in Industrial Butadiene by Karl Fischer Coulombic Method

● GB/T3727 Determination of Trace Water in Ethylene and Propylene for Industrial Use

● GB/T7376 Determination of Trace Moisture in Fluorinated Alkanes for Industrial Use

● GB/T18619.1 Determination of Water Content in Natural Gas Karl Fischer Coulombic Method

● GB/T512 "Method for determination of moisture content in lubricating grease"

● GB/T1600- Method for determination of moisture content in pesticides

● GB/T11146 "Determination of Water Content in Crude Oil (Karl Fischer Coulombic Method)

● GB/T12717 "Test Methods for Acetic Esters for Industrial Use"

● GB/T5074 Determination of moisture content in coking products

● GB/T18826 Industrial 1,1,2-tetrafluoroethane (HFC-134a)
