Fully Automatic Mechanical Impurity Content Analyzer With Balance ASTM D473

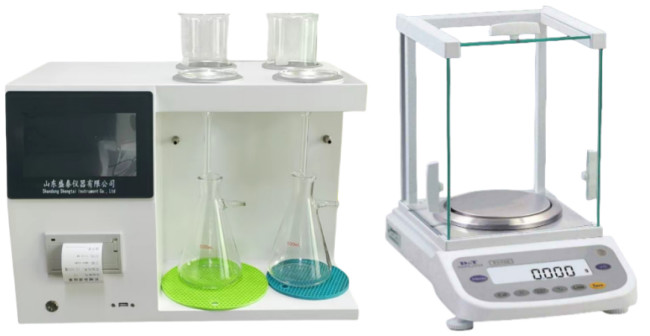

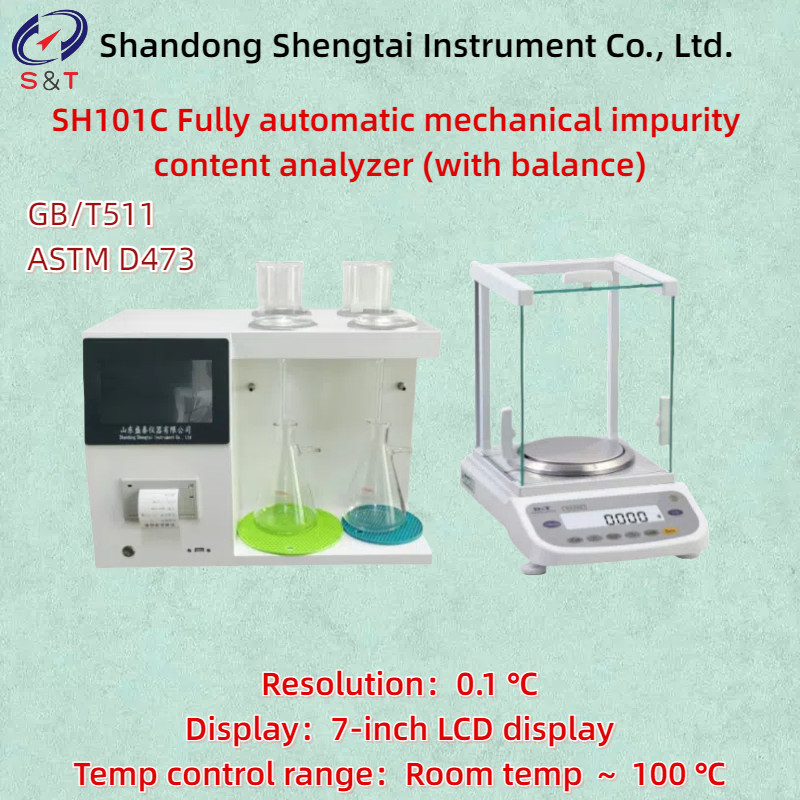

SH101C Fully automatic mechanical impurity content analyzer (with balance)

The SH101C automatic mechanical impurity content analyzer (with balance) is designed according to the requirements of the national standard GB/T511 "Determination of Mechanical Impurities in Petroleum Products and Additives (Weight Method)", and is suitable for determining the content of mechanical impurities in various light and heavy oils, lubricants, and additives in petroleum products. The balance is connected to the fully automatic mechanical impurity analyzer, and the weighing data is automatically imported into the instrument to automatically calculate the measurement results.

Method Summary

Weigh a certain amount of sample and dissolve it in the solvent used. Filter it through a constant weight filter paper or microporous glass filter. Impurities left on the filter paper or microporous glass filter are called mechanical impurities

Execution standard: GB/T 511-2010 "Petroleum and petroleum products and additives - Determination of mechanical impurities"

Performance characteristics:

● Built in oil-free and maintenance free vacuum pump, dual preheating system, one instrument host completes all functions without the need for an external vacuum pump or water bath.

● 7-inch TFT true color touch screen with a resolution of 800 × 480, simple and easy-to-use human-computer interaction.

● Equipped with a built-in oil-free and maintenance free vacuum pump, with program controlled dual filtration.

● 4-channel PID temperature control, precise control of solvent oil preheating temperature and insulation funnel temperature.

Built in formulas, automatically calculate test results, and can save and print data.

● Equipped with automatic data query function, it can easily search for test records and statistical data, and print the results at any time.

● It has a date and password setting function.

● Standard micro printer with automatic measurement and thermal printing

● Display: 7-inch LCD display,

● Resolution: 800 × 480

● Temperature: 4-channel PID temperature control

● Temperature control range: Room temperature to 100 ℃

● Display accuracy: 0.1 ℃

● Resolution: 0.1 ℃

● Printer: 58mm wide miniature thermal printer

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Power: 800W

● Dimensions: 510 × 330 × 320 (excluding foot pads)

● Weight: 16kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

Operation method:

According to the requirements of Table 1 of GB/T 511-2010, add the mixed sample into a beaker and weigh it, then dilute it proportionally with a heated solvent. Place the filter paper with a constant weight in a glass funnel. Filter the sample solution while it is hot. The solution flows into the funnel along the glass rod, and during filtration, the height of the solution should not exceed three-quarters of the filter paper. The residue on the beaker should be washed with hot solvent oil and poured into filter paper. The sample residue and solid impurities adhering to the beaker wall should be loosened with a glass rod and washed onto the filter paper or microporous glass filter with heated solvent oil. Rinse the beaker repeatedly until the solution drops onto the filter paper and evaporates without leaving any oil stains.

If the sample contains a lot of water and is difficult to filter, let the sample solution stand still for 10-20 minutes, then carefully pour the solvent oil solution on top of the sediment in the beaker into the funnel and filter it again. The residue in the beaker should be thoroughly washed into the filter paper with a mixture of ethanol solvent and hot solvent oil.

When measuring samples that are difficult to filter, vacuum suction filtration can be used and a funnel heating bath can be opened.

After filtration, clean the filter paper with sediment using a washing bottle containing solvent oil at a temperature not exceeding 40 ℃ until there are no more sample traces left on the filter paper and the filtered solvent is completely transparent and colorless.

When measuring mechanical impurities in petroleum, additives, and lubricants with additives, it is allowed to rinse the residue with hot distilled water. After rinsing the filter paper with a solvent containing sediment, dry it in air for 10-15 minutes, and then rinse it with 200mL~300mL of distilled water heated to 80 ℃.

After washing the filter paper with sediment, place the filter paper with sediment into the corresponding weighing bottle before filtration, and dry the open weighing bottle in an oven at 105 ℃± 2 ℃ for no less than 45 minutes. Then cool it in a dryer for 30 minutes (the cap of the weighing bottle should be covered), weigh it accurately to 0.0002g. Repeat the drying (the second drying only takes 30 minutes) and weighing operations until the difference between two consecutive weighings does not exceed 0.0004g.

The mechanical impurity content ω% (mass fraction) of the sample is calculated according to the following formula:

In the formula:

● M1- Mass of filter paper and weighing bottle (g)

● M2- Mass of filter paper and weighing bottle with mechanical impurities (g)

● M3- Mass of filter paper and weighing bottle before blank test filtration (g)

● M4- Mass of filter paper and weighing bottle after blank test filtration (g)

● M - Mass of the sample (g)

All the solvent preheating parts mentioned above can be preheated using a beaker heating bath cover, and the temperature can be set arbitrarily between room temperature and 85 ℃. All the above weighing operations can be automatically weighed using an electronic balance connected to the instrument. After weighing each weight value, click on 'Calculate', and the instrument will automatically complete the calculation process and save it. If 'Auto Print' is selected, the test results will also be printed.
