Lubricating Oil Automatic Mechanical Impurity Analyzer ASTM D473 Gravimetric Method

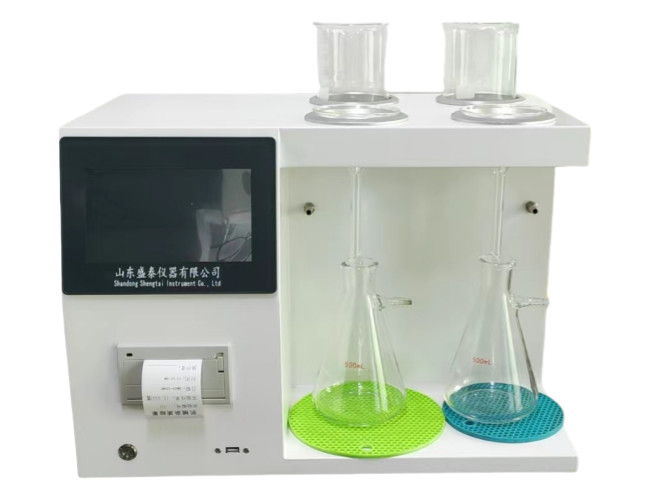

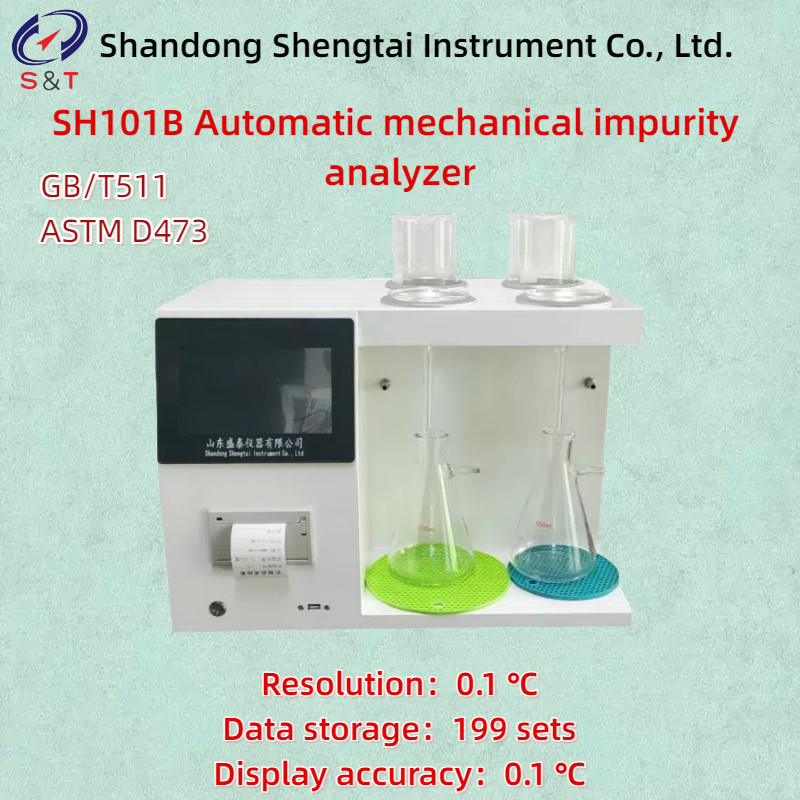

SH101B Automatic mechanical impurity analyzer

The SH101B automatic mechanical impurity content analyzer (without balance) is designed according to the requirements of the national standard GB/T511 "Determination of Mechanical Impurities in Petroleum Products and Additives (Weight Method)". It is suitable for measuring the content of mechanical impurities in various light and heavy oils, lubricants, and additives in petroleum products. After weighing, the weight is input from the touch screen and the instrument automatically prints. ASTM D473

Method Summary

Weigh a certain amount of sample and dissolve it in the solvent used. Filter it through a constant weight filter paper or microporous glass filter. Impurities left on the filter paper or microporous glass filter are called mechanical impurities

Execution standard: GB/T 511-2010 "Petroleum and petroleum products and additives - Determination of mechanical impurities"

Performance characteristics:

● Built in oil-free and maintenance free vacuum pump, dual preheating system, one instrument host completes all functions without the need for an external vacuum pump or water bath.

● A 7-inch true color touch screen with a resolution of 800 × 480, featuring simple and easy-to-use human-computer interaction.

● Equipped with a built-in oil-free and maintenance free vacuum pump, with program controlled dual filtration.

● 4-channel PID temperature control, precise control of solvent oil preheating temperature and insulation funnel temperature.

Built in formulas, automatically calculate test results, and can save and print data.

● Equipped with automatic data query function, it can easily search for test records and statistical data, and print the results at any time.

● It has a date and password setting function.

● Standard micro printer with automatic measurement and thermal printing

● Temperature: 4-channel PID temperature control

● Temperature control range: Room temperature to 100 ℃

● Display accuracy: 0.1 ℃

● Resolution: 0.1 ℃

● Printer: 58mm wide miniature thermal printer

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Power: 800W

● Dimensions: 510 × 330 × 320 (excluding foot pads)

● Weight: 16kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
