Engine Coolant Boiling Point Tester -5 ℃ -300 ℃ ASTM D1120 Tap Water Circulation

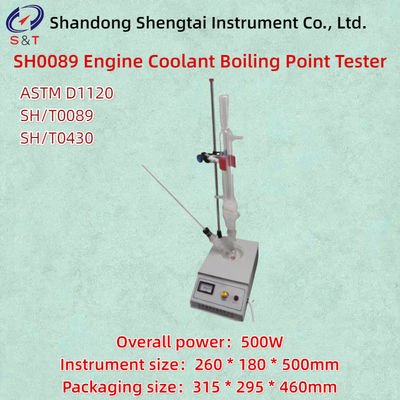

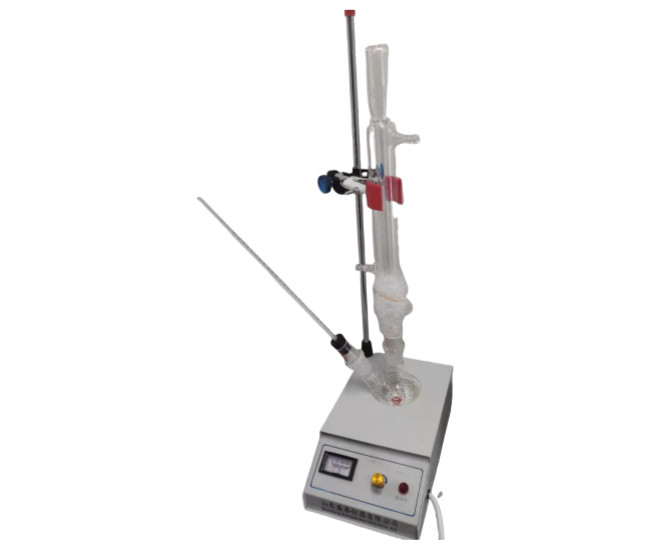

SH0089 Engine Coolant Boiling Point Tester

The SH0089 engine coolant boiling point tester is used to measure the equilibrium boiling point of engine coolant and is suitable for measuring diluted or concentrated engine coolant.

Applicable standards: ASTM D1120 SH/T0089 "Boiling point of engine coolant" or SH/T0430 "Determination of equilibrium reflux boiling point of brake fluid"

Performance characteristic parameters

● Electric heating sleeve, no open flame, safe and environmentally friendly

● Integrated structure, easy to operate;

● Precision potentiometer adjusts the heating rate;

● It is very convenient to access the control box;

● Circulating cooling of tap water;

● High power solid-state regulator controls the heater;

● The surface is treated with electrostatic spraying for easy cleaning;

● Applicable standards: ASTM D1120 SH/T0089 or SH/T0430

● Temperature control method: Solid state voltage regulator

● Distillation flask: made of hard glass, heat-resistant to over 500 degrees Celsius. And equipped with a thermometer socket, meeting the requirements of SH/T0089.

● Temperature gauge: Temperature measurement range -5 ℃ -300 ℃, small division value 1.0 ℃, in accordance with the provisions of the national standard GB514 "Technical Conditions for Liquid Thermometers for Petroleum Product Testing".

● Reflux condenser tube: 200mm long, in compliance with SH/T0089 standard requirements.

● Overall power: 500W

● Heating method: electric heating sleeve heating

● Cooling method: tap water circulation

● Instrument size: 260 * 180 * 500mm

● Instrument weight: 2kg

● Packaging size: 315 * 295 * 460mm

● Packaging weight: 4.78kg cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee

Packing list
