Engine Coolant Corrosion Tester SH085 Petrochemical Industry Room Temp ～ +100 ℃± 0.1 ℃

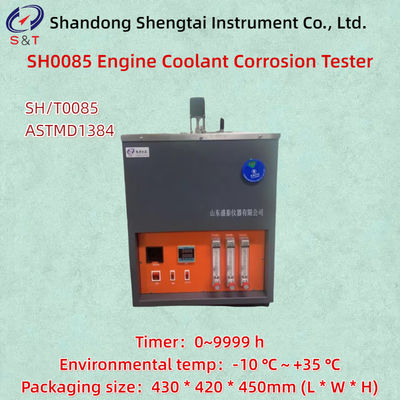

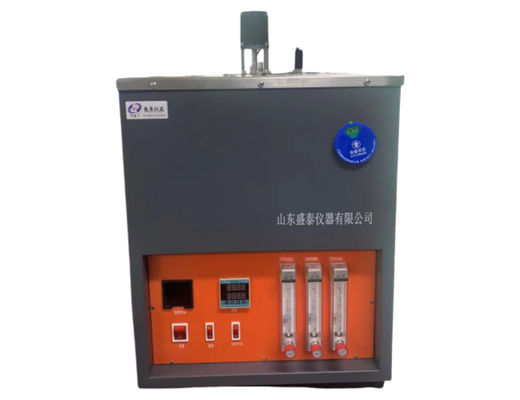

SH0085 Engine Coolant Corrosion Teste

The SH0085 Antifreeze Corrosion Tester is designed and manufactured according to the requirements of the petrochemical industry standard SH/T0085 "Determination of Corrosion of Engine Coolants" in the People's Republic of China. It is suitable for measuring the degree of corrosion of typical metal test pieces by high boiling point and low boiling point engine coolants and their concentrates according to the measurement methods of SH/T0085 and ASTMD1384 standards. After upgrading, the SH0085 Anti Corrosion Tester comes with a silent air compressor, eliminating the need for manual air supply.

Determination of Corrosion of High Boiling Point and Low Boiling Point Engine Coolants and Their Concentrates on Typical Metal Test Pieces

Main technical specifications and parameters

● Working power supply: AC220V ± 10% 50Hz

● Beaker: made of heat-resistant glass, high type without mouth 1000ml, in compliance with SH/T0085 standard

● Gas diffusion tube: The diffusion head is made of sand core glass, and the diameter is made of heat-resistant glass

● Reflux condenser tube: water-cooled type, with a sleeve length of not less than 400mm

● Equipped with a silent air compressor, there is no need to manually equip the air source.

● Temperature control range: Room temperature++100 ℃± 0.1 ℃

● Air flow meter: flow range is 30~300ml/min

● Timer: Timing range 0~9999 h

● Environmental temperature: -10 ℃~+35 ℃

● Relative humidity: ≤ 85%

● Power consumption of the whole machine: not exceeding 2000W

● Number of detection holes: 3 holes

● Packaging size: 430 * 420 * 450mm (L * W * H)

● Packaging weight: 34kg

● Instrument size: 350 * 370 * 480mm (L * W * H)

● Instrument weight: 28kg

Test piece size and material:

● SH/T0085 Engine Coolant Corrosion Determination Method (Glassware Method) Test Piece

● 50 * 25 * 2mm (20 # steel, brass sheet, purple copper sheet)

● 50 * 25 * 3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)

● Single center hole: diameter 7.0mm

Supporting products:

● Brass gaskets, insulation gaskets, steel gaskets, insulation sleeves, brass brackets

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
