Lubricating Oil Evaporation Loss Tester PID Temp Control ASTM D5800 100-260 ℃

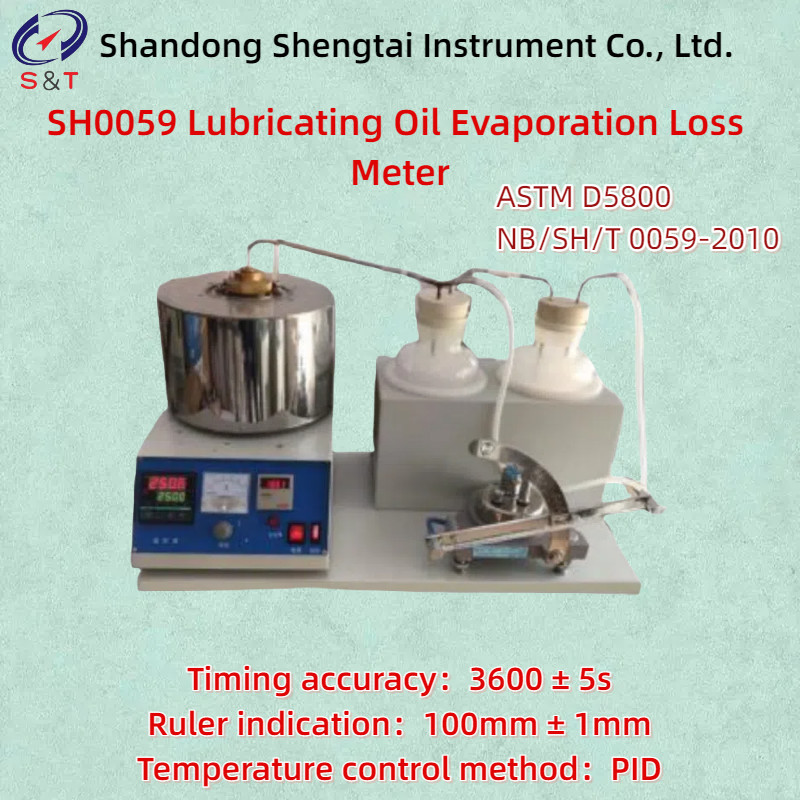

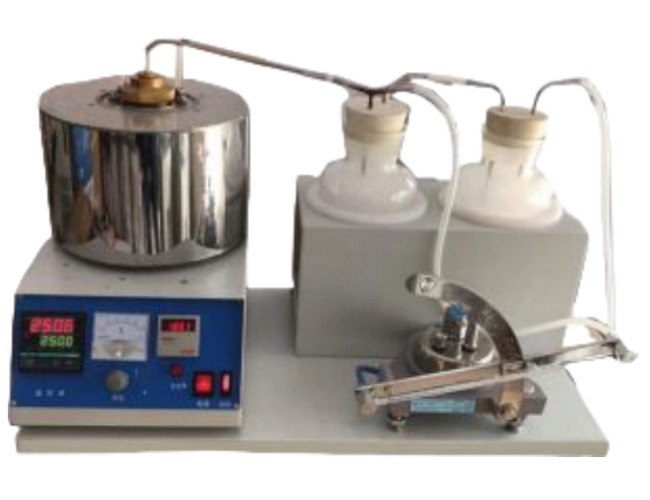

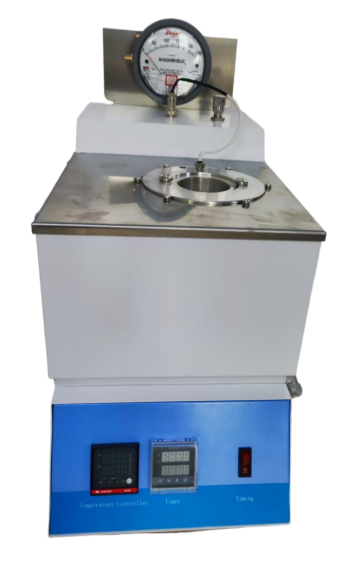

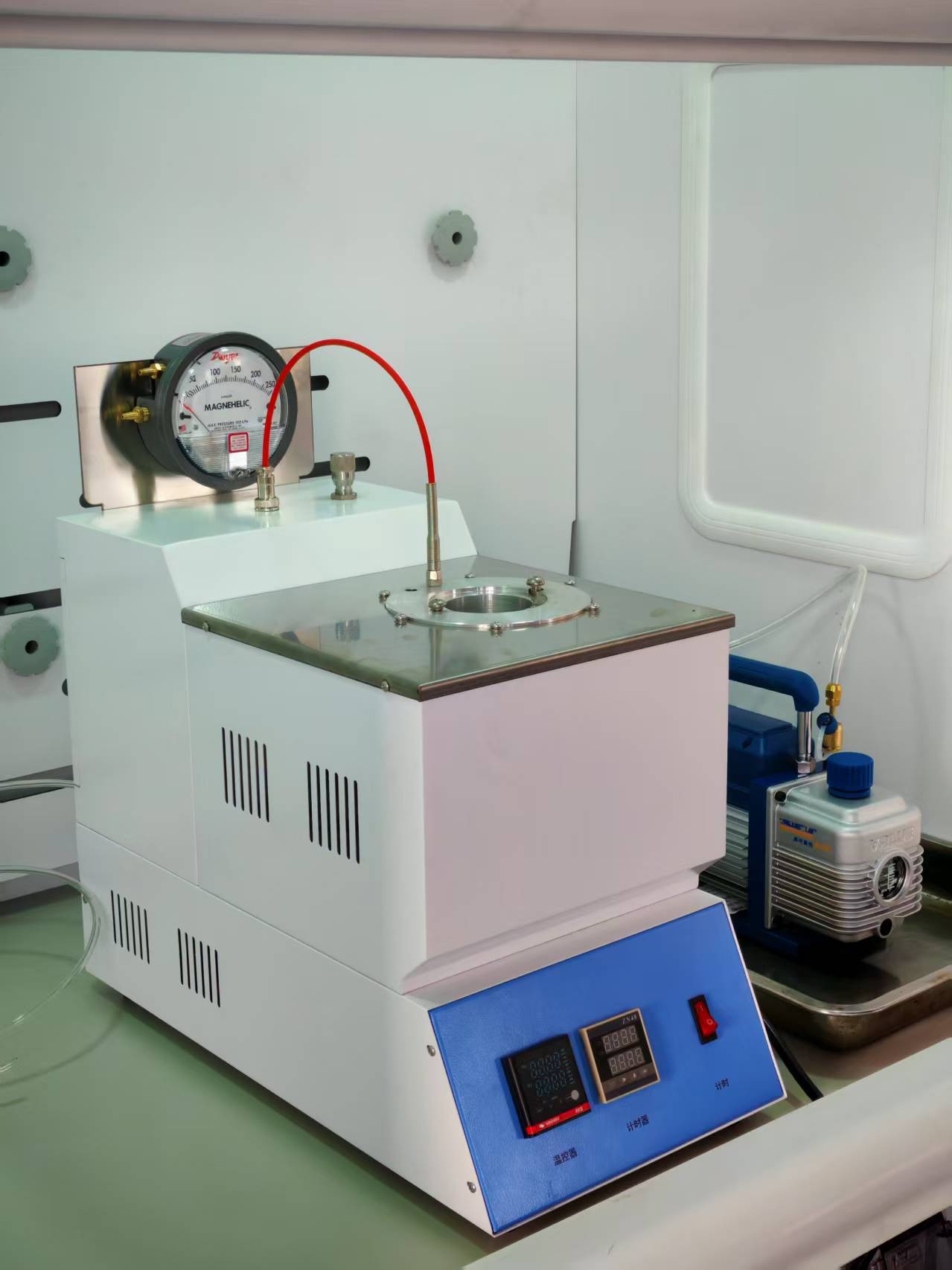

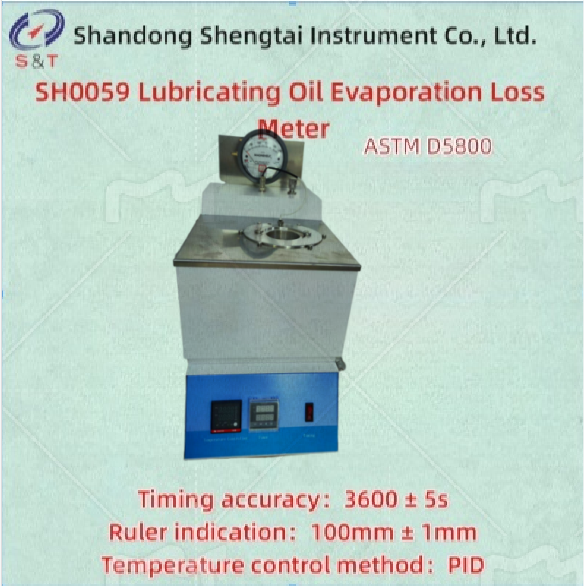

SH0059 Lubricating Oil Evaporation Loss Meter

SH0059 Lubricating Oil Evaporation Loss Meter is developed and produced by our company in accordance with the requirements of the Chinese petrochemical industry standard NB/SH/T 0059-2010 "Determination of Lubricating Oil Evaporation Loss (Noak Method)" ASTM D5800. Suitable for heating lubricating oil and lubricating base oil under certain conditions for 1 hour, and the evaporated oil is carried out by air. Measure the evaporation loss of the sample based on the difference in sample mass before and after heating. It mainly consists of three parts: heating system, control system, and constant airflow pressure control system. Its scope of application is to measure the evaporation loss of lubricating oil and lubricating base oil.

Technical Parameter

● Execution standard: SH/T0059 Lubricating oil evaporation loss determination method (Noak method)

● Alarm function: Automatic alarm prompt when the temperature control reaches a constant temperature

● Timing time: Display the time the evaporation crucible stays in the heated aluminum bath

● Temperature control method: The temperature control method adopts PID regulation

● Vacuum pump: The start or stop of the vacuum pump is controlled by the timing key

● Temperature measurement range: 100-260 ℃

● Temperature control point and accuracy: 250 ℃± 0.5 ℃

● Pressure constant point and accuracy: 196Pa ± 2 Pa (scale indicating 100mm ± 1mm)

● Timing accuracy: 3600 ± 5s

● Power: Host 1100W, vacuum pump 40W

● Working power supply: AC220V ± 10% 50Hz

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
