Lubricating Grease Capillary Similarity Meter ГОСТ7163 Spring Group Strength 60Kg/Cm2

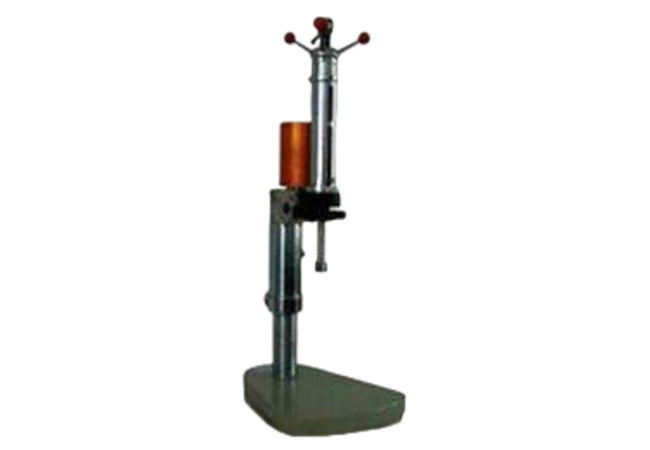

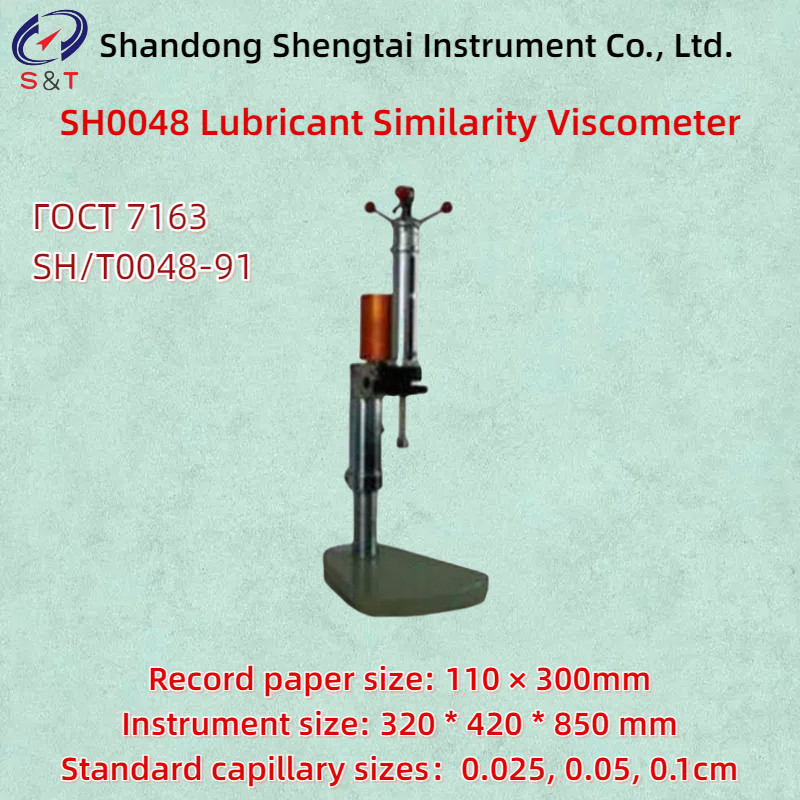

SH0048 Lubricant Similarity Viscometer

The SH0048 grease similarity viscosity meter is used to determine the similar viscosity of lubricating grease according to SH/T0048-91 "Method for Determining Similar Viscosity of Lubricating Greases". Instrument equivalent to the standard of ГОСТ 7163 "Determination of Similar Viscosity of Lubricating Greases".

Similar viscosity refers to the viscosity measured at a certain temperature and shear rate. The similar viscosity of lubricating grease increases and decreases with the increase and decrease of shear rate.

The low-temperature viscosity of lubricating grease is expressed as low-temperature similar viscosity.

Performance characteristic parameters:

● Adopting a spring pressure capillary viscometer

● The instrument can be adjusted in height and direction on the column at will

● The recording cylinder can have three speeds to choose from

● Standard capillary sizes: 0.025, 0.05, 0.1cm

● Maximum strength of spring assembly: 60Kg/cm²

● Record paper size: 110 × 300mm

● Compare the rotational speed and linear speed of each gear on the recording paper

● Instrument size: 320 * 420 * 850 mm

● Weight: 18kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

SH0048-40/-70 Low Temperature Refrigeration Cycle Device

The similar viscosity refrigeration cycle device is based on compressor refrigeration to achieve low-temperature and constant temperature circulation in the liquid tank. The instrument adopts high-precision acquisition circuit and achieves high-precision stable temperature control through PID control algorithm.

Fully enclosed compressor unit refrigeration, with multiple protection devices for overheating and overcurrent in the refrigeration system

● Built in constant temperature cooler with similar viscosity to ensure temperature stability.

● Adopting PID automatic control system, temperature digital display

● Working power supply: AC220V ± 10% 50Hz

● Cold bath temperature control:+50 ℃～-40 ℃ (or customized+50 ℃～-70 ℃)

● Refrigeration system: New type of refrigeration compressor (or dual compressor refrigeration)

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption: ＜ 1000W

● Self provided consumables required: alcohol

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
