Vehicle Gear Oil Groove Point Tester SH0030 Metal Bath SH/T 0030 Room Temp ～ -70 ℃

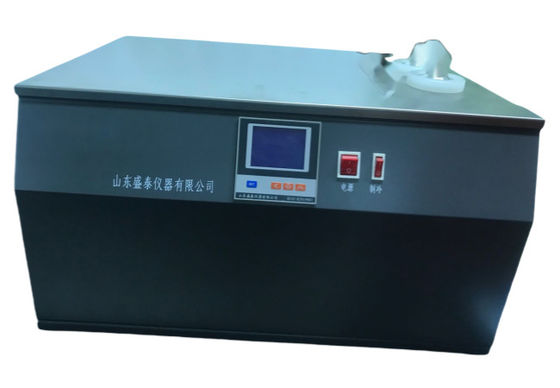

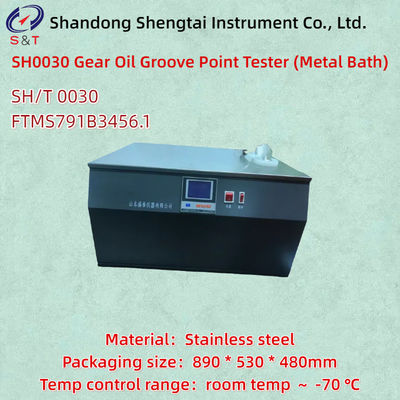

SH0030 Gear Oil Groove Point Tester (Metal Bath)

The SH0030 gear oil grooving point measuring instrument is designed and manufactured in accordance with the requirements of the standard SH/T 0030-1990 "Determination Method for Groove Points of Vehicle Gear Oil" and FTMS791B3456.1, and is suitable for measuring the groove points of gear oil according to the methods specified in the above standards.

Main technical specifications, parameters, and performance characteristics:

● Refrigeration method: using compressor refrigeration (dual compressors)

● Output mode: small LCD display, good temperature control stability

● Refrigeration medium: Metal bath refrigeration, no need to replace the medium with alcohol, rapid cooling.

● Working power supply: AC220V ± 10% 50Hz

● Temperature control range: room temperature～ -70 ℃

● Groove forming steel sheet: size 152.4mm * 191m * 3.2mm, made of stainless steel

● Number of experimental holes: single slot single hole

● Temperature control accuracy: ± 0.5 ℃

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption: ＜ 1500W

● Packaging size: 890 * 530 * 480mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
