Fully Automatic Constant Temperature Cone Needle Penetration Tester ISO 2137-2007

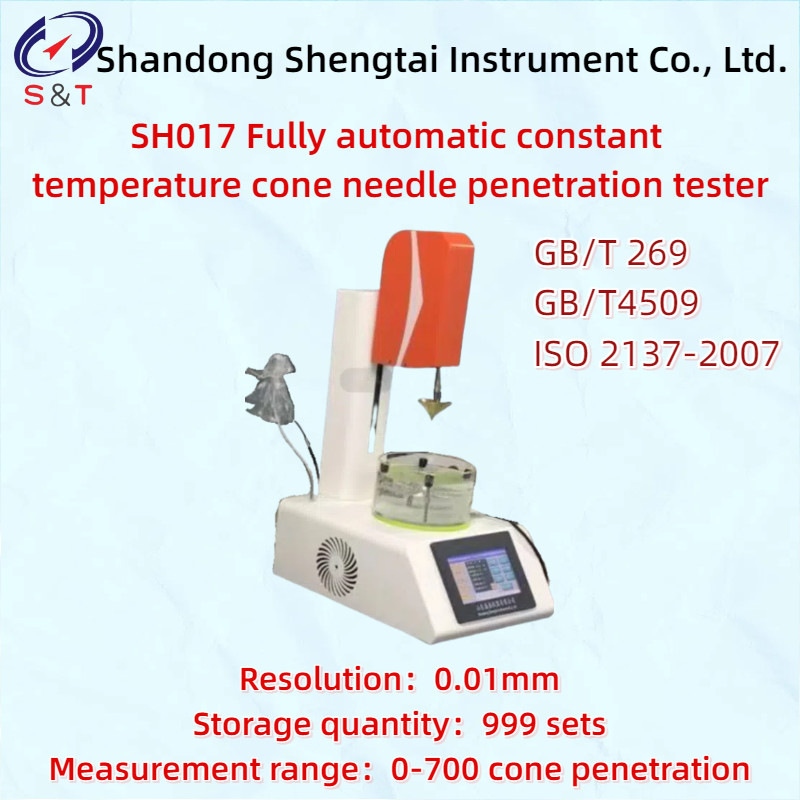

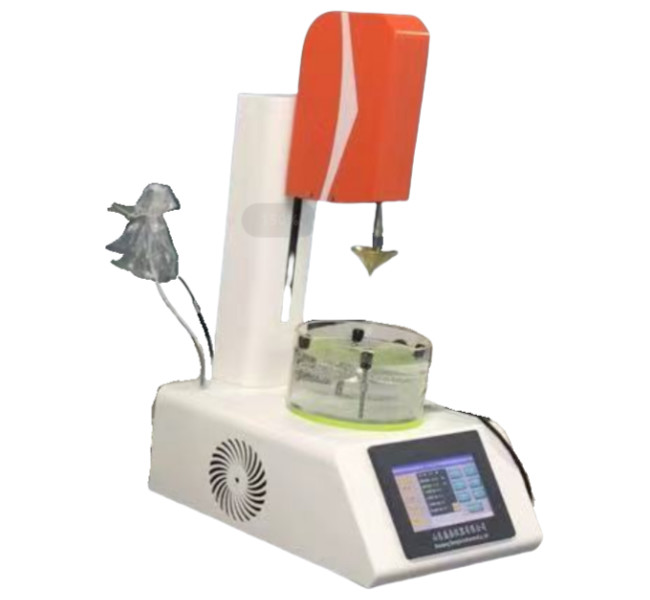

SH017 Fully automatic constant temperature cone needle penetration tester

The SH017 fully automatic constant temperature cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the Chinese standards GB/T269 "Determination of Cone Penetration of Lubricating Greases and Stone Greases" and GB/T4509 "Determination of Cone Penetration of Petroleum Asphalt". It is mainly suitable for testing the cone penetration of lubricating grease. Transportation and highway engineering, as well as other industrial sectors, can be widely applied.

ISO 2137-2007 Petroleum products and lubricants, GB/T22459.1 Refractory slurries

Main technical features and parameters

● Upgrade to 7-inch TFT color LCD display;

● Constant temperature cooling method: Built in semiconductor cooling, can be heated in winter and cooled in summer.

● Detection method: high-precision displacement sensor

● Measurement range: 0-700 cone penetration

● Resolution: 0.01mm

● Cone penetration accuracy: ± 1 cone penetration degree

● Standard cone: 102.5 ± 0.05g, in compliance with the specifications of the national standard GB/T269

● Standard needle: (2.5 ± 0.05) g (optional)

● Other: Equipped with a cold light source for easy use and operation

● Storage method: The experimental results can store 1999 sets of historical data for easy retrieval

● Result output: Equipped with USB output function, output to PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● Standard printing: Standard micro printer with automatic measurement and thermal printing

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Reference for cone selection method

All lubricating grease; Ordinary cone penetration; Full-size cone

Strict standard testing is required

7407 gear lubricating grease

● 1/4 working cone penetration value; 1/4 actuator and 1/4 cone are required

Extreme pressure composite lithium based grease SHT0535

● Working cone penetration value; Need to be equipped with a grease actuator and a full-size cone

● Extend the working cone penetration value; Need to be equipped with 100000 shearing machines and full-size cones

General lithium based grease GB7324

● The penetration value of the working cone needs to be equipped with a grease actuator and a full-size cone

● Extending the working cone penetration value requires equipping a 100000 time shearing machine and a full-size cone

Extreme pressure lithium based grease GBT 7323

● Working cone penetration value; Need to be equipped with a grease actuator and a full-size cone

● Extend the working cone penetration value; Need to be equipped with 100000 shearing machines and full-size cones

Aluminum based grease SHT0371

● Working cone penetration value; Need to be equipped with a grease actuator and a full-size cone

Composite aluminum based grease SHT0378

● Working cone penetration value; Need to be equipped with a grease actuator and a full-size cone

● Extend the working cone penetration value; Need to be equipped with 100000 shearing machines and full-size cones

Calcium based lubricating grease GB491

● Working cone penetration value; Need to be equipped with a grease actuator and a full-size cone

● Extend the working cone penetration value; Need to be equipped with 100000 shearing machines and full-size cones

Sodium based lubricating grease GB 492

● Working cone penetration value; Need to be equipped with a grease actuator and a full-size cone

● Extend the working cone penetration value; Need to be equipped with 100000 shearing machines and full-size cones

● Roller stability performance; Roller stability tester+cone penetration use

Needle body selection

Asphalt penetration value; GB/T4509; Asphalt penetration rate; Standard needles are required

Paraffin penetration rate; GB/T 4985.; Paraffin penetration rate; Need to be equipped with paraffin needles

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
