10-60 ℃ Fully Automatic Paraffin Penetration Tester ASTM D1321 Sliding rod 47.5±0.05g

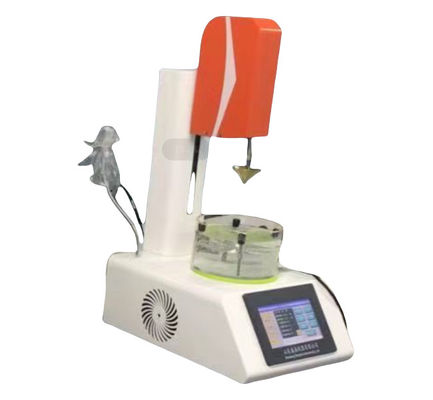

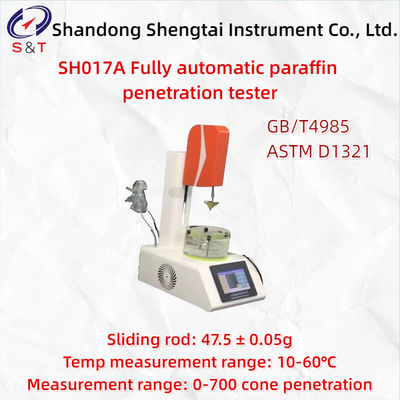

SH017A Fully automatic paraffin penetration tester

The SH017A automatic paraffin penetration tester/instrument is designed and manufactured according to the requirements specified in the GB/T4985-2021 standard. It is a specialized instrument for testing paraffin penetration, integrating mechanical, optoelectronic, and micro detection technologies. The lifting arm automatically lifts and lowers, the touch screen fine tunes the distance, automatically determines the result, and automatically prints.

The standard test conditions are as follows: the petroleum wax sample is placed in a constant temperature water bath maintained at the test temperature, and a standard needle assembly with a total load of 100 grams ± 0.05 grams is vertically moved without obvious friction. The depth at which the petroleum wax sample is vertically penetrated within 5 seconds is called the petroleum wax needle penetration to determine the hardness of the petroleum wax.

Technical Parameter

● Compliant with standard: GB/T4985-2021 ASTM D1321

● Measurement range: 0-700 cone penetration 1/10mm (0-70mm)

● Detection method: high-precision displacement sensor

● Temperature measurement range: 10-60℃

● Sliding rod: 47.5 ± 0.05g

● Standard needle tip diameter: Ø 0.15 ± 0.01

● Standard needle tip angle: 9°10 '± 15'

● Standard needle mass: 2.5g ± 0.05g

● Weight of weight: 50g

● Data storage: USB data export function

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● Data protection: with date and password setting function

● Standard printing: Standard micro printer with automatic measurement and thermal printing

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
