Fully Automatic Silicone Cone Penetration Tester ISO 2137 Data Storage 199 Sets

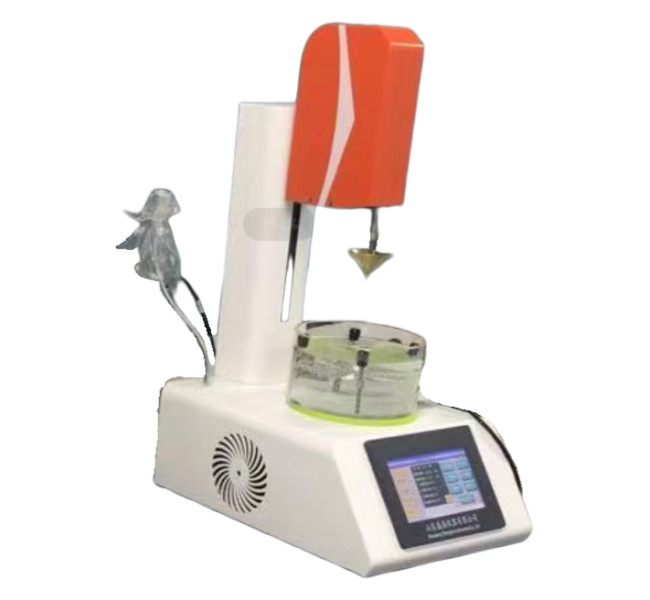

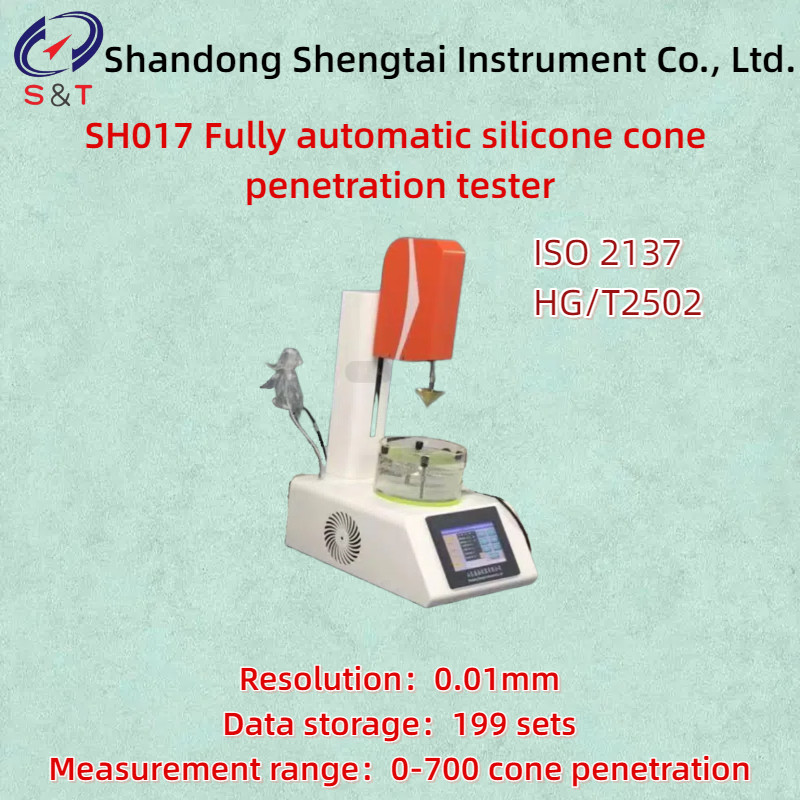

SH017 Fully automatic silicone cone penetration tester

The SH017 automatic silicone cone penetration tester is designed and manufactured according to the requirements specified in the Chinese chemical industry standard HG/T2502-1993 "5201 Silicone Resin" GJB3382-1998 "Thermal Conductive Silicone Resin Specification" and the industry standard MZ_T 154-2020 for fake breasts. It is a specialized instrument for testing the cone penetration of silicone grease.

Suitable for silicone grease made by thickening dimethyl silicone oil with silicon dioxide by gas-phase method. It is also suitable for detecting various thermal conductive pastes, heat dissipation pastes, thermal conductive silicone, heat dissipation silicone, thermal conductive silicone grease, heat dissipation silicone grease, thermal conductive mud, potting glue, insulation paste, etc., as well as cone penetration suitable for artificial breasts mainly made of silicone.

According to the standard requirements, the S-shaped cone penetration value should be 270-330; The F-type cone penetration value should be 320-380; The N-type cone penetration value should be 90-120. Cone penetration refers to the use of free fall motion to release a certain mass of cone from a cone penetration meter downwards at 25 ℃, and measure the depth of penetration into the test sample within 5 seconds after the cone is released.

The automatic silicone cone penetrometer is based on a microprocessor and integrates mechanical, optoelectronic, and micro detection technologies. The lifting arm automatically lifts and lowers, the touch screen fine tunes the distance, automatically determines the results, and automatically prints.

Compliant with standards:

● JT/T 617.2-2018 "Rules for Road Transport of Dangerous Goods"

● ISO 2137-2020 "Petroleum products and lubricants - Determination of cone penetration of lubricating oils and Vaseline"

● YY0717-2009 "Dental Root Canal Closure Materials"

● GB/T 26513-2011 lipstick

● GJB 785.3-89 "Test method for performance of non vulcanized rubber sealants - Needle penetration and cone penetration tests"

● GB/T22459.1-2008 "Refractory slurries - Part 1: Test method for consistency (cone penetration method)"

Technical performance characteristics:

● Compliant with standards: HG/T2502, GJB3382, MZ_T 154

● 7-inch TFT color LCD display;

● Constant temperature cooling method: semiconductor cooling.

● Detection method: high-precision displacement sensor.

● After upgrading, it can store 199 sets of historical data for easy querying; Simultaneously capable of USB output function

● Standard micro printer with automatic measurement and printing

● Main technical parameters and indicators

● Measurement range: 0-700 cone penetration;

● Experiment time can be set arbitrarily

● Constant temperature cooling method: semiconductor cooling

● Resolution: 0.01mm

● Cone penetration accuracy: ± 1 cone penetration degree;

● Temperature measurement range: 10-50 degrees (equipped with semiconductor cold cycle device, can be heated or cooled)

Cone selection:

● Full size cone: The mass of the full-size cone is 102.5g ± 0.05g, and the mass of the matching cone rod is 47.5g ± 0.05g; HG/T2502 standard vertebral body

● 1/2 size cone: mass 22.5g ± 0.025g, matching cone rod mass 15g ± 0.05g MZ_T 154 standard experimental vertebral body

● 1/4 cone and cone rod total mass: 9.38g ± 0.025g, GJB3382-1998 "Thermal Conductive Silicone Resin Specification" for experimental cone

● Other: Equipped with a cold light source for easy use and operation.

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Data protection: equipped with date and password setting function.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
