Digital Electric Furnace Residual Carbon Analyzer SH/T0170 Range 0~520 ℃

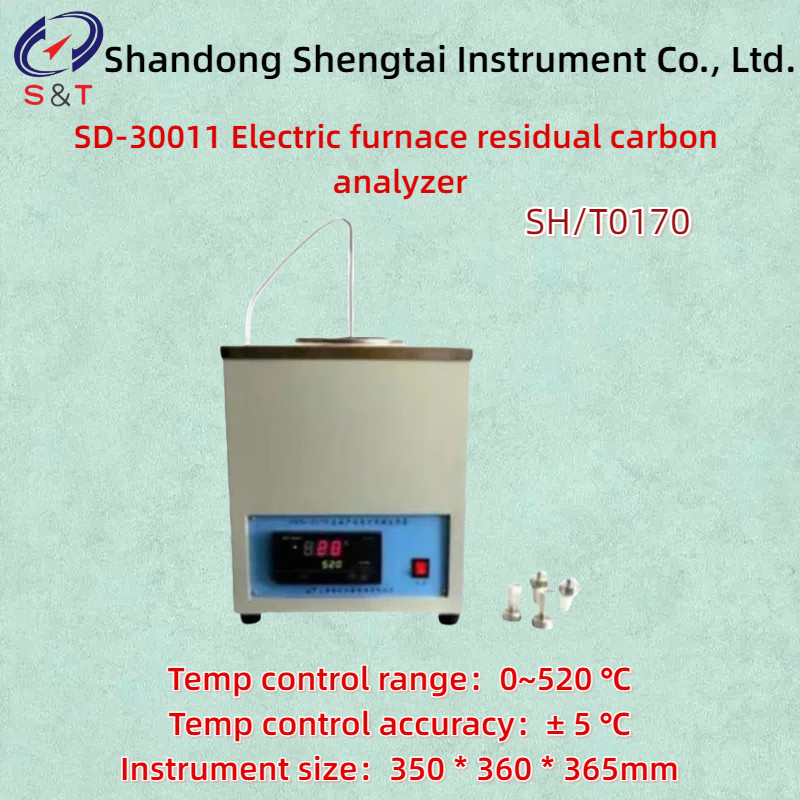

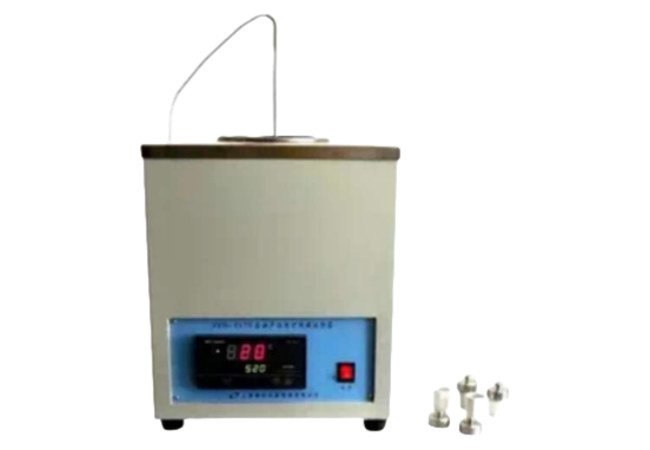

SD-30011 Electric furnace residual carbon analyzer

The SD30011 digital electric furnace residual carbon meter is designed and manufactured according to the requirements of the industry standard SH/T0170 "Residual Carbon Determination Method (Electric Furnace Method)" of the People's Republic of China, and is suitable for use in accordance with the SH/T0170 standard.

The residual carbon meter is used to determine the residual carbon of lubricating oil, heavy liquid fuel, or other petroleum products.

Main technical performance parameters

● This instrument adopts an integrated structural design, with the heating furnace and controller forming a complete whole.

● Adopting digital temperature control instruments.

● The maximum temperature of the heating furnace can reach 520 ℃, and the temperature control accuracy within the full temperature control range can reach ± 5 ℃, meeting the requirements of the experiment.

● The instrument is a desktop structure, with a heating furnace consisting of four holes, which can simultaneously place four samples for testing, resulting in high testing efficiency.

● Working power supply: 220V ± 10% 50Hz

● Heating method: electric furnace

● Heating power: 1900W

● Temperature control range: 0~520 ℃

● Temperature control accuracy: ± 5 ℃

● Steel bath form: one furnace with four holes

● Environmental temperature: Room temp~35 ℃

● Relative humidity: ≤ 85%

● Ceramic crucible size: upper inner diameter of 27mm to 28mm; Outer diameter: 30mm, bottom outer diameter 20mm; height: 41mm

● Power consumption of the whole machine: ＜2000W

● Instrument size: 350 * 360 * 365mm

● Weight: 29kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
