Liquid Petroleum Product Hydrocarbon Tester ASTM D1319 Fluorescent indicator adsorption method

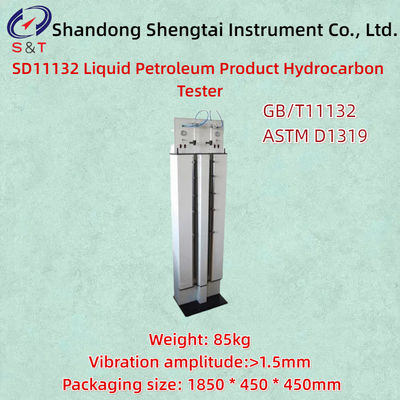

SD11132 Liquid Petroleum Product Hydrocarbon Tester

The SD11132 liquid petroleum product hydrocarbon analyzer is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T 11132-2022 "Determination of Hydrocarbons in Liquid Petroleum Products (Fluorescent Indicator Adsorption Method)" ASTMD1319. It is suitable for displaying the main hydrocarbons in liquid petroleum products on a silica gel adsorption column using fluorescent indicators according to the method specified in the standard GB/T 11132, calculating their volume percentages, and using them as quality measurement indicators for fuel oils such as engine fuel and aviation fuel.

This instrument is a specialized device used to determine the volume fractions of aromatic hydrocarbons, olefins, and saturated hydrocarbons in petroleum fractions.

Main performance parameters

● This instrument adopts a precision adsorption column imported from the United States, with imported fluorescent indicators and silicone gel to ensure data reliability. The integrated vertical structure design does not require installation and can be directly placed in a suitable indoor location for use.

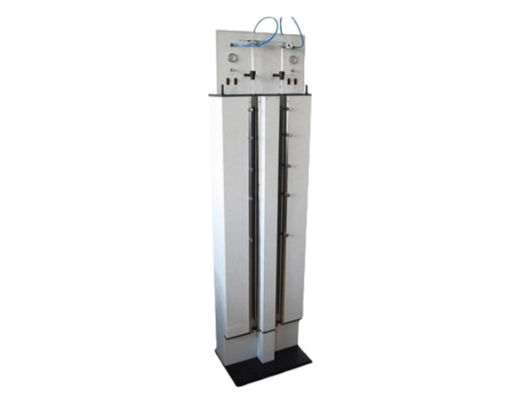

● This instrument consists of an air circuit system, a vibration part, a ruler and scale indicator, system lighting, ultraviolet detection, and other components. It can be used for silicone filling, vibration, sample loading, and reading test results in one go.

● Directly using two imported precision inner diameter glass tube adsorption columns (standard wall glass tube adsorption columns are no longer equipped), which is more convenient for users to use.

● Equipped with a UV resistant design and a built-in fixed oscillator, it can automatically clean and ensure the safe use of the glass adsorption column

● Power supply voltage: AC220V ± 5% 50HZ

● Pressure measurement: Dual stage regulator, pressure regulation range (0kPa-103 kPa) or wider regulation range

● Electric oscillator: Two channels are separately controlled

● UV light source tube: length 1220mm, wavelength 365 ± 5nm

● Lighting fixtures: 1220mm long, 40W power;

● Syringe: 1mL, with a division of 0.01mL or 0.02mL

● Analysis section inner diameter: 1.6-1.65mm

● Gas supply method: Air compressor

● Vibration amplitude:>1.5mm

● Environmental temperature: 5-35 ℃

● Relative humidity:<85%.

● Packaging size: 1850 * 450 * 450mm

● Weight: 85kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
