Lubricating Oil Emulsion Resistance Tester 4500rpm ±0.5℃ Accuracy ASTM D2711

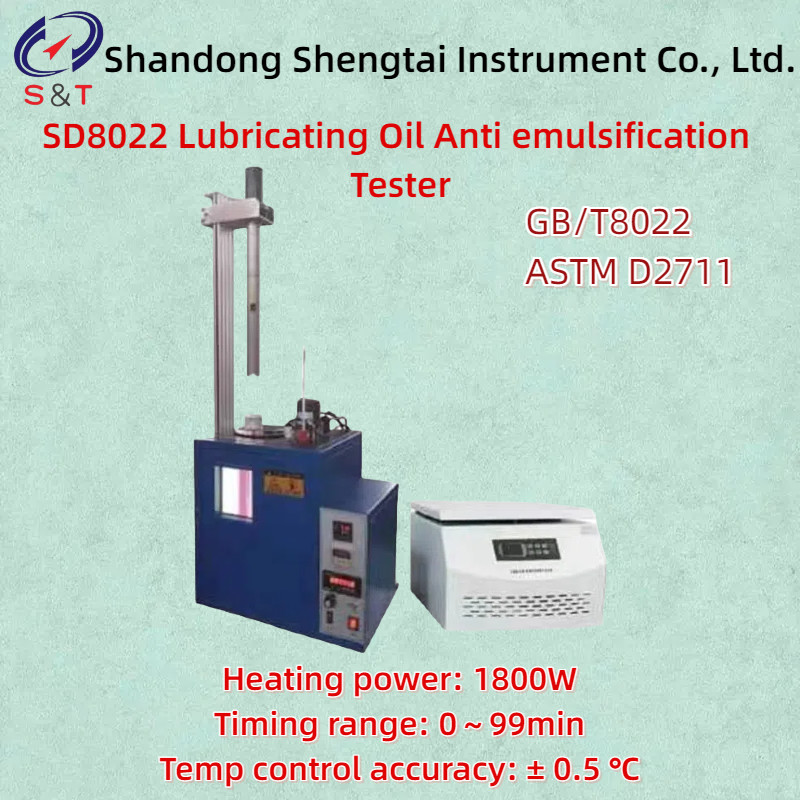

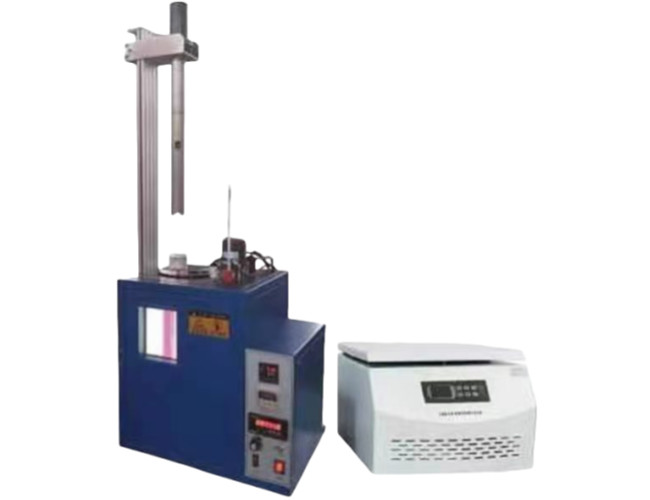

SD8022 Lubricating Oil Anti emulsification Tester

The SD8022 lubricant emulsion analyzer is suitable for measuring the ability of oil and water to separate from each other in medium and high viscosity lubricants. This method has guiding significance for the determination of the anti emulsification performance of lubricating oils that are susceptible to water pollution and may encounter water in oil emulsions generated by pumping and circulating turbulence. Lubricating oil emulsion tester complies with GB/T8022 and ASTM D2711

Instrument characteristics

1. Using digital temperature display, easy to operate.

2. The instrument can simultaneously separate one sample.

3. Adopting PID temperature control technology, the temperature control accuracy is high.

4. Adopting imported PT100 temperature sensor with high temperature measurement accuracy.

5. Temperature control values and other parameters can be set.

Technical indicators:

● Sample hole: 1

● Temp control range: Room temp～100 ℃

● Temp control accuracy: ± 0.5 ℃

● Timing range: 0～99min

● Mixing motor speed: 4500rpm

● Heating power: 1800W

● Power supply voltage: AC220V ± 10%

● Frequency: 50HZ ± 5%

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
