ASTM D1500 Petroleum Product Colorimeter Internal SD6540 Lubricating Oil Testing

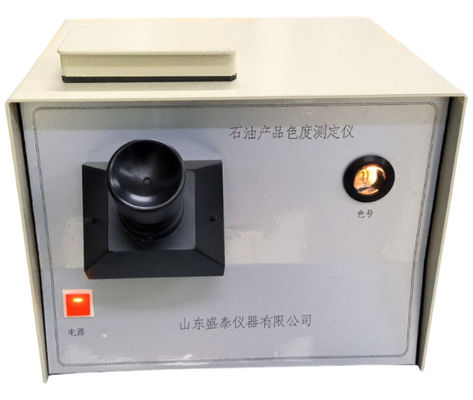

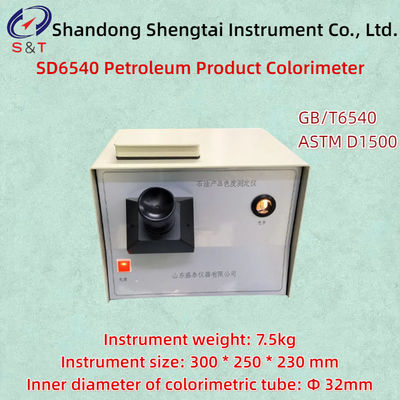

SD6540 Petroleum Product Colorimeter

The SD6540 petroleum product colorimeter is designed and manufactured in accordance with SH/T0168-92 "Petroleum Product Colorimetry Method" and GB/T6540 standards. The measurement method involves injecting the petroleum product sample to be measured into a colorimetric tube and comparing it with a standard color chart to determine its chromaticity color number. A colorimeter is used to measure the color of various lubricating oils and other petroleum products

Performance characteristics and parameters:

● The observation eyepiece consists of concave and convex mirrors, which can simultaneously see two semi-circular colors

● Optical eyepieces have the ability to adjust light and focus, making them easy to use

● Reasonable structural design, easy to operate and use

● The color code corresponds to ASTM D1500, GB/T6540, and ISO color codes

● Light source: 220V, 100W, internal frosted milk shell bulb with a temperature of 2750 ± 50K

● Colorimetric tube: a colorless flat bottomed glass tube with an inner diameter of 32mm and a height of 120-130mm

● Standard color palette: 26 Φ 14 light holes, of which 25 are sequentially equipped with standard color glass sheets of 1-25 color numbers, and the 26 holes are blank

● Instrument size: 300 * 250 * 230 mm

● Instrument weight: 7.5kg

● Packaging size: 370 * 340 * 350mm

● Packaging weight: 9kg cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
