ASTM D86 Double hole petroleum product distillation analyzer Temp control accuracy 0.5

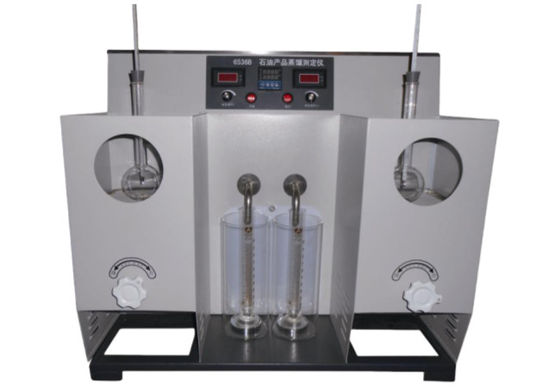

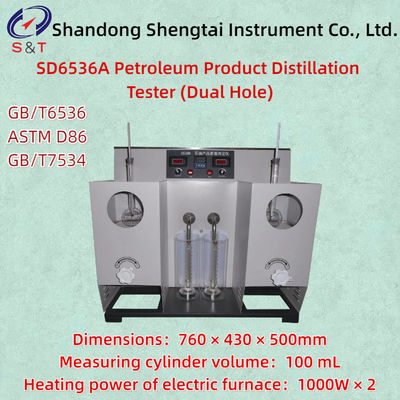

SD6536A Petroleum Product Distillation Tester (Dual Hole)

The SD6536A Petroleum Product Distillation Boiling Range Tester (Dual Hole) is designed and manufactured in accordance with the requirements specified in the Chinese standards GB/T6536 "Petroleum Product Distillation Determination Method" and GB/T7534-2004 "Determination of Boiling Range of Volatile Organic Liquids for Industrial Use"

Suitable for distillation determination of gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, diesel, distillate fuels, and similar petroleum products.

Distillation range refers to the temperature range from the initial boiling point to the final boiling point, which represents the evaporation characteristics obtained by distilling oil products under specified conditions.

Boiling range: The temperature at which the first drop of liquid begins to drip from the condenser tube during distillation is the initial distillation temperature; The temperature near the end of distillation is the final distillation temperature, and the range between the two temperatures is the boiling range

Main technical parameters

● Working power supply: AC220V ± 10% 50HZ

● Heating power of electric furnace: 1000W × 2.

● Measuring cylinder volume: 100 mL

● Graduated cylinder: 1 mL

● Distillation flask: 125mL, in accordance with the requirements of GB/T6536.

● Temperature gauge: fully immersed rod type, with two scale ranges of (-2~+300) ℃ and (-2~+400) ℃, with a scale of 1 ℃ (the temperature gauge can be selected according to needs).

● Electric furnace movable plate: made of silicon carbide plate, with hole diameters of φ 38mm and φ 50mm respectively.

● Temperature controller:

① Temperature control range: (room temperature~400) ℃ can be set arbitrarily.

② Temperature control accuracy: ± 0.5 ℃

③ Temperature display mode: LED digital display

● Number of test holes: double holes

● Dimensions: 760 × 430 × 500mm

● Instrument weight: 28kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
