Lubricant Drop Point Tester ASTMD566 Double Hole Drip Hole Ø28mm Oil Bath

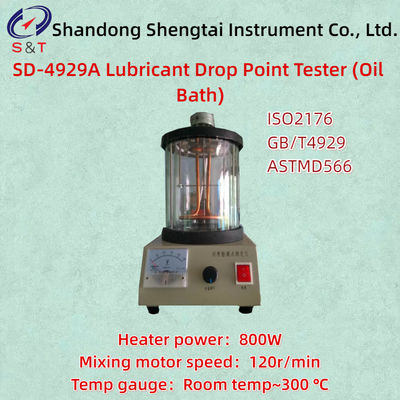

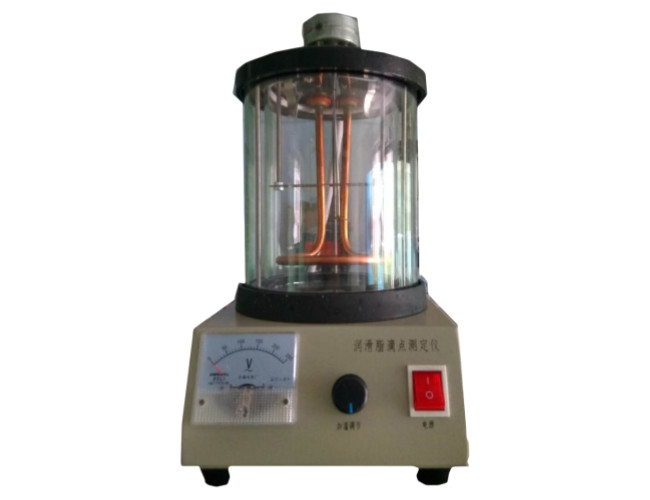

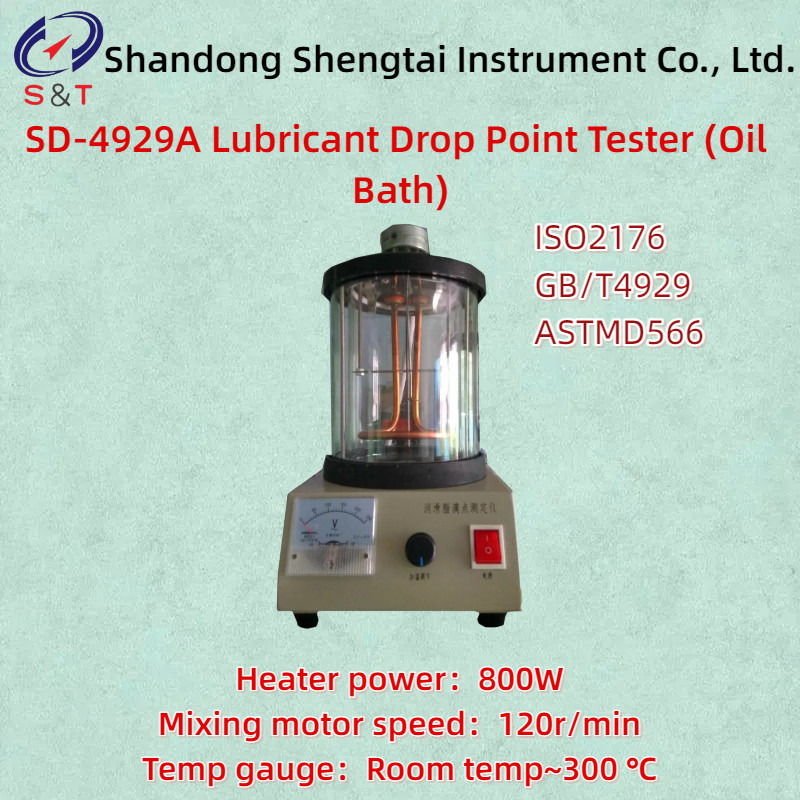

SD-4929A Lubricant Drop Point Tester (Oil Bath)

The SD4929A lubricant drop point measuring instrument is designed and manufactured according to the requirements of the Chinese standard GB/T 4929 "Method for Measuring the Drop Point of Lubricating Greases", and is suitable for measuring the drop point of lubricating grease according to the test method specified in GB/T4929 standard.

Purpose: This instrument is suitable for measuring the drop point of lubricating grease according to GB/T4929, ISO2176, ASTMD566, TP31, and the "Method for Determining the Drop Point of Lubricating Greases".

Drip point refers to the lowest temperature at which lubricating grease melts and begins to drip, and is one of the important indicators of lubricating grease

Technical performance:

● Inner diameter of grease cup: Φ 9.92mm

● Fat cup height: 12mm

● Drip hole: Ø 28mm

● Test tube: inner diameter Φ 11.1~12.7mm

● Work unit: Double hole

● Temperature gauge: Room temperature~300 ℃

● Temperature gauge division: 1 ℃

● The measuring range of the instrument is up to 270 ℃

● Oil cylinder: 600ml beaker capacity

● Heater: power of 800W

● Mixing motor: speed 120r/min

● Temperature regulation method: stepless solid-state regulator for temperature regulation

● Power supply: 220V 50Hz

● Instrument size: 300 * 360 * 500

● Weight: 10kg

● Customer provided: Heating medium (silicone oil)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
