SD3536 Semi-Automatic Open Flash Point Tester ASTM D92 Room Temp～400 ℃ Scale Division 2℃

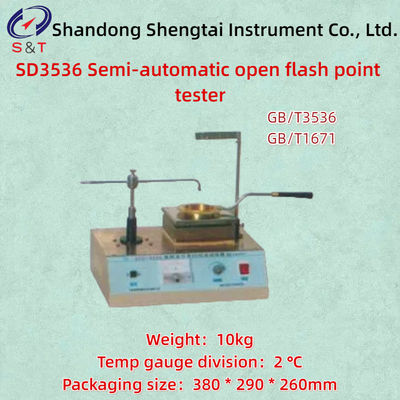

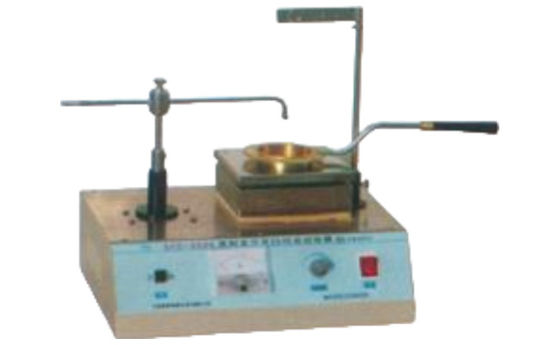

SD3536 Semi-automatic open flash point tester

The SD3536 semi-automatic open flash point tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T3536-2008 "Determination of Flash Point and Ignition Point of Petroleum Products - Cleveland Open Cup Method". It is suitable for determining the flash point and ignition point of petroleum products except for fuel oil and petroleum products with an open flash point not lower than 79 ℃, and also supports the determination of flash point of plasticizers in GB/T1671-2008.

The open flash point is applicable for determining the flash point and ignition point of petroleum products, except for fuel oil and petroleum products with an open flash point not lower than 79 ℃

Main technical parameters and indicators

● Working power supply: AC 220V ± 10%, 50Hz

● Heating device: electric furnace heating, no open flame, explosion-proof, power 0-600W continuously adjustable.

● Scanning device: automatic scanning.

● Temperature gauge: Room temperature~400 ℃, division 2 ℃, technical conditions comply with the technical requirements of GB/T514 for liquid thermometers used in petroleum product testing.

● Ignition device: ⑴ Ignition source: Gas (or other civilian combustible gas, the same below)

⑵ Nozzle aperture: 0.6-0.8 millimeters.

● Environmental temperature: -10 ℃～ 50 ℃.

● Relative humidity: ≤ 85%.

● Power consumption of the whole machine: ≤ 650W.

● Packaging size: 380 * 290 * 260mm

● Weight: 10kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Customers need to bring their own: gas source and pressure reducing valve required for the gas source

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
