Manual Grease Cone Penetration Tester ASTM D217 Time Error ＜± 0.1s Lift Stroke 0-70mm

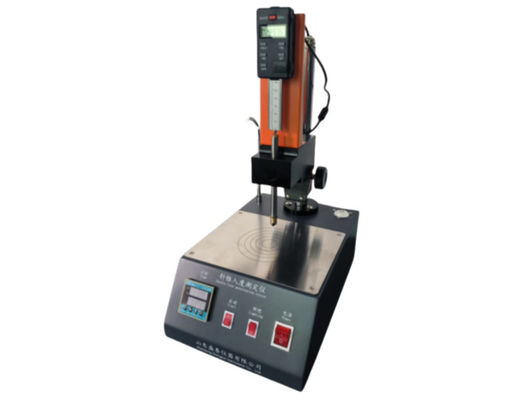

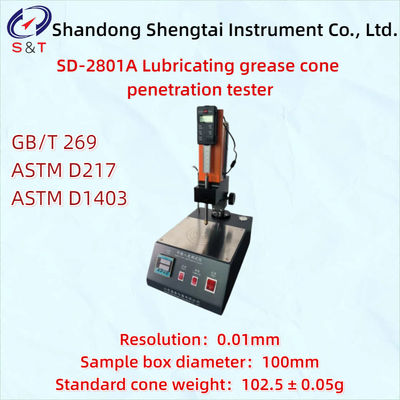

SD-2801A Lubricating grease cone penetration tester

The SD-2801A cone penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of the Chinese standard GB/T269 "Method for Measuring Cone Penetration of Lubricating Greases and Stone Greases"

Main technical performance characteristics

● Compliant with standard: GB/T 269 ASTM D217 ASTM D1403

● Use a digital display to show the cone penetration value, which is intuitive and eye-catching

● Digital display of cone entry timing control device

● It has coarse and fine adjustment functions for the lifting frame, easy to adjust, and accurate needle alignment

● Measurement range: 0-700 cone penetration

● Cone entry time control device: The time can be set arbitrarily according to one's own needs, with a time error of less than ± 0.1 seconds

● Resolution: 0.01mm

● Cone penetration accuracy: ± 1 cone penetration degree

● Experiment time can be set arbitrarily

● The needle bar assembly can be adjusted up and down within 0-70mm by adjusting the knob

● Standard cone: 102.5 ± 0.05g, sample box diameter 100mm, height ≥ 65, in compliance with the specifications of national standard GB/T269

● Lifting bracket: a dual lifting and adjusting mechanism for coarse and fine adjustment, making it easy for the needle tip to align with the sample plane;

● Other: Equipped with a cold light source for easy use and operation.

● Working power supply: 80W

● Instrument size: 325 * 220 * 510mm

● Instrument weight: 7.4kg

● Packaging size: 460 * 350 * 550mm

● Packaging weight: 12.3kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

Note: According to GB/T269 cone penetration testing, the general situation is as follows:

● Ordinary cone penetration testing is generally carried out using the SD2801A cone penetration tester, which detects the non working cone penetration value.

● Constant temperature cone penetration testing: It requires high precision and strict testing according to standards. The SD2801C constant temperature cone penetration tester is needed for testing. This model is equipped with a temperature control device, which can raise the temperature to 25 degrees in winter and lower it to 25 degrees in summer. Perform cone penetration detection after uniform temperature control, and the detected cone penetration value is the non working cone penetration value

● 60 working cone penetration and extended working cone penetration tests: generally require the use of SD2801A in conjunction with SH269 100000 shear testing machine. If high temperature requirements are required, the experiment can be conducted at a constant temperature of 25 degrees, and SD2801C can be used in conjunction with SH269 100000 shear testing machine. The measured values are 60 working cone penetration values and extended working cone penetration values.

● The above are several commonly used situations for detecting cone penetration, which can be selected according to the situation.
