Petroleum Pour Point Analyzer ASTM D97 Compressor Refrigeration Range RT～－25℃

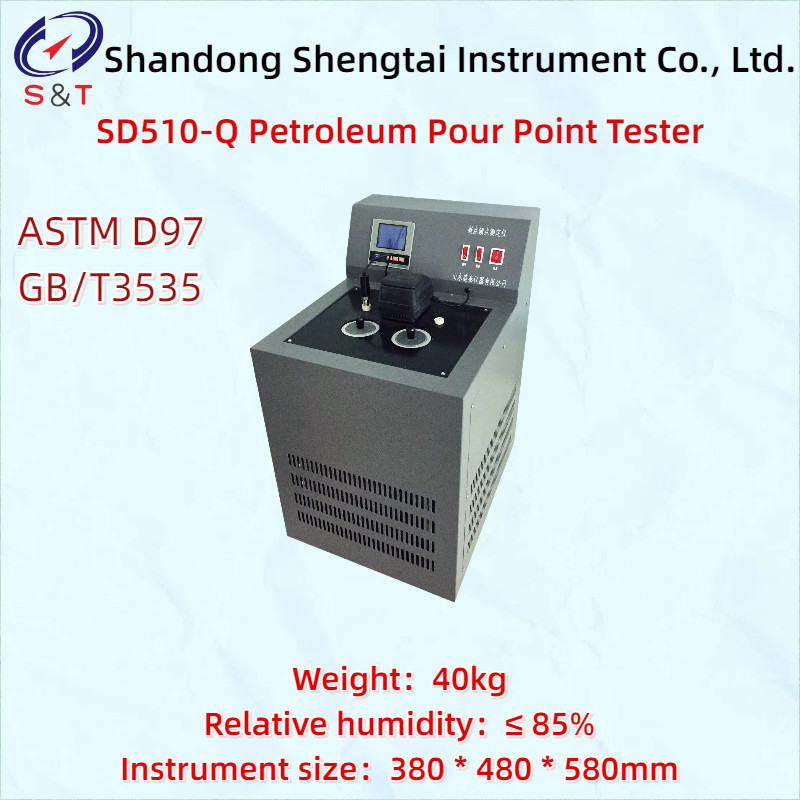

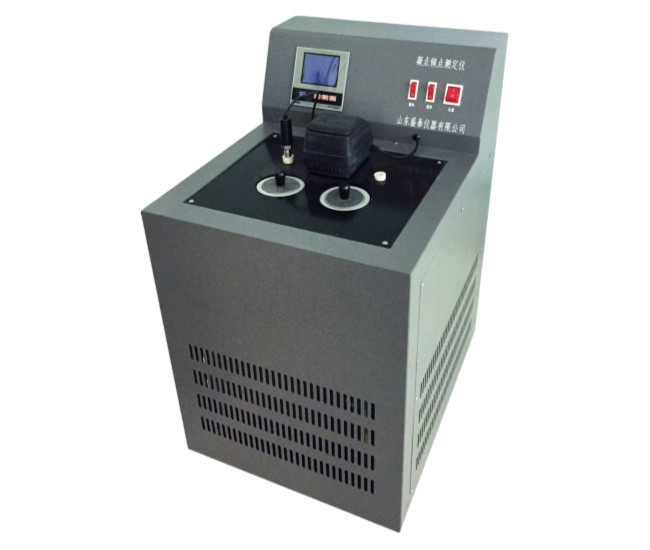

SD510-Q Petroleum Pour Point Tester

The SD510-Q pour point meter is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T3535, and is suitable for determining the pour point of sample products using the methods specified in the above standards.

Pour point refers to the lowest temperature at which a cooled sample of an oil product can flow under specified test conditions; Expressed in ℃.

Performance characteristics

● The instrument adopts compressor refrigeration, which has fast cooling speed and long service life.

● The display mode adopts a small LCD display, which has good temperature control stability.

● Can conduct 2 sets of experiments simultaneously, with a single slot and 2 holes, and a fast cooling rate.

● Equipped with pour point test tubes to measure the pour point value of oil products.

● The pour point test tube is a single-layer glass test tube with a metal sleeve

● During tilt point detection, it is necessary to manually tilt it 90 degrees

Main technical specifications and parameters

● Working power supply: AC220V ± 10% 50Hz

● Cold bath temperature control: RT～－40℃

● Tilt point measurement range: RT～－25℃

● Refrigeration system: new type of refrigeration compressor

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption: ≤ 1000W

● Instrument size: 380 * 480 * 580mm

● Weight: 40kg

● Self provided consumables required: alcohol.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

SD510-Q petroleum pour point analyzer; Equipped with pour point test tube and pour point thermometer, in compliance with GB/T3535

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
