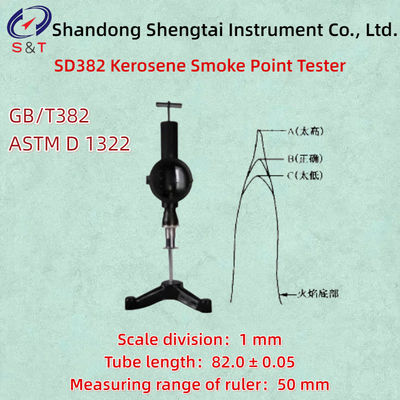

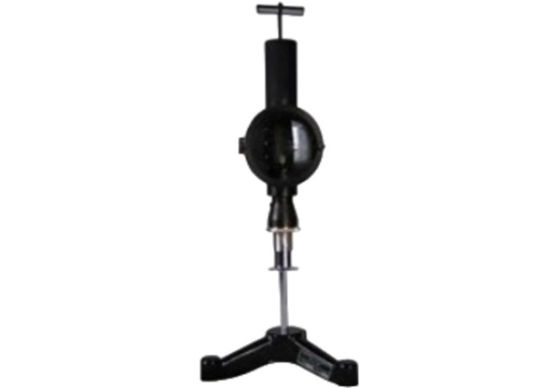

SD382 Kerosene Smoke Point Tester

The SD382 kerosene smoke point tester is designed and manufactured according to the standard GB/T382-83 (91) "Coal Oil Fume Point Determination Method".

The smoke point wick of kerosene and jet fuel complies with GB/T382-2017<<Determination of smoke point of kerosene and jet fuel>>, ASTM D 1322-08 standard, ASTM D1322 standard test method for smoke point of kerosene and aviation turbine fuel, used to determine the smoke point of kerosene and jet fuel for lamps.

Smoke point, also known as smokeless flame height, refers to the maximum height of a smokeless flame when a sample burns in a standard lamp under specified conditions, expressed in millimeters (mm). The sample oil burns inside the standard lamp, and the change in flame height is reflected on the millimeter scale background. When measuring, raise the wick to the point where a smoke flame appears, and then lower it to the point where the smoke tail has just disappeared. The height of the flame at this point is the smoke point of the sample.

Functional Features Technical Parameters

● The kerosene smoke point tester adopts a millimeter scale background, which can clearly read the data.

● The entire instrument has a compact and complete structure.

● The kerosene smoke point tester adopts a plug-in structure, making it more convenient to replace the wick.

● The kerosene smoke point tester adopts a specially designed glass observation window, which is easy to operate.

● The kerosene smoke point tester is easy to operate and has high repeatability in the measurement results.

● Ruler: The ruler should be marked with a white mark on black glass, with a white or black stripe at the center of 2 millimeters vertically dividing the ruler into two equal parts. The measuring range of the ruler should be 50 millimeters, with a division of 1 millimeter. Mark numbers every 10 millimeters and use longer lines every 5 millimeters.

● Core conduit: The top of the core conduit should be precisely at the same level as the zero point on the scale.

● Lift seat: The total travel distance should not be less than 10 millimeters, and the movement should be smooth and uniform.

● Oil storage container: The oil storage container is mainly composed of an oil storage container body, a wick tube, and an air duct. Its critical dimensions comply with GB/T382, and the inner diameter of the oil storage container body is Ø 21.25 ± 0.05, with a length of 109.0 ± 0.05; The inner diameter of the wick tube is 4.7 ± 0.05, and the length of the wick tube is 82.0 ± 0.05; The inner diameter size of the air duct is 3.5 ± 0.05, and the length of the air duct is 90.0 ± 0.05

● Packaging size: 340 * 282 * 515mm

● Weight: 7.8 kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
