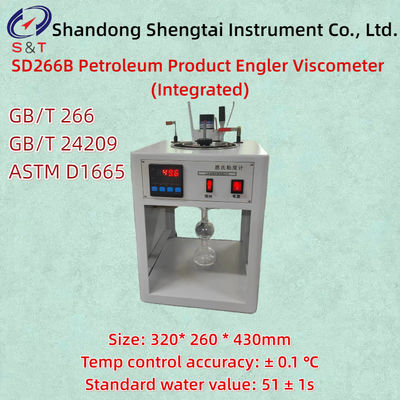

SD266B Petroleum Product Engler Viscometer ASTM D1665 PID Temp Control Desktop Computer

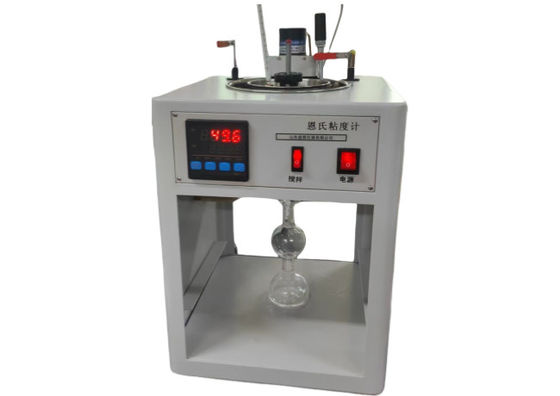

SD266B Petroleum Product Engler Viscometer Integrated

The SD266B petroleum product En's viscosity meter is designed and manufactured in accordance with the requirements of the Chinese standards GB/T 266 "Determination of En's viscosity of petroleum products" and GB/T24209.

Engler viscosity is used to determine the ratio of the time (in seconds) it takes for a liquid to flow out of an Engler viscometer at a certain temperature and volume to the time (in seconds) it takes for distilled water to flow out at 20 ° C, which is the Engler viscosity of the liquid, measured in Engler degrees.

Technical parameter characteristics

● This instrument is desktop and its smoothness meets the requirements of the test.

● The temperature controller adopts a digital temperature controller with P, I, and D position adjustment functions, which has high temperature control accuracy.

● Working power supply: AC220V ± 10% 50HZ

● Standard water value: 51 ± 1s

● Temp measurement: Room temp~100 ℃ or 10-100 ℃ (optional refrigeration)

● Temp control accuracy: ± 0.1 ℃

● Enns viscosity thermometer: in accordance with GB514 standard and GB/T 24209-2009 method for determining wash oil viscosity

● Inner pot: stainless steel material

● Measuring bottle specification: 200 ± 0.2ml

● Time measurement: max 999.9s

● Size: 320* 260 * 430mm

● Weight: 12kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

ZL-266A Enn viscosity refrigeration cycle device (optional)

The Enns viscosity refrigeration cycle device is a universal series of products based on compressor refrigeration to achieve low-temperature and constant temperature control of small container liquid tanks. The instrument adopts high-precision acquisition circuit and achieves high-precision stable temperature control through PID control algorithm.

Technical Parameter

Measurement range: 10-40 ℃

Display accuracy: 0.1 ℃

Refrigeration method: Compressor refrigeration

Whole machine power: 500W

Instrument weight: 10kg

External volume: 380 * 230 * 340mm

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Product packing list
