SD265F Low Temperature Kinematic Viscosity Tester ASTM D445 Range -40～80 ℃ 2 holes

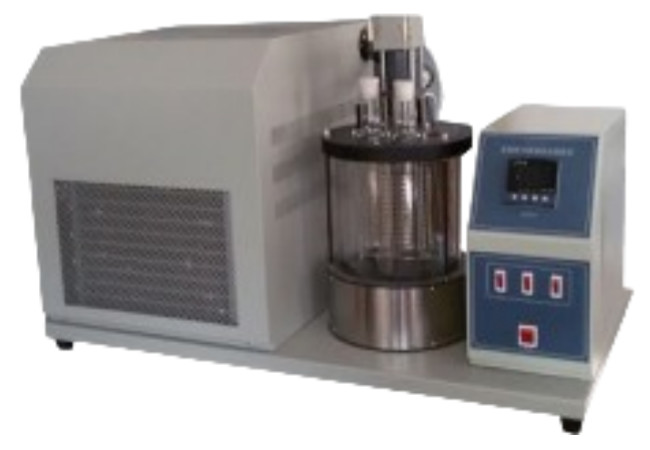

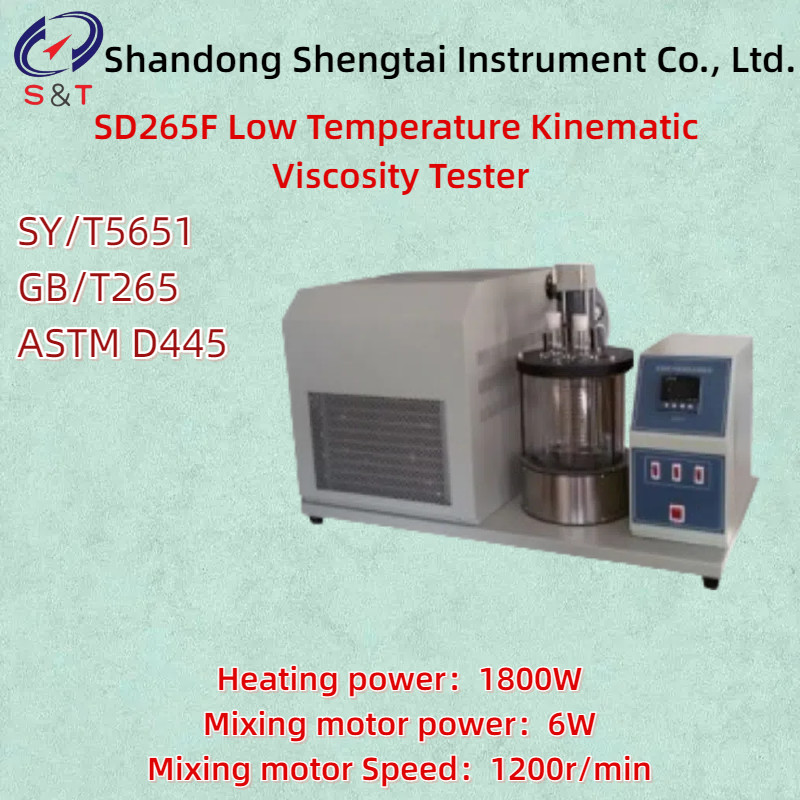

SD265F Low Temperature Kinematic Viscosity Tester

The SD265F low-temperature kinematic viscosity tester is manufactured in accordance with the requirements specified in the industry standard SY/T5561 "Technical Conditions for Kinematic Viscosity Testers of Petroleum Products" of the People's Republic of China. It is suitable for measuring the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) under a constant temperature condition in accordance with the provisions of the Chinese standard GB/T265 "Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity of Petroleum Products".

Low temperature viscometer is used to measure the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) under a constant temperature condition.

Main technical features and parameters

● Adopting a low-temperature dedicated glass cylinder with good insulation performance and clear observation of the sample.

● Adopting desktop and all-in-one design, the instrument has good overall integrity.

● Using an electric stirring device, the temperature inside the bathtub is uniform

● Working power supply: AC 220V ± 10%, 50Hz

● Heating power: 1800W (temperature controlled heating)

● Mixing motor power:6W

● Mixing motor Speed:1200r/min

● Temperature measurement range: -40-80 ℃, 2 holes

● Temperature control accuracy: ± 0.1 ℃

● Cooling method: Compressor cooling

● Relative humidity: <85%

● Size: 780 * 450 * 630mm

● Weight: 60kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Select the aperture of the viscosity tube based on the viscosity value

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
