ASTM D445 Petroleum Kinematic Viscosity Meter Fuel-Oil CCD RT ±10℃~100 ℃

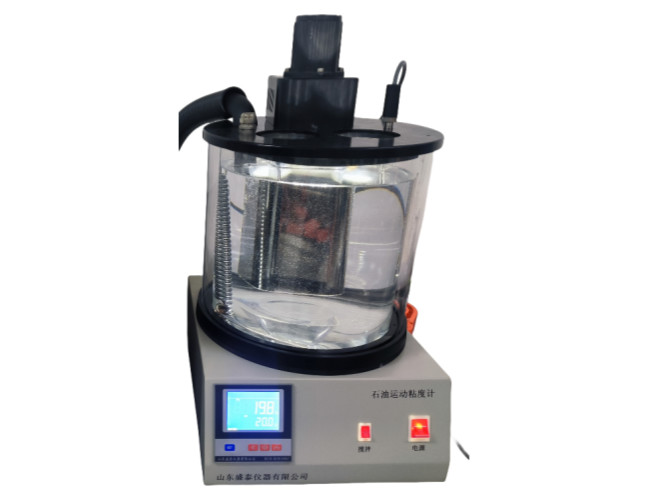

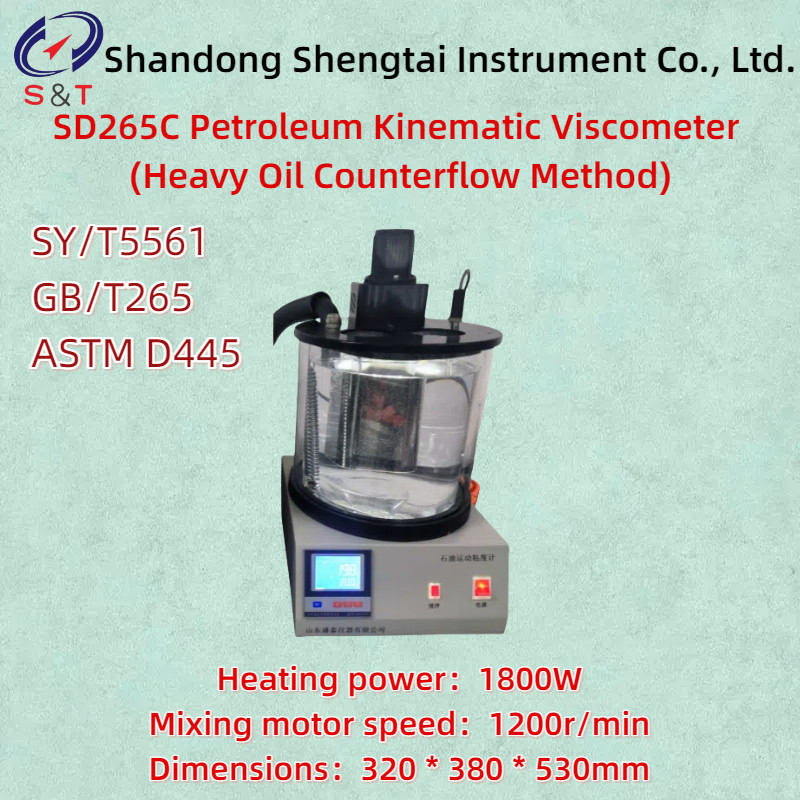

SD265C Petroleum Kinematic Viscometer (Heavy Oil Counterflow Method)

The manufacturing of SD265C petroleum countercurrent viscosity tester complies with the requirements specified in the industry standard SY/T5561 "Technical Conditions for Petroleum Product Kinematic Viscosity Tester" of the People's Republic of China, and is suitable for measuring the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) under a constant temperature condition according to the provisions of the Chinese standard GB/T265 "Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity of Petroleum Products".

Method Summary

Measure the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer (counter current viscometer) under the action of gravity to determine the kinematic viscosity of dark petroleum products. The dynamic viscosity of a liquid can be obtained by multiplying the measured kinematic viscosity with its density.

Main technical features

● Adopting a hard glass cylinder with good insulation performance and clear observation of the sample.

● Adopting a desktop and all-in-one design, the instrument has good overall integrity and is easy to use, allowing for the simultaneous conduct of two experiments.

● Using an electric stirring device, the temperature inside the bathtub is uniform

● The display mode adopts a small blue LCD display with good temperature control stability

● Working power supply: AC 220V ± 10%, 50Hz

● Heating power: 1800W (temperature controlled heating)

● Mixing motor power: 6W

● Mixing motor speed: 1200r/min

● Temperature measurement range: Room temperature ± 10 ℃~100 ℃

● Temperature control accuracy: ± 0.1 ℃

● Thermostatic bath: High temperature resistant glass cylinder

● Environmental temperature: -10 ℃ to+35 ℃

● Relative humidity:<85%

● Temperature sensor: high-precision resistor

● Dimensions: 320 * 380 * 530mm

● Weight: 12kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Need to bring your own heating medium and stopwatch

Choose viscosity tube specifications based on different viscosity ranges

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
