Speed 1200r/Min Petroleum Kinematic Viscometer ASTM D445 Semi-Automatic Room Temp+10 ℃～100℃

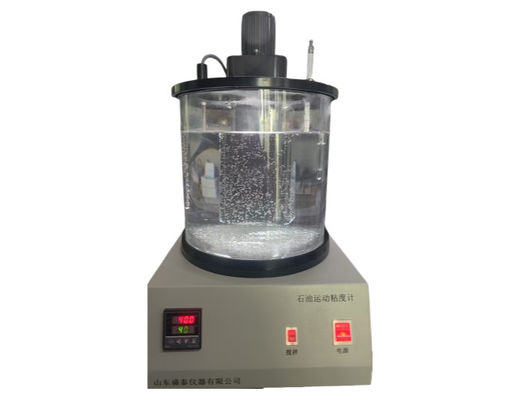

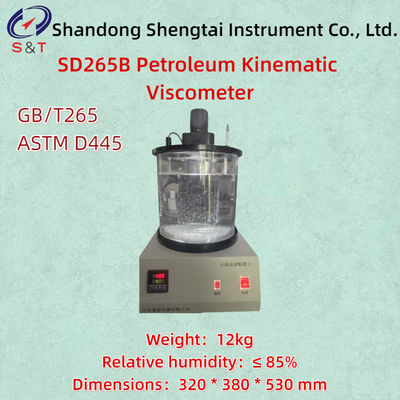

SD265B Petroleum Kinematic Viscometer

The manufacturing of SD265B petroleum kinematic viscosity tester complies with the requirements specified in the industry standard SY/T5561 "Technical Conditions for Petroleum Product Kinematic Viscosity Testers" of the People's Republic of China, and is applicable to the provisions of the Chinese standard GB/T265 "Determination of Petroleum Product Kinematic Viscosity and Algorithm for Dynamic Viscometers".

Kinematic viscosity is used to determine the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) at a constant temperature condition

Main technical features and parameters

● This instrument adopts the form of an all-in-one machine, and the control switch adopts the form of buttons. It has a novel design, compact structure, and beautiful appearance.

● Adopting an intelligent digital temperature controller, the temperature control is fast, the response is fast, the overshoot is small, and the temperature control accuracy reaches ± 0.1 ℃.

● Using a hard glass cylinder and an electric mixing device, the sample can be observed clearly and the temperature inside the bathtub is uniform.

● Two sets of experiments can be conducted simultaneously.

● Working power supply: AC 220 ± 10%, 50Hz

● Heating device: electric heating, power 1800W

● Mixing motor: power 6W, speed 1200r/min

● Temperature control range: The temperature can be set freely within the range of room temperature+10 ℃ to 100 ℃

● Temperature control accuracy: ± 0.1 ℃

● Environmental temperature: Room temperature~35 ℃ (this product is generally used to measure viscosity at 40 degrees)

● Relative humidity: ≤ 85%

● Dimensions: 320 * 380 * 530 mm

● Weight: 12kg

● Packaging size: 470 * 420 * 620 mm

● Packaging weight: 16.2kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

If measuring viscosity at 100 degrees Celsius, it is necessary to prepare a heating medium and a stopwatch

Packing list

Select the aperture of the viscosity tube based on the viscosity value
