Fully Automatic Aniline Point Tester ASTM D611 Petroleum Products Cooling Rate 1 ℃/Min~2 ℃/Min

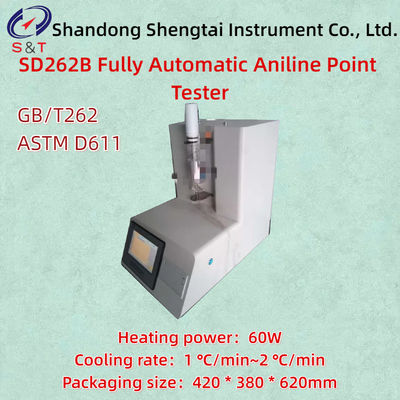

SD262B Fully Automatic Aniline Point Tester

The SD262B fully automatic aniline point analyzer is designed and manufactured according to the requirements of the national standard GB/T262-2010 "Determination of Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents" and ASTM D611. The minimum temperature required for petroleum products and an equal volume of aniline to dissolve into a single liquid phase is called the aniline point.

Aniline point: The minimum temperature required for petroleum products and an equal volume of aniline to dissolve into a single liquid phase.

Performance characteristics and technical parameters:

● 7-inch color LCD touch screen, stylish and beautiful. Chinese human-machine dialogue interface, clear and intuitive.

● Using imported photoelectric sensors from abroad, the test results are accurate and consistent in repeatability.

● Equipped with over temperature alarm function, if the sample temperature exceeds 170 ℃ during the test, the buzzer will automatically sound an alarm and stop the test.

● Easy to operate, one click start, and the entire testing process is automatically completed.

● The host is controlled by a microprocessor program, and the experimental process automatically heats up, stirs, identifies and stores aniline points

● Working mode: automatic photoelectric detection, microcontroller control

● Automatic printing, automatic shutdown at the end of the experiment.

● The experimental results can be exported through a USB flash drive and stored on a computer for multiple experiments and comparisons

● Temperature control range: room temperature~200 ℃

● Temperature control accuracy: ± 0.1 ℃

● Temperature detection: PT100 platinum resistance temperature sensor

● Heating method: electric heating rod

● Heating power: 60W

● Mixing method: Motor driven soft shaft mixing

● Cooling rate: 1 ℃/min~2 ℃/min

● Detection method: photoelectric sensor

● Storage records: 200 records

● Printing method: Micro printer

● Working power supply: AC 220V ± 10% 50HZ

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Display time temperature curve diagram

● Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

● Data Management: Can be connected to the Limis system (optional)

● Packaging size: 420 * 380 * 620mm

● Net weight: 15 kilograms, gross weight: 19 kilograms

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
