70ml Sample Manual Closed Flash Point Tester ASTM D93 Heating Rate 1-12 ℃/Min

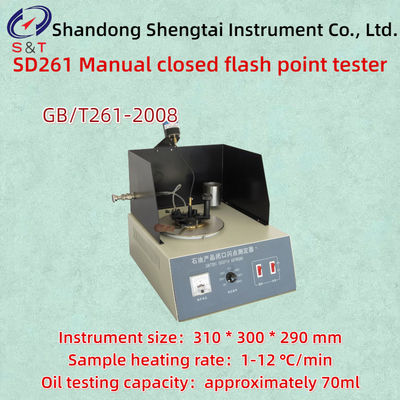

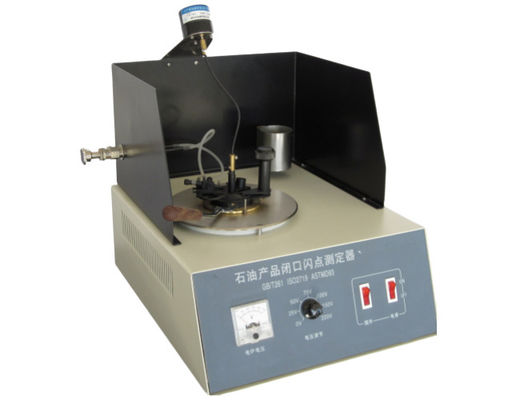

SD261 Manual closed flash point tester

The SD261 closed flash point tester is designed and manufactured in accordance with the requirements specified in the national standard GB/T 261-2008 "Determination of Flash Point - Binsky Martin Closed Cup Method" of the People's Republic of China. It is suitable for determining the closed cup flash point of petroleum product samples with a flash point higher than 40 ℃ using the method specified in GB/T 261-2008.

The result measured by a prescribed closed flash point tester is called the closed flash point, expressed in ℃. Commonly used to determine the flash point values of products such as thermal oil, diesel, transformer oil, and cold pressed oil.

Main technical features

● The design of this instrument fully complies with the requirements of GB/T261-2008 standard.

● The heating power is continuously and infinitely adjustable.

● Working power supply: AC 220V ± 10% 50Hz

● Heating device: The heating power can be continuously adjusted from 0 to 600W.

● Sample heating rate: 1-12 ℃/min.

● Windproof device: windproof cover with standard requirements

● Standard oil cup: inner diameter: 50.7-50.8 millimeters.

● Depth: 55.7-56.0 millimeters.

● The depth of the oil testing capacity marking line is 33.9-34.3 millimeters.

● Oil testing capacity: approximately 70 milliliters.

● Ignition device: ⑴ Ignition source: Gas (or other civilian combustible gas, the same below).

⑵ Igniter aperture: 0.8 millimeters.

● Temperature gauge: Rod type mercury thermometer, in accordance with the requirements of GB/T 261-2008 standard.

● Instrument size: 310 * 300 * 290 mm

● Instrument weight: 6 kg

● Packaging size: 470 * 410 * 460 mm

● Packaging weight: 13kg wooden crate

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
