Set Temp ± 1℃ Vacuum Distillation Distillation Range Tester SH/T0165-92 Rate 14.4L/H

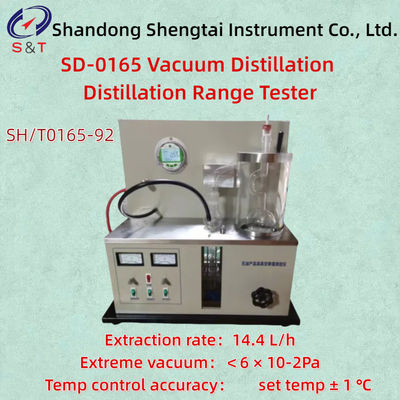

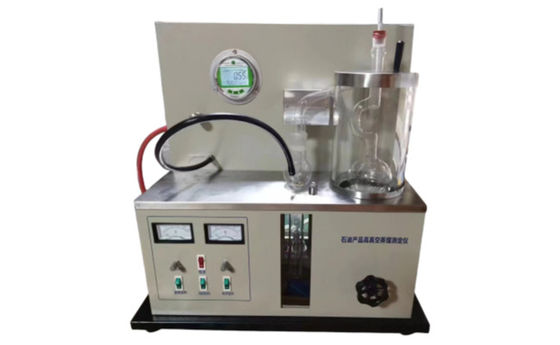

SD-0165 Vacuum Distillation Distillation Range Tester

The SD-0165 vacuum distillation range analyzer is designed and manufactured according to the requirements of the industry standard SH/T0165-92 "High Boiling Point Range Petroleum Product High Vacuum Distillation Determination Method" of the People's Republic of China. It is suitable for determining the distillation range of high boiling point range petroleum products such as wax oil and lubricating oil.

Reduced pressure distillation range: The temperature range in which petroleum products are evaporated under specified conditions, represented by their initial boiling point and final boiling point (converted to atmospheric pressure).

Technical parameters and characteristics

● Heating power: Distillation flask heater: 1000W, receiver cylinder heater: 350W

● Distillation flask heating furnace power: 0-1000W continuously adjustable

● Temperature control point for the air bath of the measuring cylinder: continuously adjustable from room temperature to 100 ℃

● Air bath temperature sensor: Pt100 platinum resistor

● Air bath temperature control method: digital temperature control meter for automatic temperature control

● Temperature control accuracy: set temperature ± 1 ℃

● Extraction rate: 14.4 liters per hour

● Extreme vacuum: ＜ 6 × 10-2Pa

● Structural design: A desktop structure consisting of a distillation testing section and a vacuum and pressure reducing section,

● Heating power: continuously adjustable

● Working power supply: AC220V 50Hz

● Working conditions: Environmental temperature: 5-35 ℃

Relative humidity:<85%

● Dimensions: 700 × 520 × 520mm (length × width × height).

● Net weight of the instrument: 59kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
